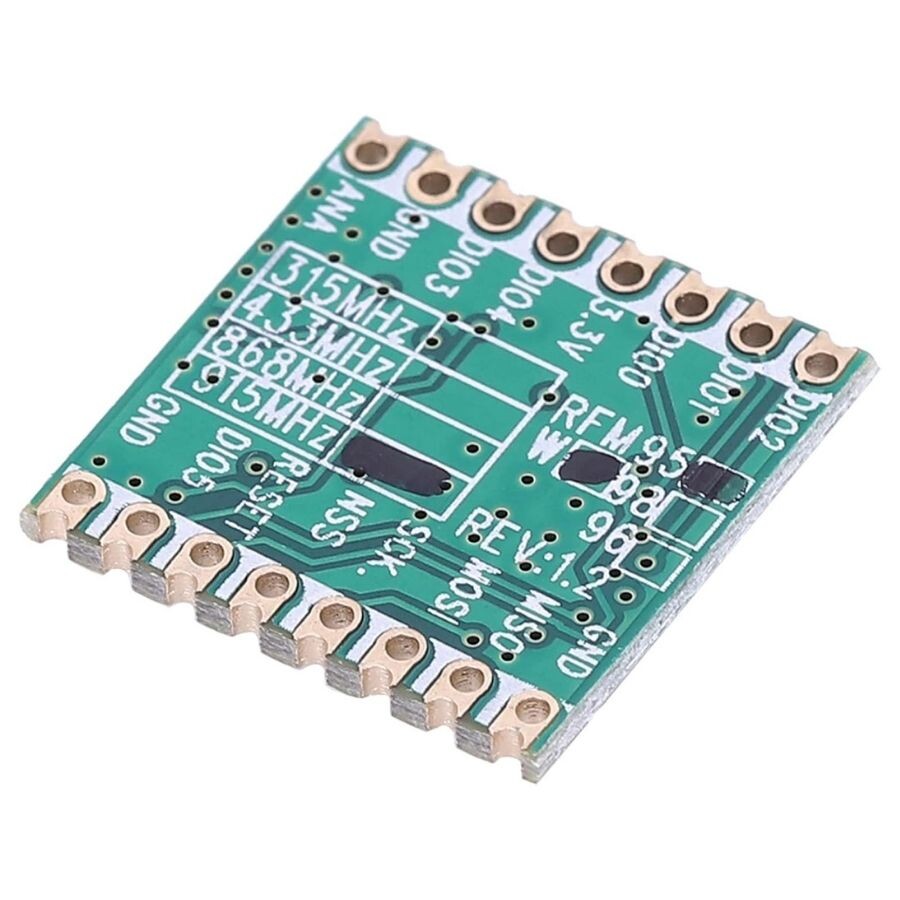

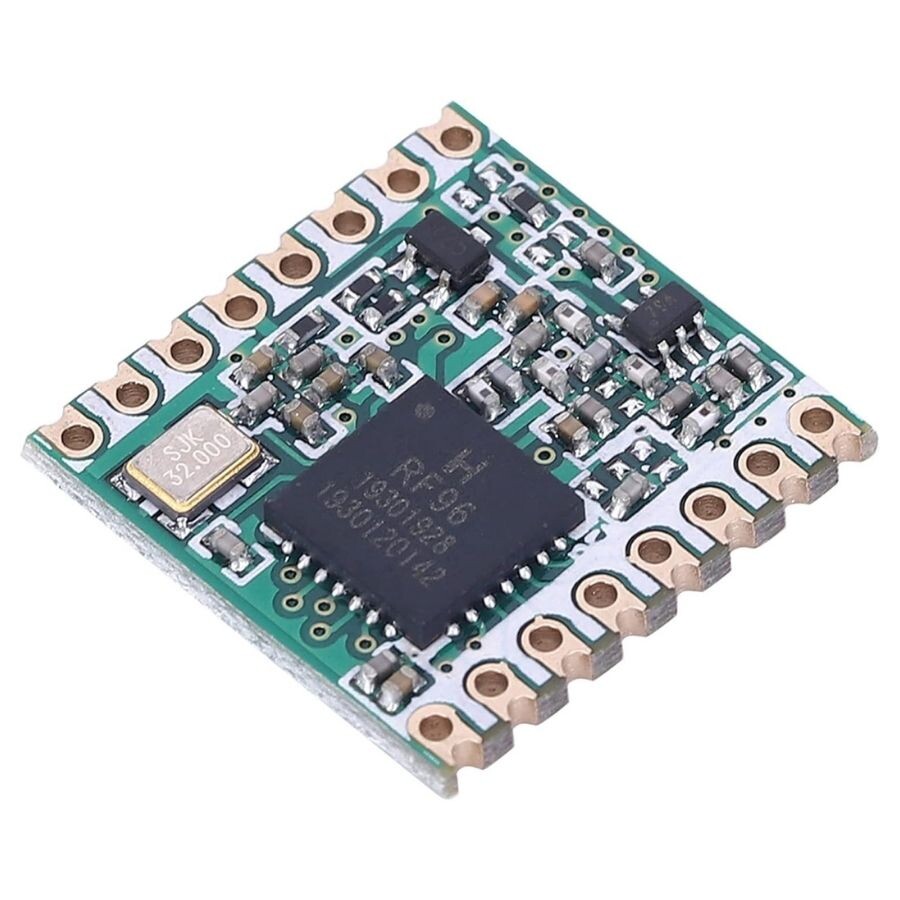

RF96 868MHz Transceiver Module

The RFM95/96/97/98 transceivers feature a LoRaTM long-range modem, providing long-range spread-spectrum communication, high interference immunity, and minimizing current consumption.

Using Hope RF’s patented LoRaTM modulation technique, the RFM95/96/97/98 (W) can achieve sensitivity above -148dBm using a low-cost crystal and bill of materials.

The high sensitivity combined with the integrated +20dBm power amplifier provides industry-leading link budget, making it ideal for any application requiring range or robustness.

LoRaTM is a powerful alternative to traditional modulation techniques. It offers significant advantages in both blocking and selectivity, solving the traditional design tradeoff between range, interference immunity, and power consumption.

• LoRaTM Modem.
• Maximum link budget 168 dB.
• +20 dBm - 100 mW fixed RF output vs. V supply.
• +14 dBm high efficiency PA.
• Programmable bit rate up to 300 kbps.
• High sensitivity: down to -148 dBm.
• Bulletproof front end: IIP3 = -12.5 dBm.
• Excellent blocking immunity.
• Low RX current 10.3 mA, 200 nA logging.
• Fully integrated synthesizer with a resolution of 61 Hz.
• FSK, GFSK, MSK, GMSK, LoRaTM, and OOK modulation.
• Built-in bit synchronizer for clock recovery.
• Pre-heuristic detection.
• 127 dB Dynamic Range RSSI.
• Automatic RF Sense and CAD with ultra-fast AFC.
• Packet engine with CRC up to 256 bytes.
• Built-in temperature sensor and low battery indicator.

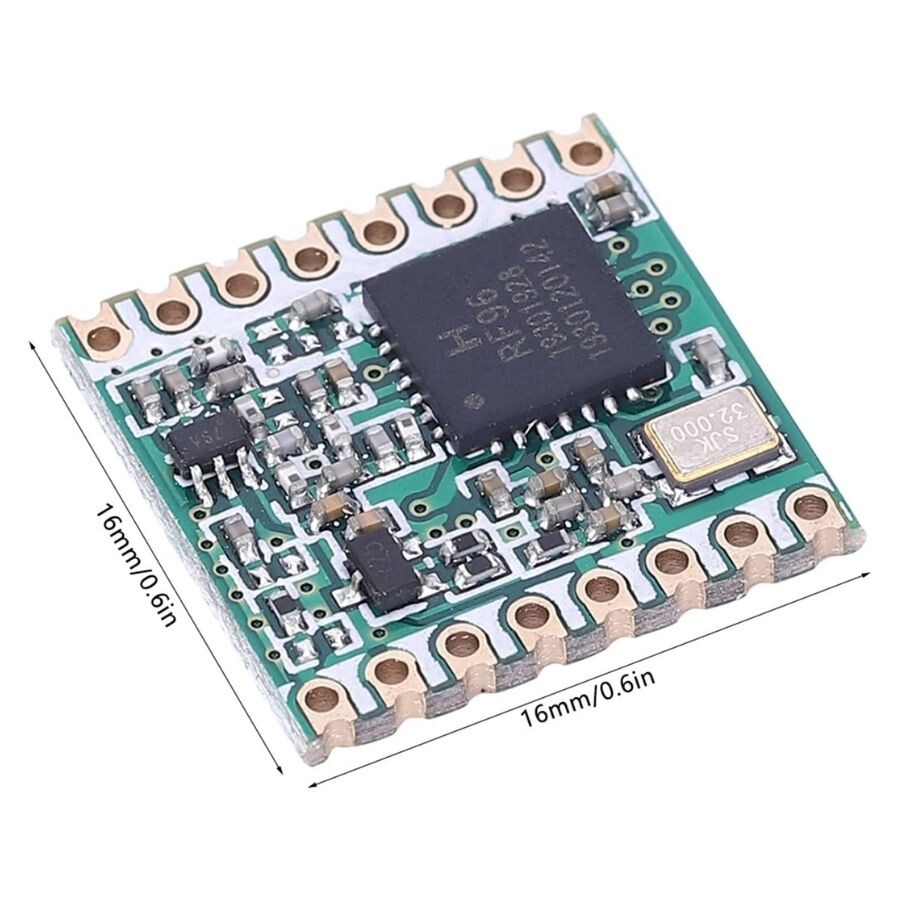

• Module Size: 16 * 16 mm

• Automatic Meter Reading
• Home and Building Automation
• Wireless Alarm and Security Systems
• Industrial Monitoring and Control
• Long-Range Irrigation Systems
