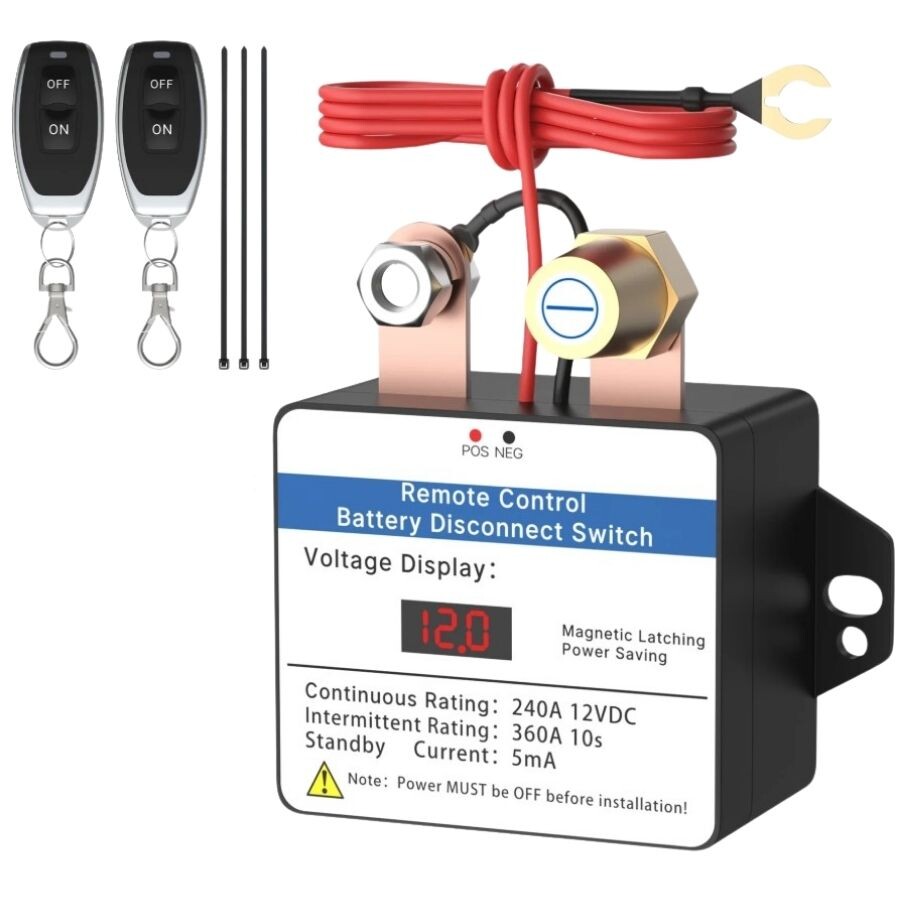

RL-240A-RC 12V 240A Remote-Controlled Battery Disconnect Switch Set with LED Display

RL-240A-RC 12V 240A Remote-Controlled Battery Disconnect Switch Set with LED Display

The RL-240A-RC 12V 240A Remote-Controlled Battery Disconnect Switch Set with LED Display is a high-current battery isolation system designed to remotely connect or disconnect the vehicle battery from the electrical system without requiring physical access to the battery. It is particularly suitable for the remote control of the main battery line in automobiles, RVs, boats, commercial vehicles, and 12V vehicles that remain parked for extended periods.

The product operates on 12V DC systems and features a continuous current rating of 240A, with an intermittent current capacity of 360A for 10 seconds.

Thanks to this high current capacity, it can be used to disconnect and reconnect the main power line in standard vehicle battery systems.

Specifications

• Operating Voltage: 12V DC
• Continuous Current Capacity: 240A
• Intermittent Current Capacity: 360A / 10 seconds
• Control Type: Wireless remote control
• Number of Remote Controls: 2
• Remote Control Range: Up to approximately 100 meters
• LED Voltmeter: Included
• Standby Current: 5 mA / 0.005A
• Relay Type: Magnetic latching relay
• Mounting Pole: Negative battery terminal
• Cable Ties: 3 pieces
