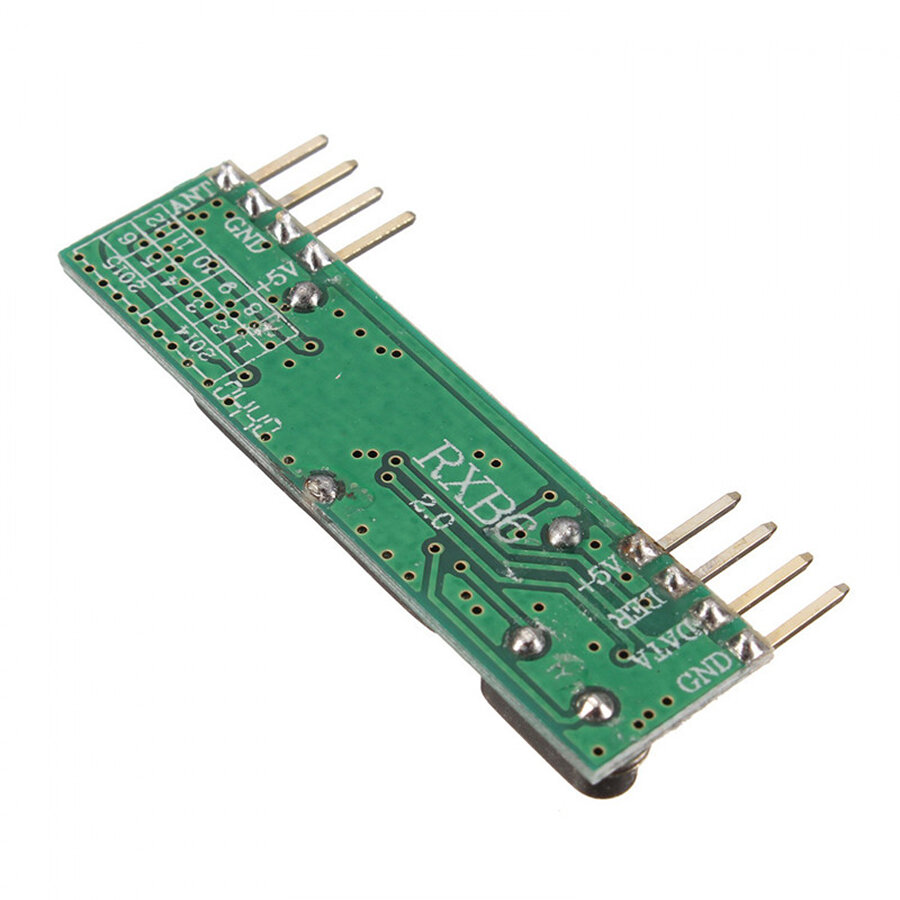

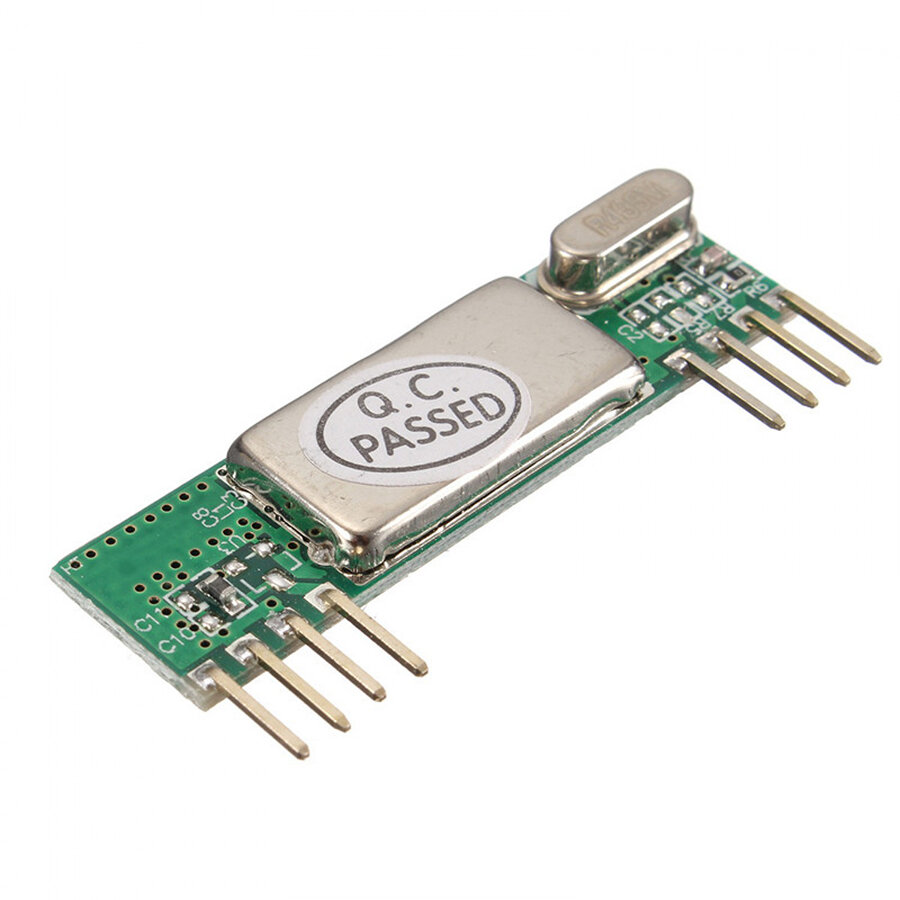

RXB6 433MHz Superheterodyne Wireless Receiver Module

RXB6 433MHz Superheterodyne Wireless Receiver Module

The RXB6 433MHz Superheterodyne Wireless Receiver Module can be easily installed into a circuit and works well with microcontrollers to create a very simple wireless data link. Since they are only receivers, they only perform one-way data communication; Two pairs (at different frequencies) are required for it to work as a transmitter/receiver pair.

Specifications

• Power supply voltage: 3 5.5V
• Operating frequency: 433MHz
• Operating temperature range (C): -40 ~ +85
• Power consumption: 3.3V @ 433.92MHz, 6.0mA
• Receiver sensitivity: Up to -116dBm
• Length (mm): 43
• Width (mm): 17 (with pins)
• Height (mm): 4

Pinout
