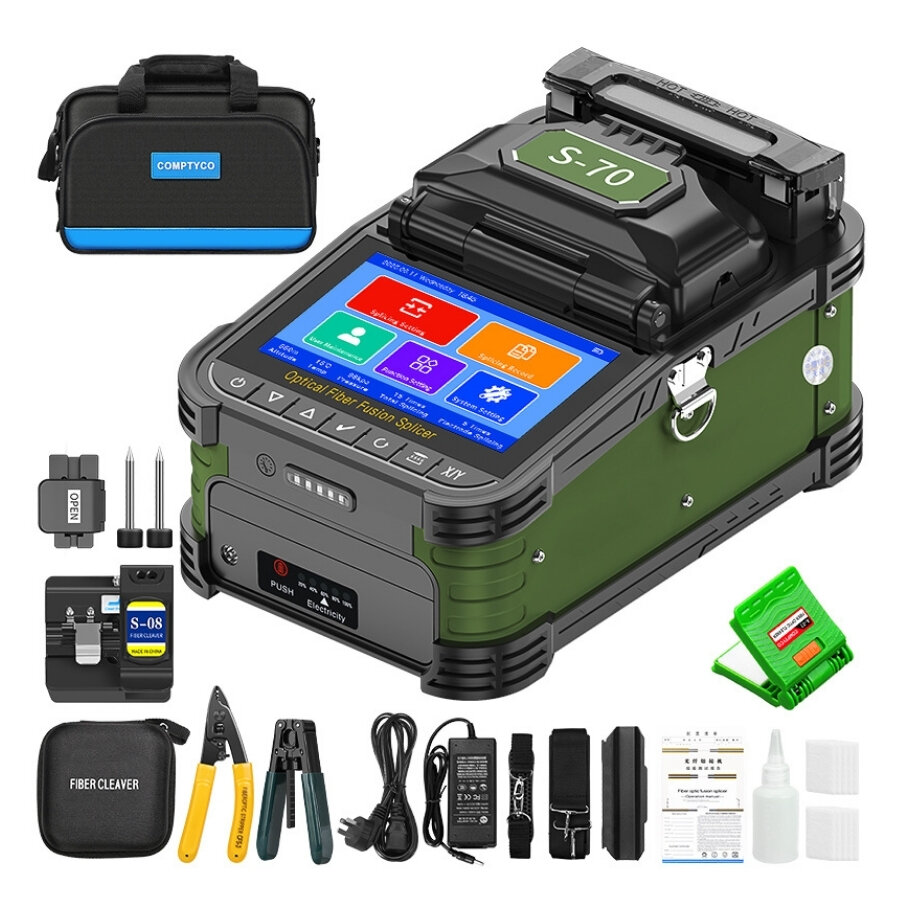

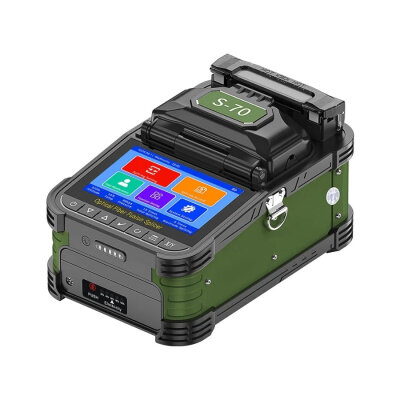

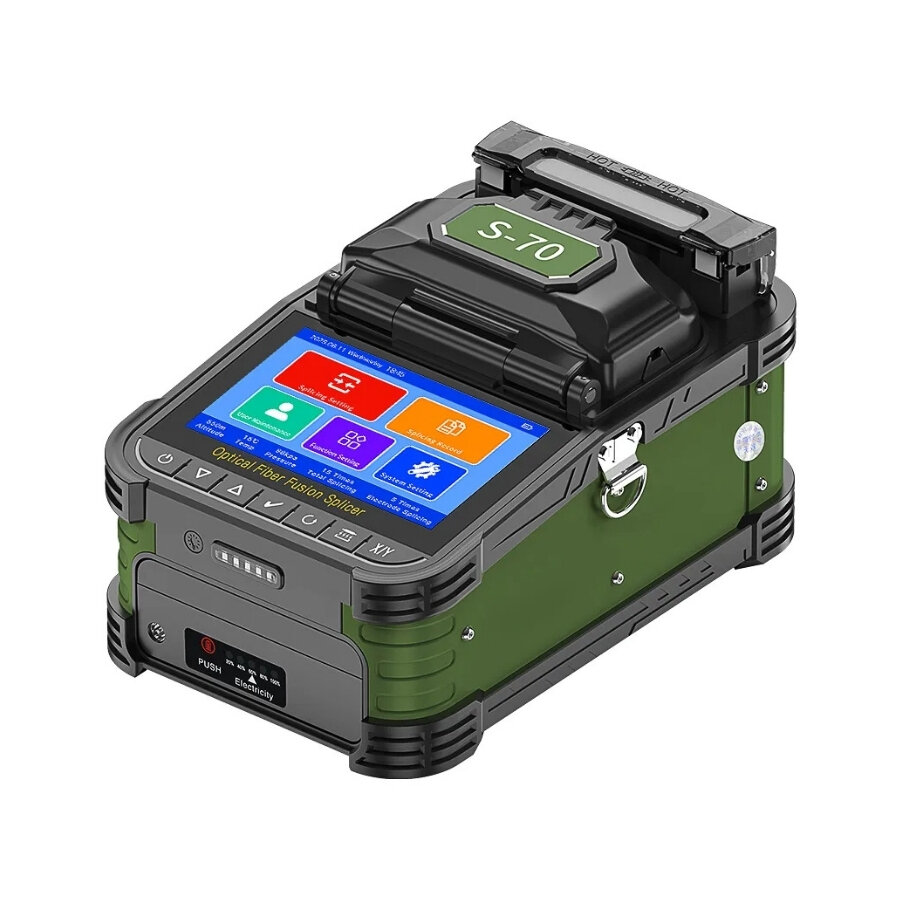

S-70 Fiber Optic Fusion Splicer Machine

S-70 Fiber Optic Fusion Splicer Machine

S-70 Fiber Optic Fusion Splicer Machine is designed for professionals seeking fast processing and reliable performance. It offers maximum efficiency in the field. Thanks to its advanced 6-motor structure and touchscreen, it makes fiber splicing operations easy, fast, and error-free. It has a 5" HD touchscreen.

10 different language options are available. These are; Chinese, English, Russian, French, Thai, Italian, Portuguese, Spanish, Polish and Arabic.

It has a built-in 5200mAh battery. The device has a USB port. This allows you to charge your phone and other devices. It can perform approximately 260 welding/heating operations on a full charge. 8 seconds welding, 18 seconds heating, heating time/temperature is adjustable.

Note: After approximately 3000 uses of the electrode needle, the welding loss will increase, therefore the electrode needle needs to be replaced, otherwise the welding index will be affected.

Technical Specifications

• Suitable Fiber Optics: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655) and customizable fiber types
• Fiber Diameter: Coating layer diameter is 80-150 µm, and the coating layer diameter is 100-1000 µm.
• Splice Loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB (DSF/NZDS)
• Alignment Method: Fiber core, coating
• Focusing Method: 6-motor automatic focusing
• Welding Method: Fully automatic, semi-automatic, manual
• Welding Time: 8s (SMF)
• Tensile Test: 1.96N~2.1N Magnification Factor: 300 times (X-axis/Y-axis) Welding Record: 1000 sets Typical Heating Time: 18s Heating Method: Heating time/temperature adjustable, automatic or manual heating supported. Heat Shrink Tubing: 20-60mm Operating Interface: GUI graphical user interface System Upgrade: USB (Data export, upgrade functions, power output) Electrode Life: 3000 uses Battery Capacity: 5200mAh Power Supply Methods: Built-in lithium battery 11.8V power supply, approximately 3.5 hours charging time.
• External adapter, AC100~240V, 50/60HZ output DC13.5V/4.81A.
• Operating Environment:
  • Temperature: -15-+50 °C
  • Humidity: 90% RH (non-condensing)
  • Altitude: 0-5000 m
  • Wind speed: ≤ 15 m/m
• Dimensions: Length x Width x Height (231 x 153 x 125 mm)
• Device Weight: 1940 g (including battery), 1440 g (without battery) except)
