SC-CMV1-AP10S 10-Pin Elbow Type Locking Waterproof Connector

SC-CMV1-AP10S 10-Pin Elbow Type Locking Waterproof Connector

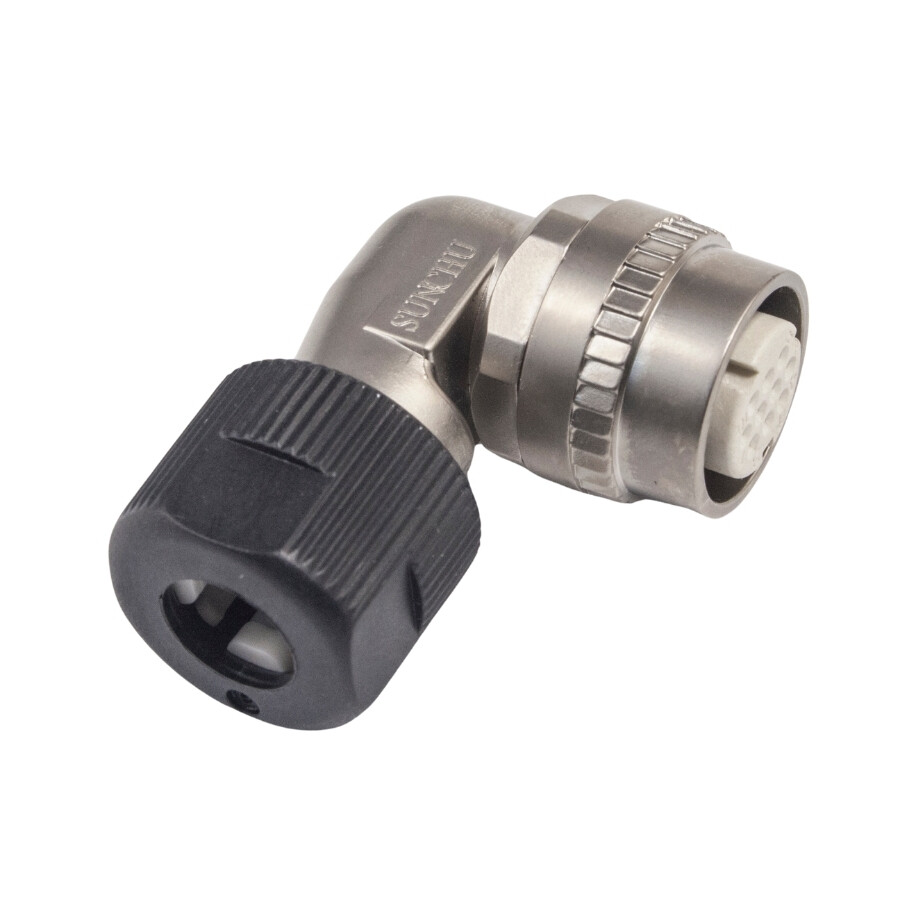

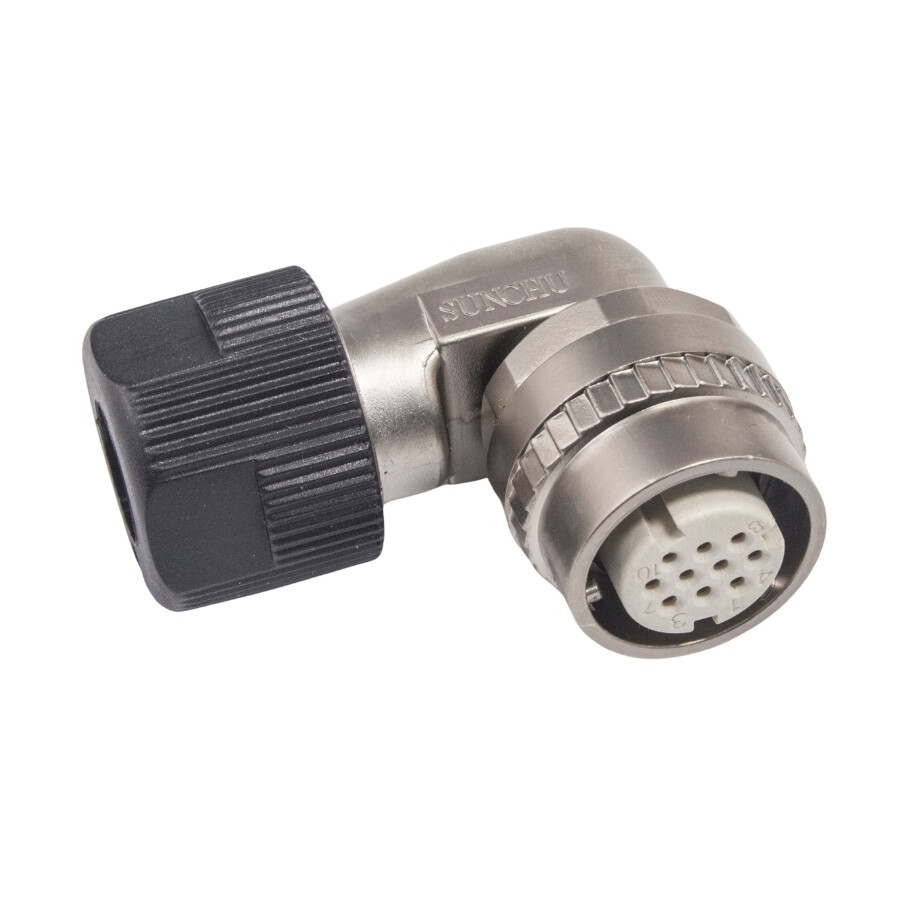

SC-CMV1-AP10S 10-Pin Elbow Type Locking Waterproof Connector is a 10-pin elbow (L) type waterproof connector with IP67 protection class. Designed for safe use in industrial automation systems, harsh environmental conditions and applications requiring precise signal transmission.

 Features

• Rated Current: Maximum 3A / pin
• Rated Voltage: 200V AC (r.m.s.)
• Insulation Resistance: 1000 MΩ min. @ 500V DC
• Dielectric Strength: 1500V AC / 1 minute
• Inner Diameter: 12mm
• Outer Diameter: 18mm
• Cable Input Diameter: 10mm
• Working Temperature: -25°C ~ +85°C
