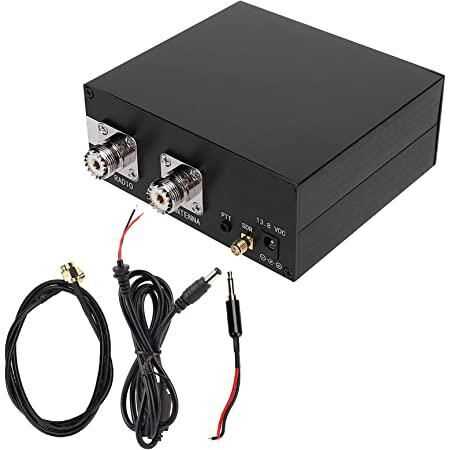

SDR Receiver - Transmitter Switch Antenna Sharing Switch 160MHz

SDR Receiver - Transmitter Switch Antenna Sharing Switch 160MHz. It is a strong and durable product with a high quality aluminum alloy case. It is easy to use and easy to carry and store due to its small size. It is comfortable.

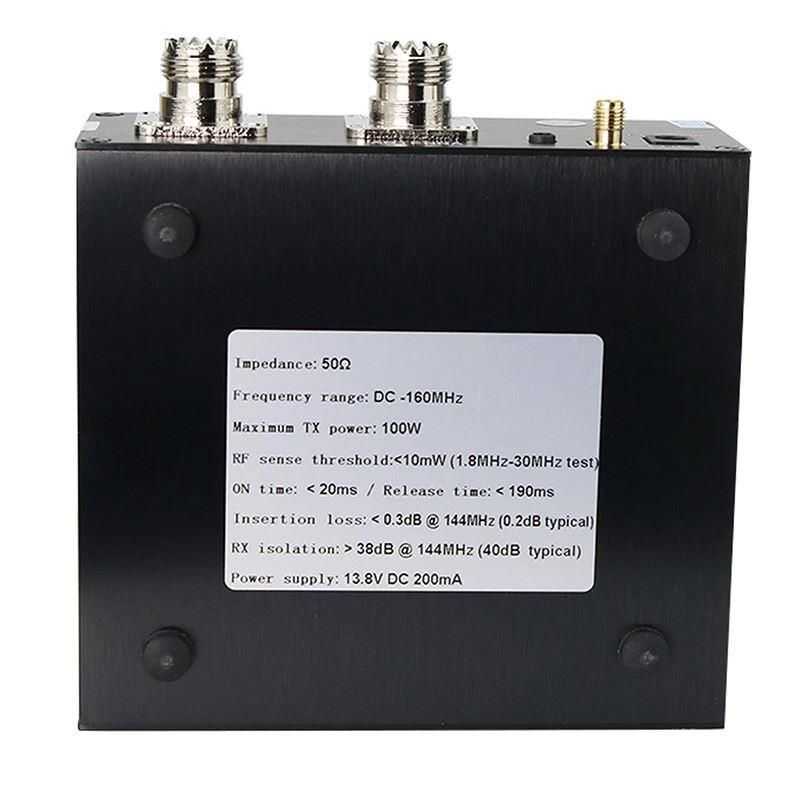

Specifications:

• Impedance: 50Ω
• Frequency Range: DC-160MHz
• Maximum TX Power: 100W
• RF Detection Threshold: <10mW (in 1.8MHz-30MHz testing)
• Insertion Loss: <0.3dB @ 144MHz (0.2dB typical)
• RX isolation: >38dB @ 144MHz (40dB typical )
• Power Supply: 13.8V DC 200mA
• Weight 430g
• Dimension: 126x119x52mm
