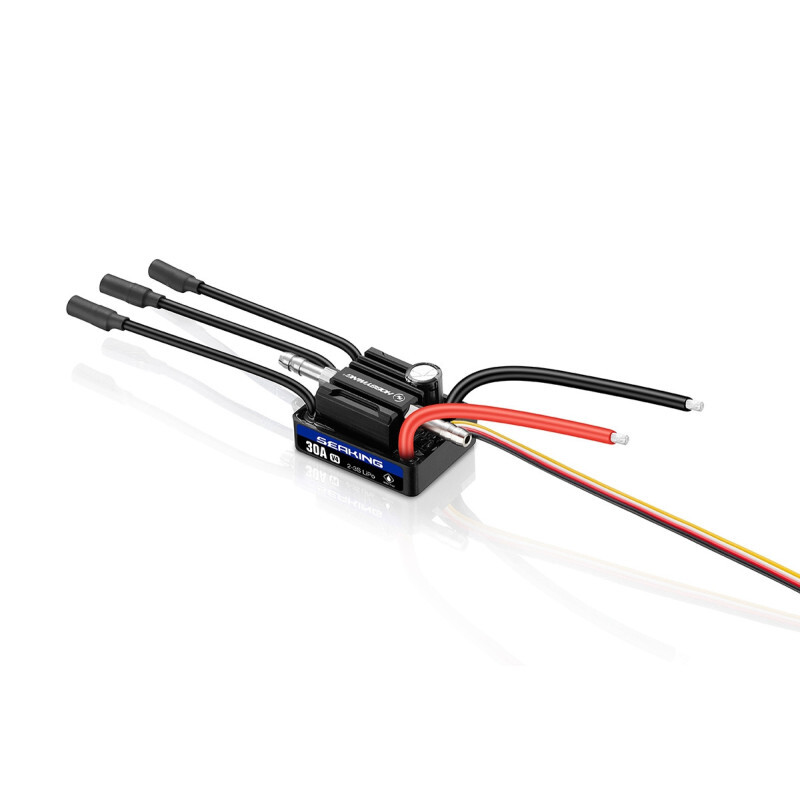

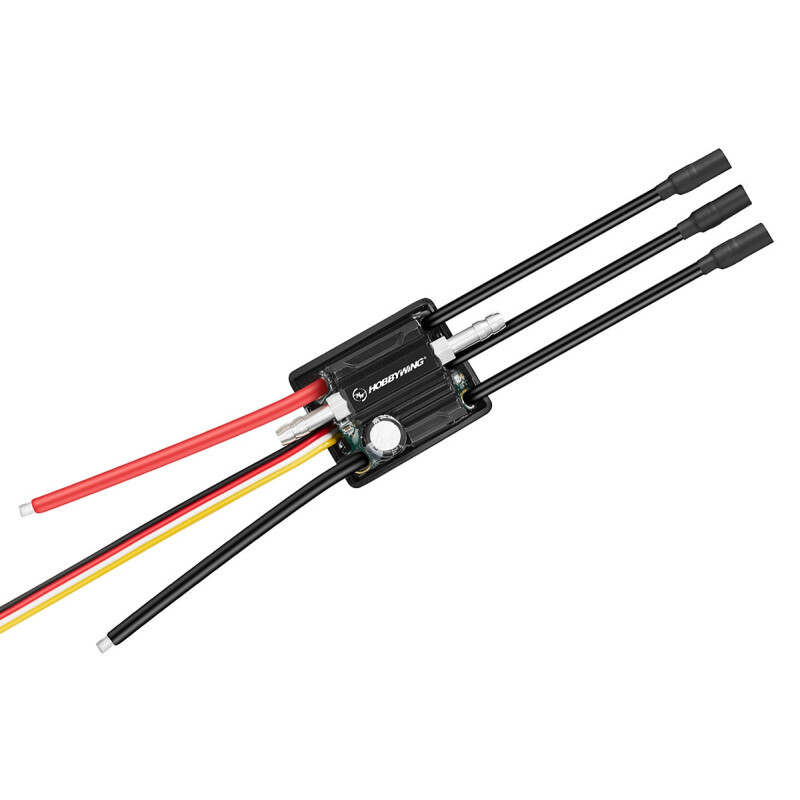

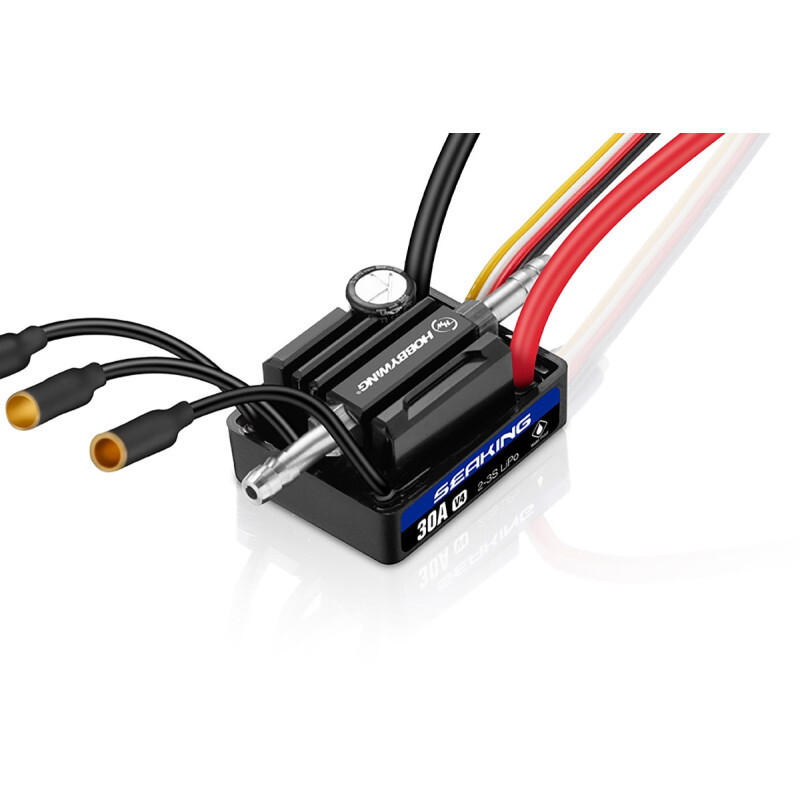

SeaKing 30A V4 Waterproof ESC
The SeaKing 30A V4 Waterproof ESC is a Hobbywing bi-directional controller designed specifically for boat models. Ideal for powerboats and smaller models up to 450 mm long.
User Manual
PROGRAMMABLE FUNCTIONS
- Operating mode: Unidirectional - for powerboats and racing. Bi-directional mode also enables reverse gear and is suitable for scale models and recreational/sports driving.
- Maximum Power in Reverse: Determines the available power for reverse gear.
- LiPo cell count: Choose to automatically detect the number of cells or manually set the number of cells for 100% reliable voltage protection.
- Voltage protection in case of supply voltage drops: Choose "no protection" mode or 2.6 to 3.6 V per cell.
- BEC Voltage: Choose 6.0 V for standard servos or 7.4 V for "high-voltage" servos (HV).
- Startup: Choose between a very soft initial start (Level 1) and a very aggressive initial acceleration (Level 7).
- Motor Rotation Direction: Determines the direction of motor rotation.
- Freewheel: Determines the direction of motor rotation when the engine speed drops when the throttle is released. affects speed.
- Resistance braking: Adjustable braking intensity at idle (0-100%)
- Timing: Adjustable from 10.0° to 30°
- AUX Channel Function: Determines which function to set while driving using the additional AUX channel on the transmitter (via a dedicated switch, rotary knob, or other control).
Specifications
- Continuous current [A] 30
- Maximum peak current [A] 100
- BEC voltage [V] 6 - 7.4
- BEC current [A] 1.5
- Length [mm] 32.8
- Width [mm] 26
- Height [mm] 18.3
- Weight [g] 33.9
- Adjustment: Unidirectional, Bidirectional
- Sensor input: No
- Programmable: Yes
- Waterproof
