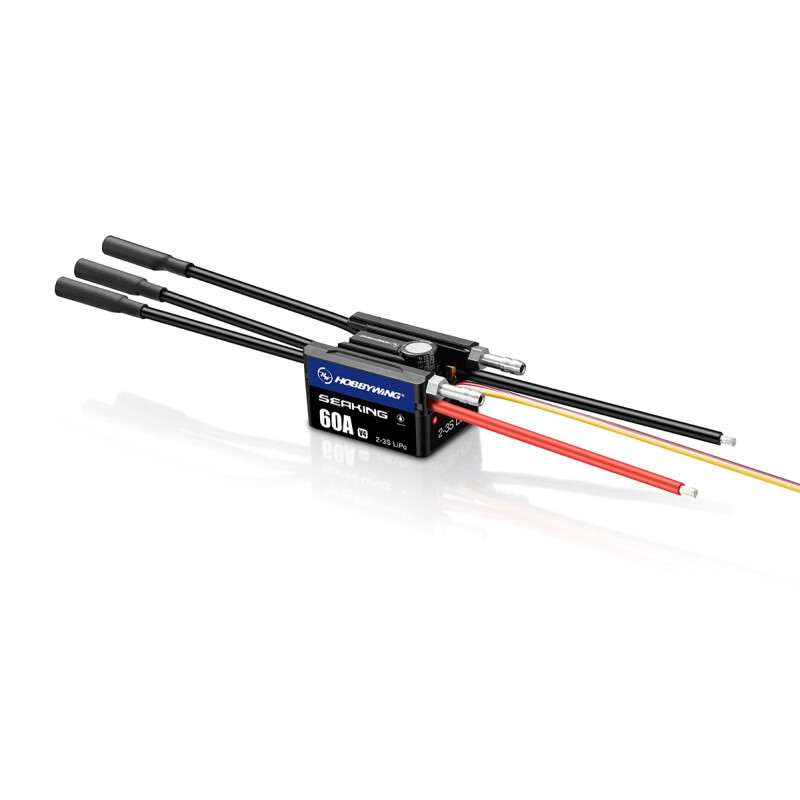

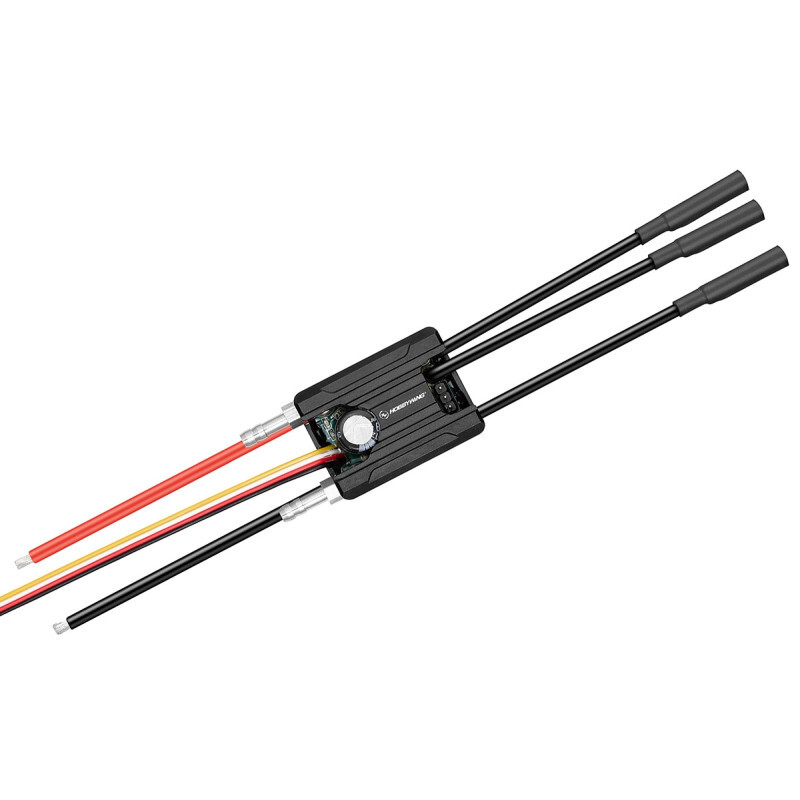

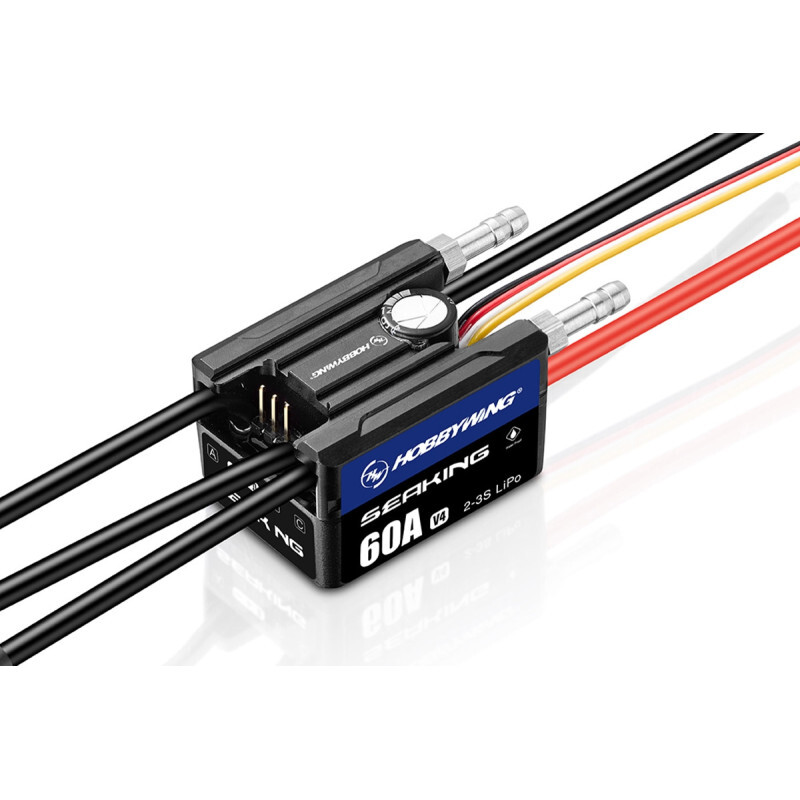

SeaKing 60A V4 Waterproof ESC
The SeaKing 60A V4 Waterproof ESC, a bi-directional controller, is specifically designed for boat models. It's ideal for powerboats up to 600 mm in length and smaller models. Continuous current is 60 A, peak current is 200 A.
User Manual
PROGRAMMABLE FUNCTIONS
- Operating mode: Unidirectional - for speedboats and racing. Bi-directional mode also enables reverse gear and is suitable for scale models and recreational/sports driving.
- Maximum Power in Reverse: Determines the available power for reverse gear.
- LiPo Cell Count: Choose to automatically detect the number of cells or manually set the number of cells for 100% reliable voltage protection.
- Voltage Protection in Case of Supply Voltage Drop: Choose "No Protection" mode or 2.6 to 3.6 V per cell.
- BEC Voltage: Choose 6.0 V for standard servos or 7.4 V for "high voltage" servos (HV).
- Startup: Choose between a very soft initial start (Level 1) and a very aggressive initial acceleration (Level 7).
- Motor Rotation Direction: Determines the direction of motor rotation.
- Freewheel: Influences the speed at which the engine speed drops when the throttle is released. Resistance braking:
- Adjustable braking intensity at idle (0-100%)
- Timing: Adjustable from 10.0° to 30°
- AUX Channel Function: Determines which function to set while driving using the additional AUX channel on the transmitter (via a dedicated switch, rotary knob, or other control).
Specifications
- Continuous current [A] 60
- Maximum peak current [A] 200
- BEC voltage [V] 6 - 7.4
- BEC current [A] 4
- Length [mm] 38.7
- Width [mm] 29
- Height [mm] 25
- Weight [g] 64.6
- Adjustment: Unidirectional, Bidirectional
- Sensor input: No
- Programmable: Yes
- Waterproof
