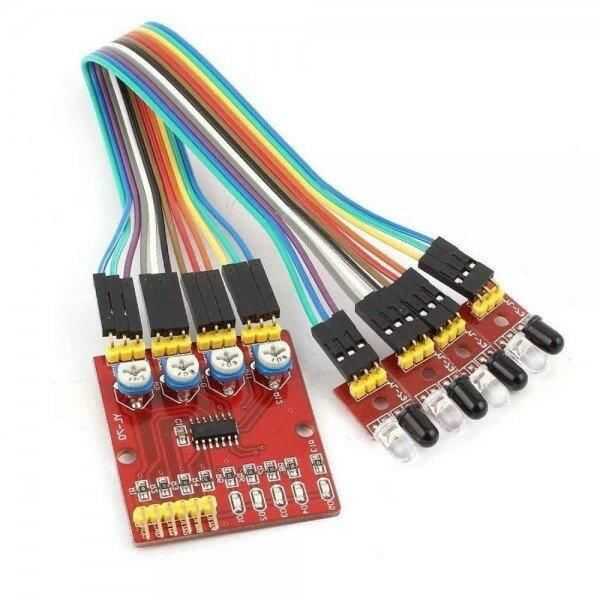

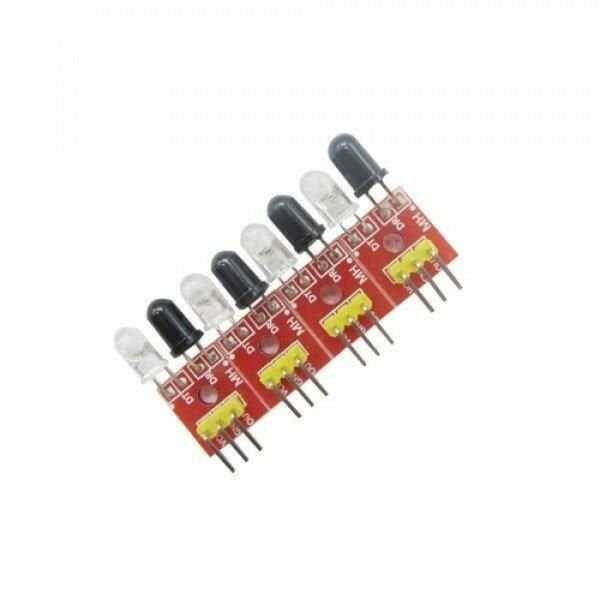

The 4-way line tracking sensor set consists of 4 independent modules. In this way, you can connect the modules to different points you want. There are infrared receiver and transmitter on the modules. There are 4 different potentiometers to adjust the sensitivity and distance of each. The cables required to connect the control card and sensors are included in the product content. There are m3 screw holes for fixing on the sensors.

The connection between the control card and the sensors is made with jumper cables and these cables are included in the package content. Thanks to the fixing screws on the sensors, the sensors can be used vertically or horizontally if desired.

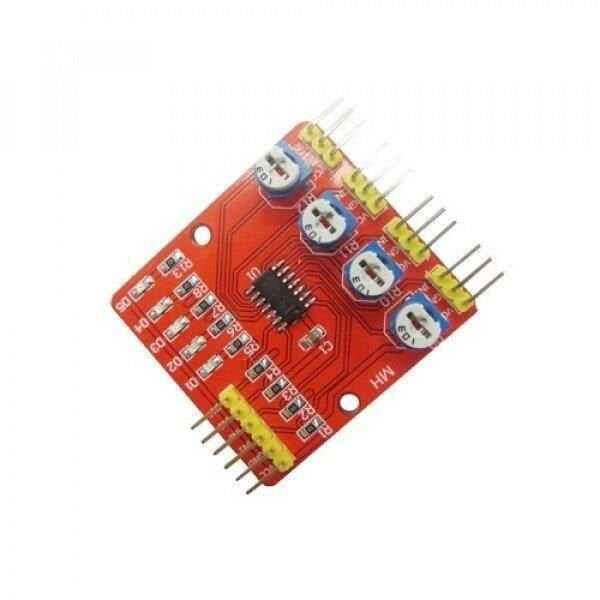

There are OUT pins, supply and ground pins on the control card through which the data from the sensors are transferred. Sensors provide digital output.

Features:

Operating Voltage: 3.3-5V
Fixing Screw Holes: M3
Distance adjustment from 1mm to 10cm
Control Card Dimensions: 42x38x12mm
Sensor Dimensions: 25x12x12mm
Card Output: Digital

Set of 4 Line Following Sensors
