SK6812 5050 NeoPixel Stick - 8' RGB Led Module

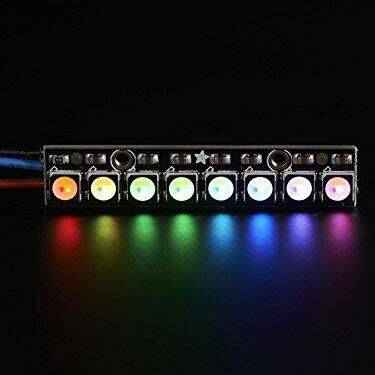

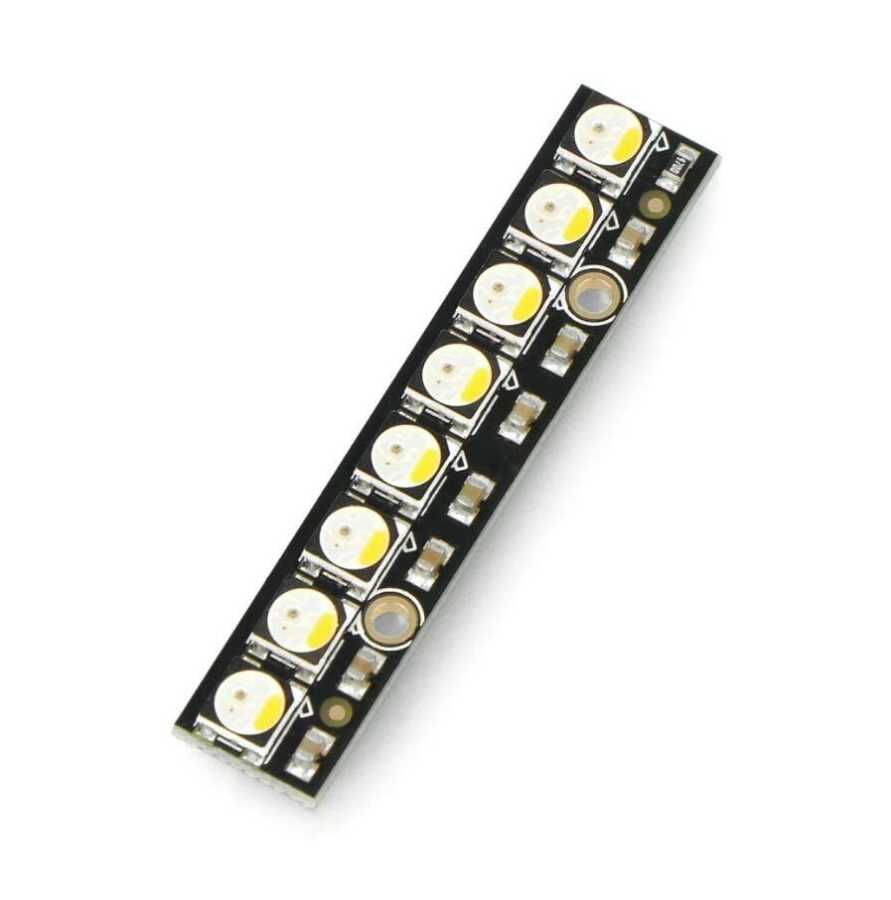

NeoPixel Stick is a light strip equipped with 8 LEDs on the WS2812B or SK6812 chip. Each LED is individually addressed - it can light independently of the others. Using NeoPixel Stick, you can create extraordinary visual designs and make your own arrangements and home lighting. Only one pin of the microcontroller is sufficient to operate the board. The LEDs are placed at equal distances from each other, and the placement of connectors on both sides of the module made it possible to connect consecutive NeoPixel Sticks in series.

Technical Specifications:

Number of LEDs on the strip: 8
LED type: RGBW 5050
White Temperature: 6000K
White shade: cold
LED chip: WS2812B / SK6812
LED type: individually addressed

Two mounting holes

Connectors on two sides for connecting strips
Supply voltage: 4 V - 7 V DC
Current consumption: approx. 18 mA per LED
Board dimensions: 50x10x3 mm

PIN Description

The ends of the ribbon are placed on either side of the plate to enable the user to connect up to a dozen such plates. The pins are in the form of solder pads to which the wire must be soldered and connected to the main module.

GND

5VDC - supply voltage 5V

DIN (Data IN) - digital control signal from the microcontroller

DOUT (Data OUT) - output for connecting the next module
