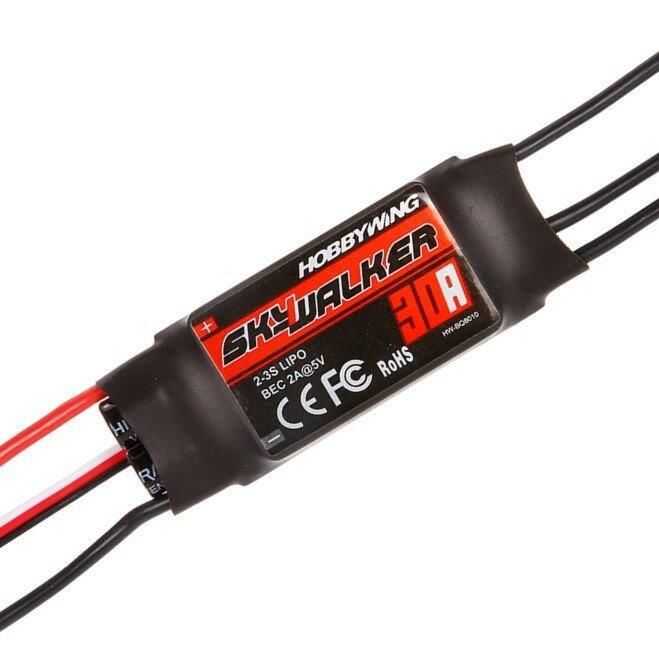

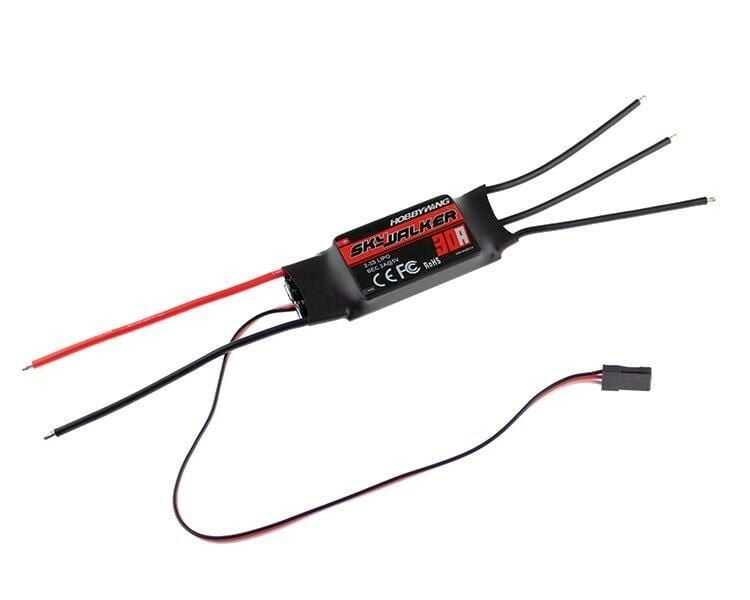

SkyWalker ESC 30A Brushless Brushless Motor Speed Control Driver
SkyWalker ESC Series is mainly developed for model aircraft, but works with helicopter and drone models based on the design, high They are quality-assured brushless motor drivers. Suitable for RTF applications and beginners to increase security and entertainment performance or for a simple start.
Specifications
< SPAN style="FONT-WEIGHT: bold">
Output: Continuous 30A, 40A up to 10 seconds
Input Voltage: 2-3S Lipo, 5-9 cells NiMH
BEC: 2A / 5V Linear mode BEC.
Signal refresh rate: 50Hz - 432Hz.< /DIV>
Max speed:
210000rpm for 2-Pole Brushless Motors
70000rpm for 6-pole Bruhsless Motors
35000 rpm Brushless Motors for 12 poles
Dimension: 68mm x 25mm x 8mm
< DIV>
Weight: 35g
