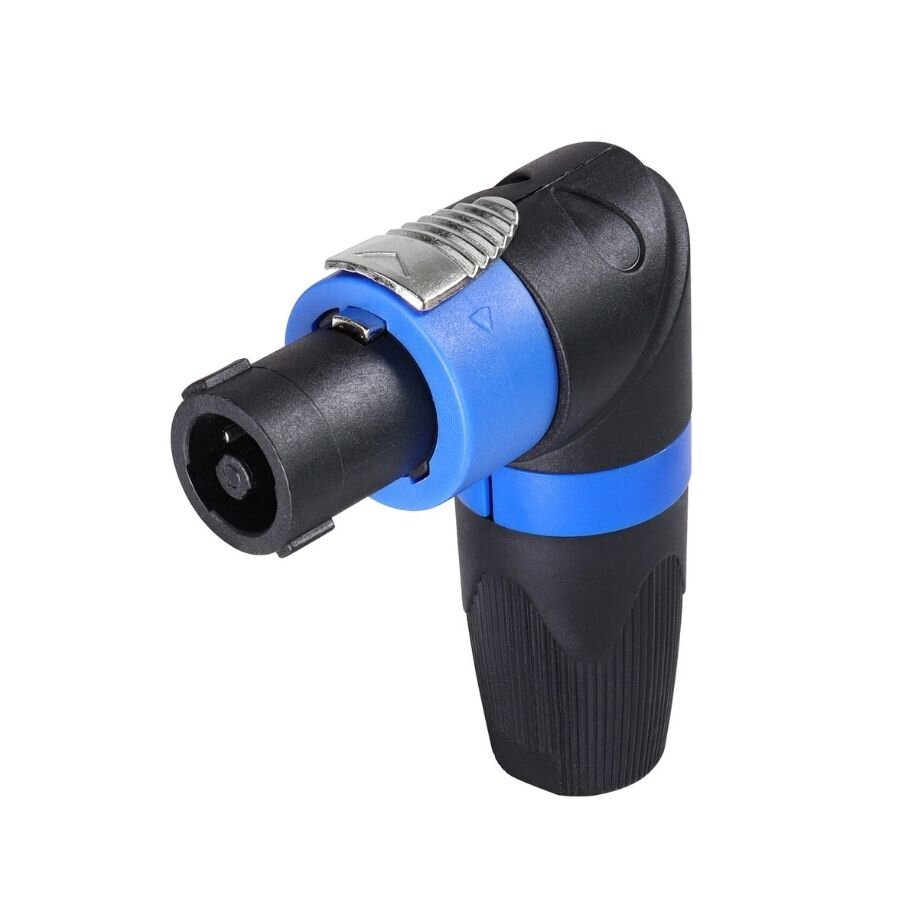

SpeakON Connector NL4FRX 90 Degree Male - 4 Pin
SpeakON panel mount connectors are standard chassis connectors for speaker-to-amplifier interconnects. They feature a unique metal locking system and only make contact when fully engaged. Speakon connectors are rugged, versatile, and easy to terminate.
The NL4 connector specifies the number of speaker circuits each connector can support. NL4 connectors have two sets of pins: +1, -1 and +2, -2 for two speaker circuits.
Features
- Rated current per contact: 40 Amps rms continuous
- Rated current per contact: 50 Amps audio signal, 50% duty cycle
- Dielectric strength: 4 kV peak
- Rated voltage: 250 V (Insulation)
- Cable outer diameter: 6 - 14.5 mm
- Cable size: 4 mm
- Wiring: Screw terminals or soldering
- Locking device: Quick Lock (latch)
