T5 E-Paper S3 Pro ESP32-S3 868MHz 4.7" LoRa Wi-Fi BLE IoT Development Board - GPS
T5 E-Paper S3 Pro ESP32-S3 868MHz 4.7" LoRa Wi-Fi BLE IoT Development Board - GPS

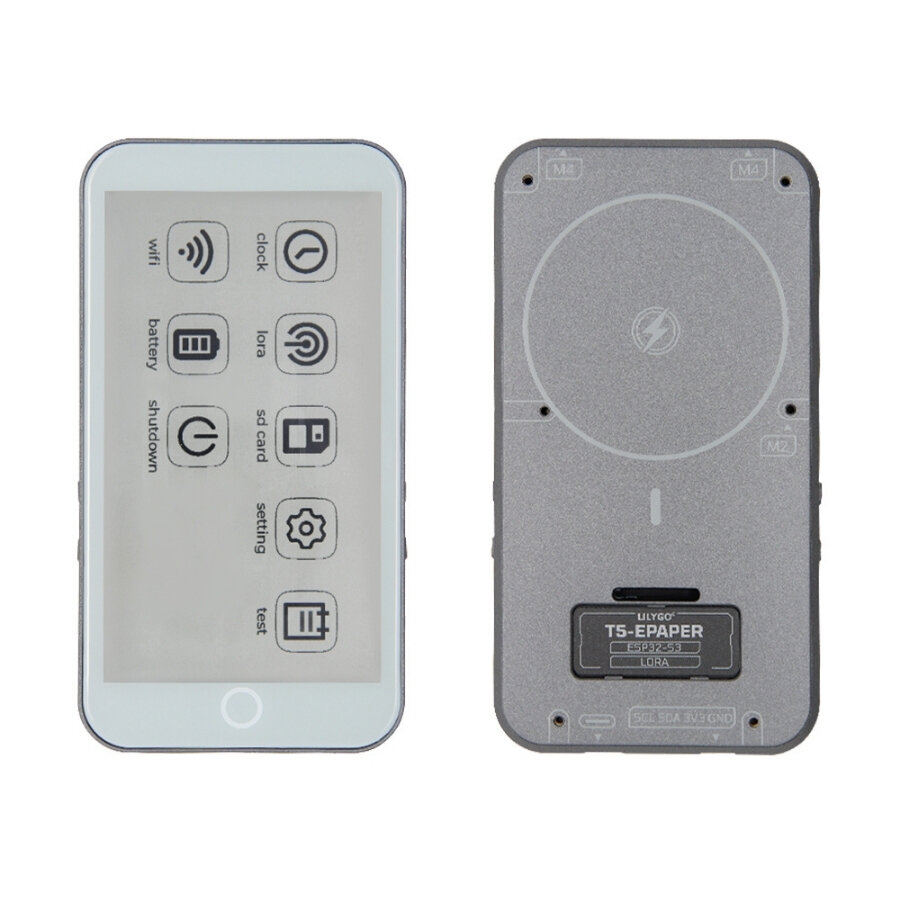

The T5 E-Paper S3 Pro ESP32-S3 868MHz 4.7" LoRa Wi-Fi BLE IoT Development Board - GPS is a powerful E-Paper development board based on the ESP32-S3 platform. With its high-resolution 4.7-inch E-Paper display (960×540, 16 grayscale), it offers clear, sunlight-readable visuals with ultra-low power consumption. This advanced e-paper module integrates LoRa 433/868/915 MHz, Wi-Fi 2.4 GHz, and Bluetooth 5.0 BLE, making it ideal for IoT boards, e-paper signage, e-paper price tags, and other embedded systems.
With capacitive touch control, RTC PCF8563, microSD/TF card storage, and GPS, the LILYGO T5 E-Paper S3 Pro is perfect for smart displays, perimeter monitoring, asset tracking, and wireless sensor nodes. An advanced power management system (BQ25896/BQ27220) and magnetic wireless charging support ensure long-lasting operation. Fully compatible with Arduino IDE, Micropython, and ESP-IDF, this E-Paper board is suitable for rapid IoT prototyping.
You can find other T5 E-Paper S3 models here.
You can find sample code and user manual here.
T5 E-Paper S3 Pro Technical Specifications
| SKU | H752-01 |
| MCU | ESP32-S3-WROOM-1 |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless Connectivity | 2.4 GHz Wi-Fi& BLE 5 |
| Programming Environment | Arduino-IDE, VS Code |
| Onboard function | Touch, RTC PCF8563, tf Card |
| Battery Management Chip | BQ25896, BQ27220 |
SX1262 Low Power LoRa Transceiver | |
| Support Baud | 868MHz |
4.7-inch Ultra-low Power E-paper | |
| Driver IC | ED047TC1 |
| Size | 4.7 inch |
| Gray levels | 16 |

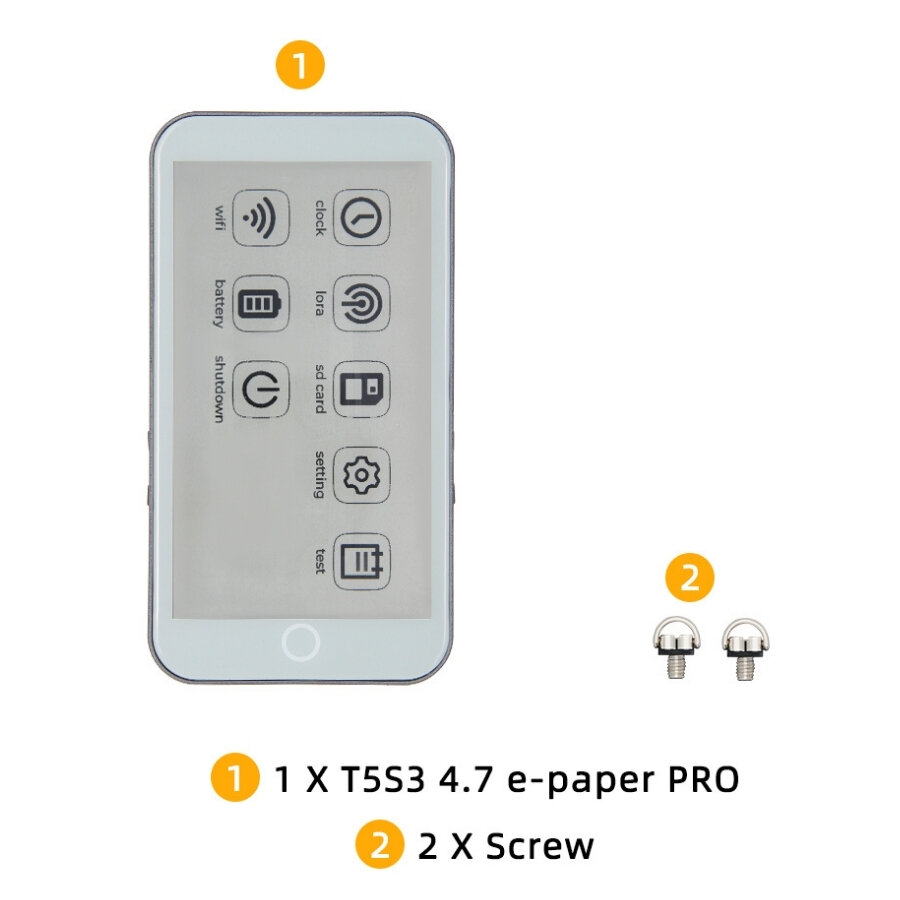

Package Content
- 1x T5 E-Paper Pro
- 2x Screw
Pinout
