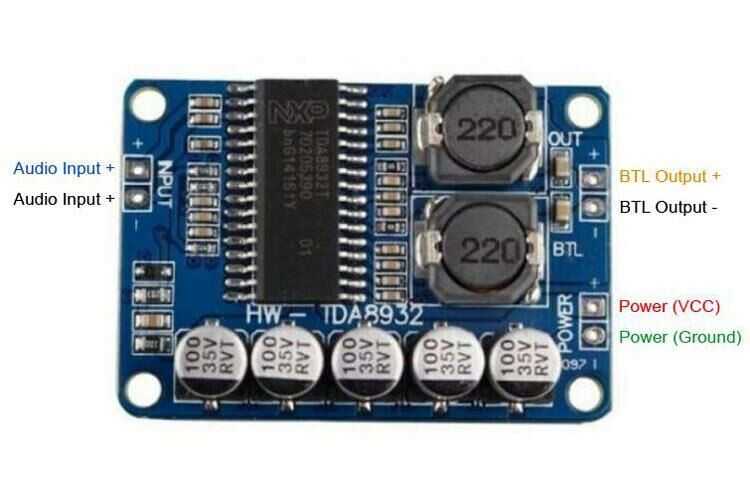

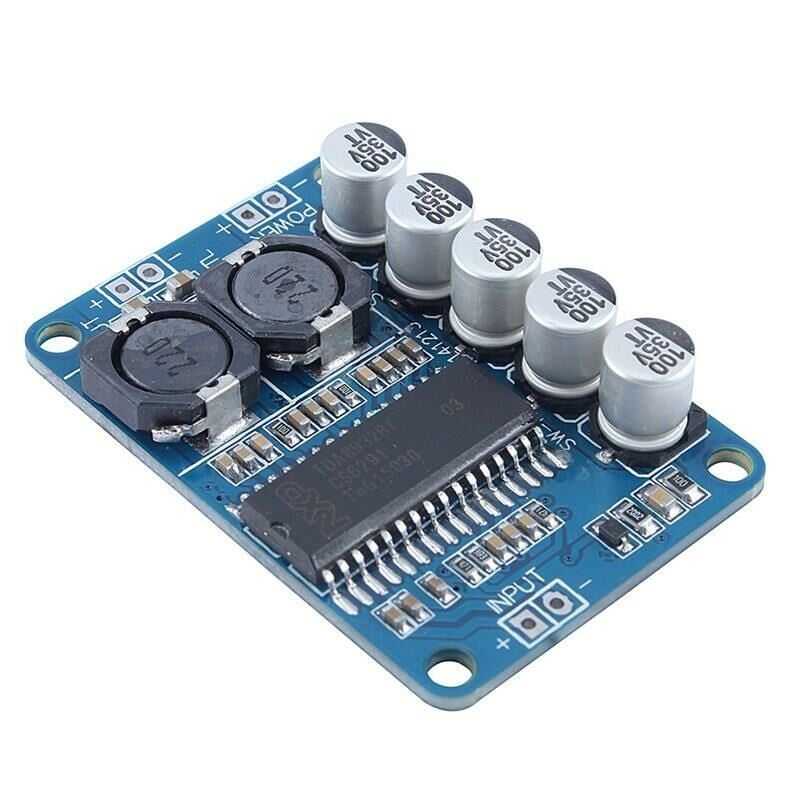

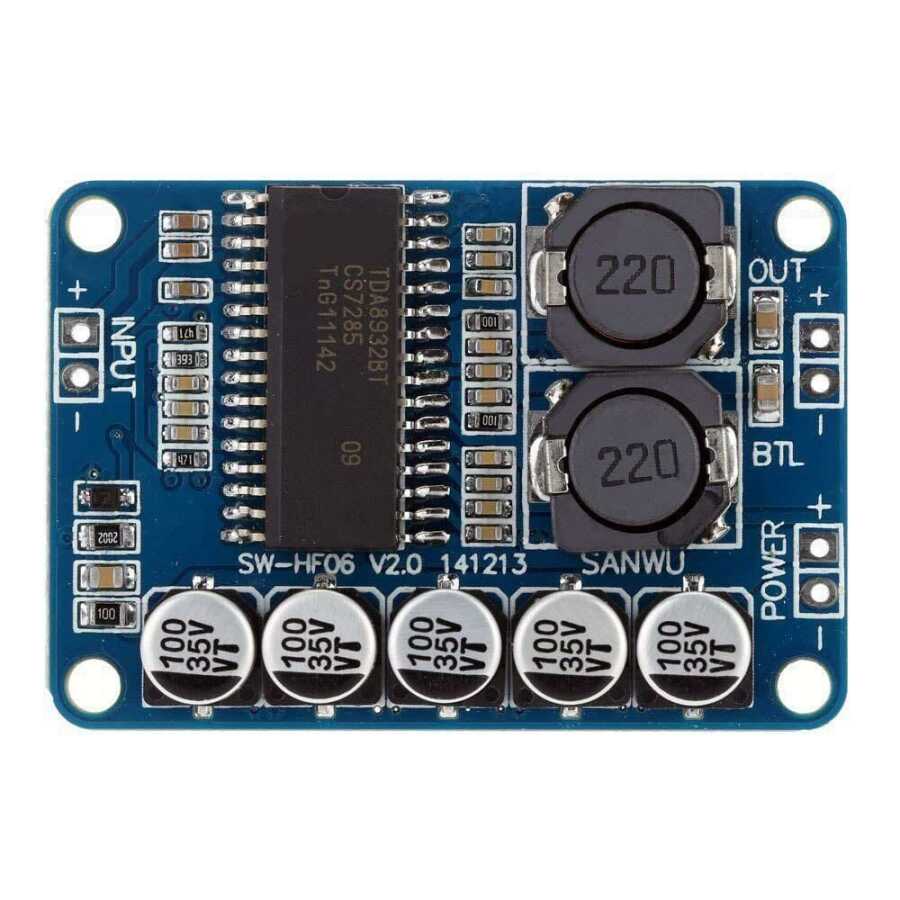

TDA8932 35W Mono Amplifier Circuit

TDA8932 based Audio Amplifier Board module is a digital mono amplifier module that provides 35 Watt output. This board uses a high-performance digital amplifier TDA8932 chip. Due to its small size, it is easily installed in any small space-based DIY audio amplifier project. It has high efficiency, high power, good sound quality, without additional installation of radiator. It is very suitable for conversion of active speakers, electroacoustic project application, product development and other audio applications.

Technical Specifications

< DIV>

Operating Voltage: DC 10V~30V, 24V voltage recommended
Current: More than 2A required
Power output: 35W ×1 (mono)
Speaker Impedance: 4-8ohm (8 ohm optimum)
DIV>
Circuit Configuration: Mono BTL output
PCB board size: 45 × 31 MM
