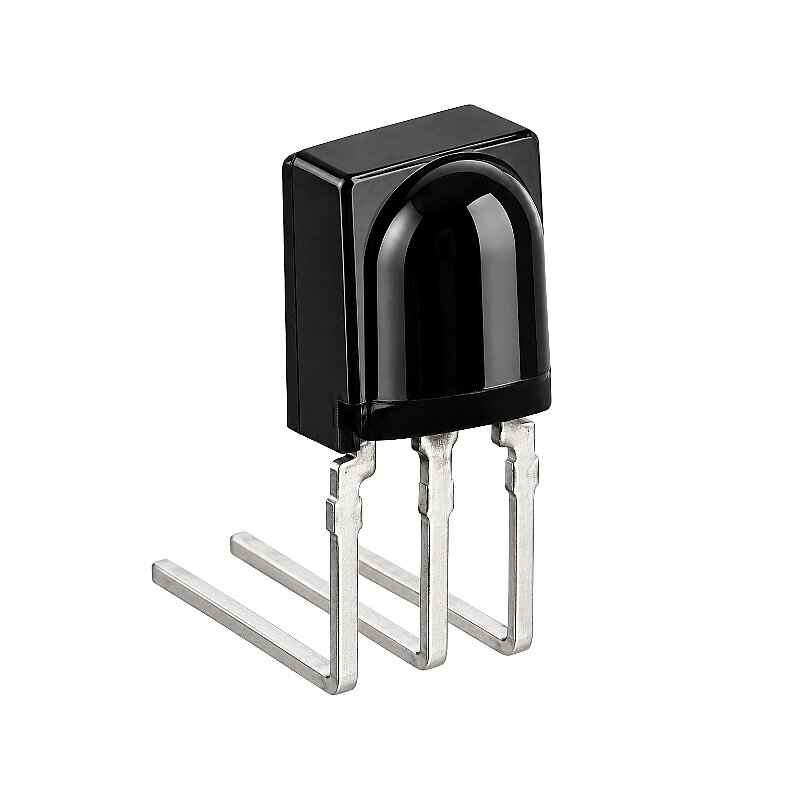

TSOP18438 38kHz IR Receiver
This is a 38 kHz module frequently used in IR receiver and sensor circuits. It is easy to use; once powered, you can connect an LED to its output and test it using a remote control. The sensor integrates a PIN photodiode, a preamplifier, automatic gain control (AGC), a band-pass filter, and a demodulator circuit—all within a single package.
Thus, without the need to build an external IR photodiode amplifier circuit, the modulated IR signal from a remote control is converted directly into a digital output signal that a microcontroller can read.
Specifications
- Operating Voltage: 2.0–5.5V DC
- Absolute Maximum Supply Voltage: 6V
- Typical Supply Current: 0.35mA @ 3.3V
- Maximum Supply Current: 0.45mA (under datasheet test conditions)
- Maximum Output Current: 5mA
- Carrier Frequency: 38kHz
- AGC Type: AGC4
- Noise Suppression: Enhanced Noise Suppression
- Output Type: Demodulated digital output
- Output Logic: Active LOW when an IR burst is detected
- Typical Test Transmission Distance: 30m
- Half-Sensitivity Angle: ±45°
- Peak Spectral Sensitivity: Approximately 950nm
- Operating Temperature: -25°C to +85°C
- Storage Temperature: -25°C to +85°C
- Package: Minicast
- Mounting: THT / Leaded

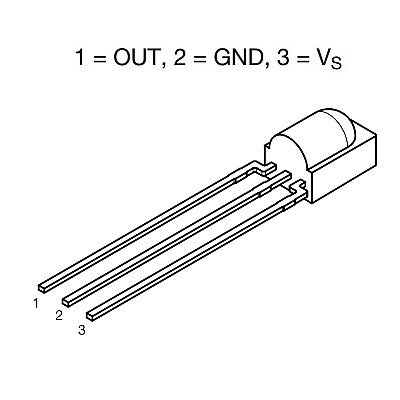

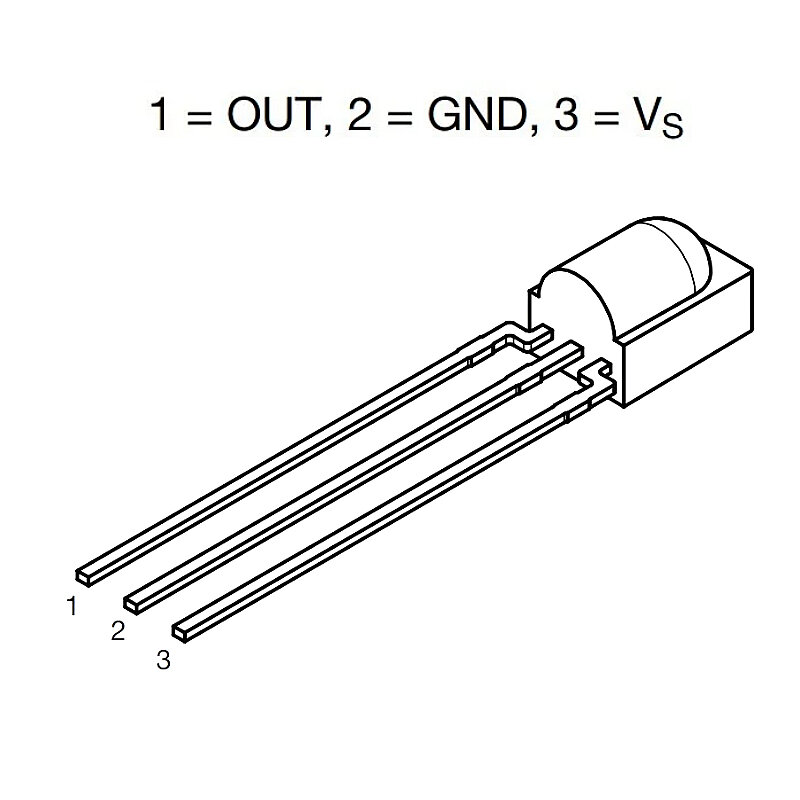

- Pin
- Quantity: 3
- Dimensions: Approx. 5.0 × 6.95 × 4.8mm
- Pin Pitch: 2.54mm
