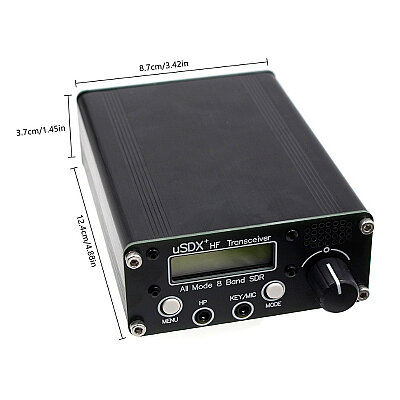

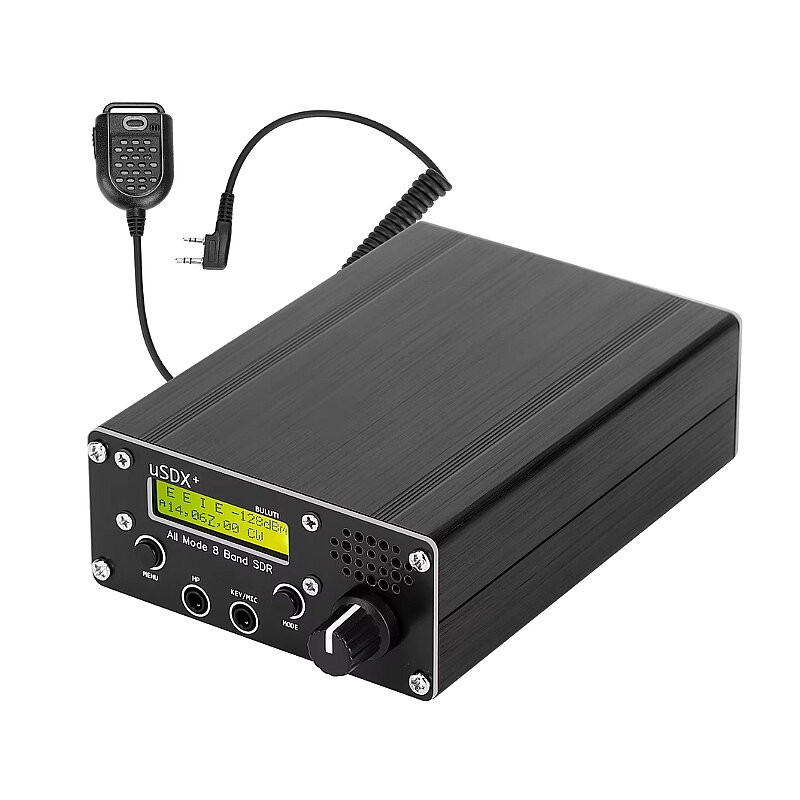

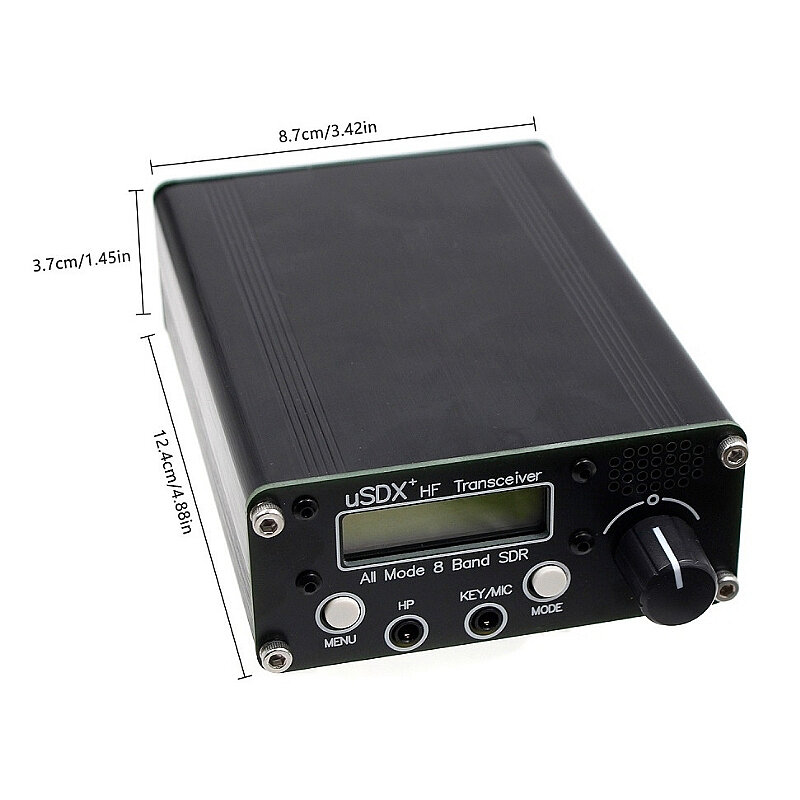

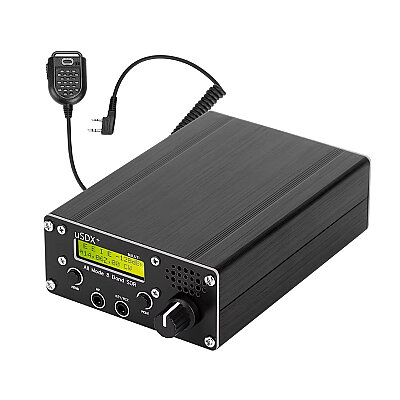

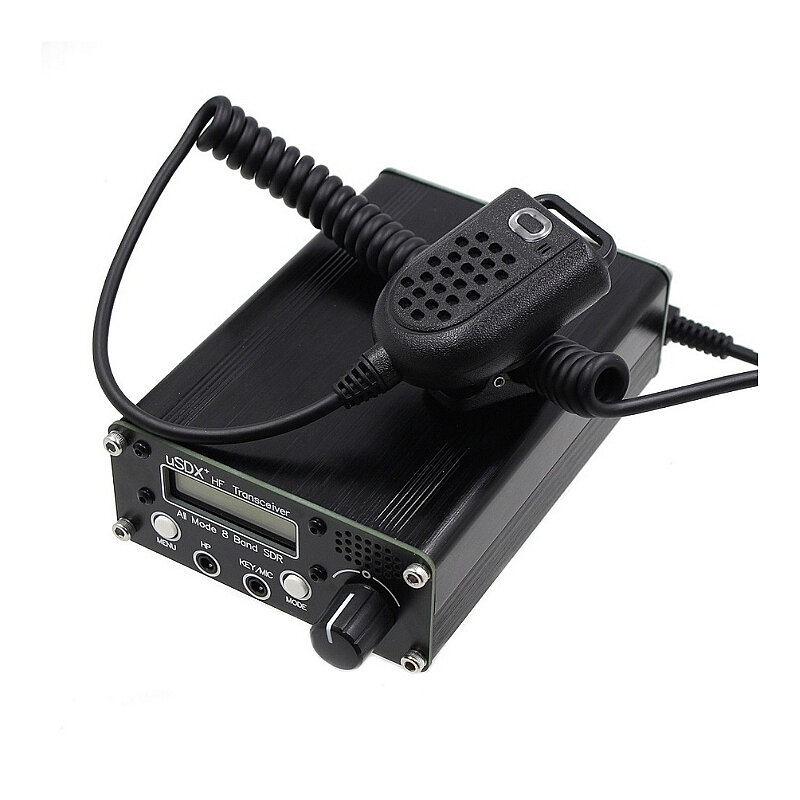

uSDR uSDX+ Plus V2 3-5W 8-Band HF Transceiver

uSDR uSDX+ Plus V2 3-5W 8-Band HF Transceiver

The uSDR uSDX+ Plus V2 3-5W 8-Band HF Transceiver is a compact, SDR-based QRP HF transceiver designed for amateur radio, shortwave communication, and HF experimentation. Capable of both transmission and reception, the device is suitable for low-power communication, portable amateur radio operations, and digital mode activities.

The device supports a total of eight HF bands: 80m, 60m, 40m, 30m, 20m, 17m, 15m, and 10m. Its operating frequency range is approximately 3.5–30 MHz.

Thanks to its support for USB, LSB, CW, AM, and FM modes, it can be used for voice communication, Morse code, shortwave listening, and various amateur radio applications.

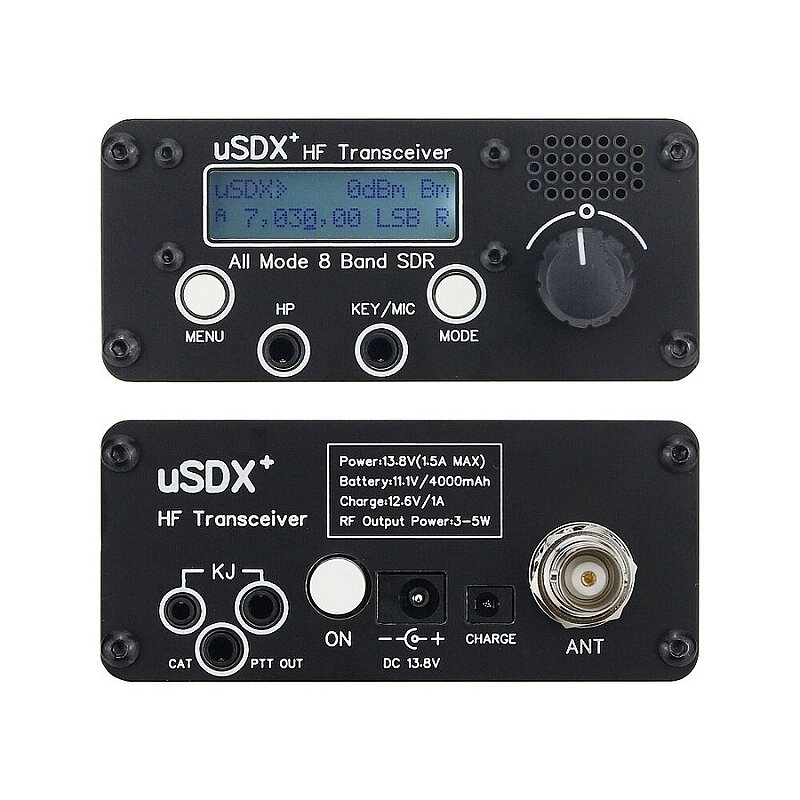

Specifications

• Frequency Range: Approx. 3.5–30 MHz
• Supported Bands: 80m / 60m / 40m / 30m / 20m / 17m / 15m / 10m
• Operating Modes: USB / LSB / CW / AM / FM
• RF Output Power: Typically 3–5W
• External Power Supply: 13.8V DC
• Maximum External Supply Current: Approx. 1.5A
• Internal Battery: 11.1V / 4000mAh Lithium
• Charging Input: 12.6V / 1A
• Antenna Connection: BNC
• Display: 1602N LCD
• Built-in Speaker: Yes
• Headphone Output: Yes
• Microphone Input: Yes
• CAT Control: Yes
• PTT OUT: Yes
• CW Decoder: Yes
• VOX: Yes
• AGC: Yes
• Noise Reduction: Yes
• Analog Attenuator: Yes
• DSP Filter Bandwidths: 4000 / 2500 / 1700 / 500 / 200 / 100 / 50 Hz
• Frequency Accuracy: Better than 1 ppm
• Frequency Stability: Better than 0.5 ppm
• Receiver Noise Floor: Approx. -135 dBm @ 28 MHz / 200 Hz BW

Package Content

• 1 * SDR Transceiver
• 1 * Microphone
• 1*12.6V 1A Adapter
