UU9.8 0.27mm 10MH Choke Coil
12,60
TL
+
VAT
15,12
TL
Notify Me When It Arrives
Notify Me When It Arrives

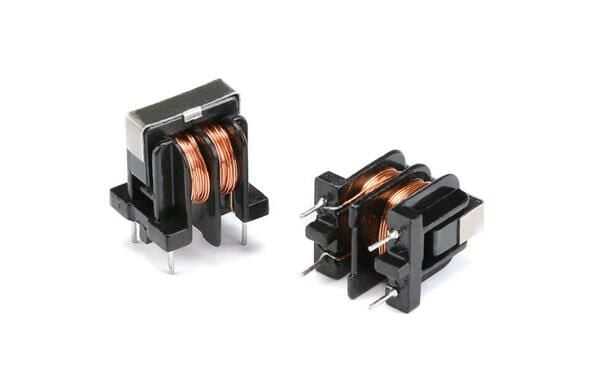

UU9.8 0.27mm 10MH Choke Coil
The coil can be mounted on PCB for various electronic applications. TV, audio and It is used in the fields of video, microwave and communications transmission and reception, and can also be used for power supply filtering. It provides significant reduction of diffuse noise over a wide frequency range. UU families are low-cost, high-efficiency chokes designed to virtually eliminate line-conducted common mode noise.
Uses
Offline power sources
Protects AC input from the effects of switching regulators
DC to DC Converters
Computer, TV, VCR, audio and office equipment
Technical Specifications
Operating Frequency Range: 20KHZ-1MHz
Current Range: 0.1A - 1A
Dimensions: 16x11x15mm
Wire Diameter: 0.27mm
