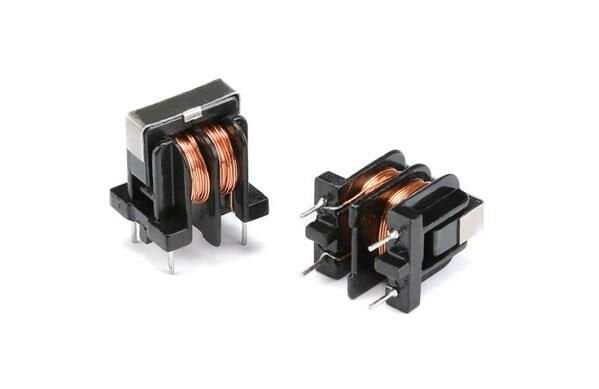

UU9.8 0.27mm 30MH Choke Coil

The coil can be mounted on PCB for various electronic applications. TV, audio and It is used in the fields of video, microwave and communications transmission and reception, and can also be used for power supply filtering. It provides significant reduction of diffuse noise over a wide frequency range. UU families are low-cost, high-efficiency chokes designed to virtually eliminate line-conducted common mode noise.

Uses

Offline power sources

Protects AC input from the effects of switching regulators

DC to DC Converters

Computer, TV, VCR, audio and office equipment

Technical Specifications

Operating Frequency Range: 20KHZ-1MHz

Current Range: 0.1A - 1A

Dimensions: 16x11x15mm

Wire Diameter: 0.27mm
