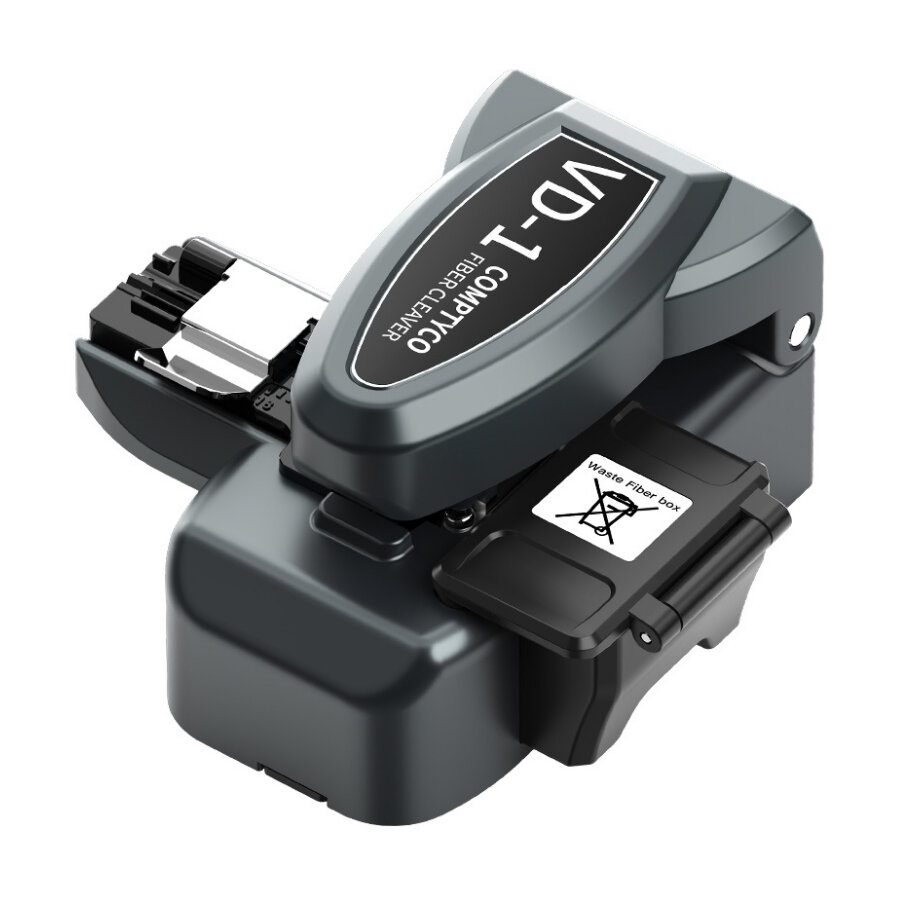

VD-1 One-Step Automatic Fiber Optic Cutter - Cleaver

VD-1 One-Step Automatic Fiber Optic Cutter - Cleaver

The VD-1 One-Step Automatic Fiber Optic Cutter - Cleaver is a high-precision, one-step fiber optic cutter suitable for FTTH applications. It offers easy operation and precise cutting performance with its "One Press, One Cut" principle. It is compatible with hot melt welding processes and provides stable and reliable end-face protection for fiber optic welding. It is an ideal tool for FTTH home entrances, computer room cabling, and other welding operations.

After pressing the top cover, the cutting process is completed automatically and can be operated with one hand, making it convenient and fast. After the cutting process, the slide automatically returns to its original position.

It can cut all types of fiber optic cables including 0.25mm bare fiber, 0.9mm tail fiber, and 2.5-3.0mm leather wire.

It comes with a built-in scale, eliminating the need for a separate length measuring device.

Technical Specifications

• Suitable Fiber Optic Types: Ø0.25,  Ø0.9,  Ø3.0mm,  Ø3.0*2.0mm
• Fiber Diameter: 125um
• Cutting Angle: 0.5°
• Cutting Length: 9-24mm
• Blade Life: Approximately 48000 cuts
• Dimensions: 7.9x7.4x4.8cm
