VTF-MC07 2x60W + 150W 2.1 Channel Bluetooth Amplifier Module
2.171,50
TL
+
VAT
2.605,80
TL
Notify Me When It Arrives
2.171,50
TL
+
VAT
2.605,80
TL
Add to Favorite
RecommendCommentAlarm Price

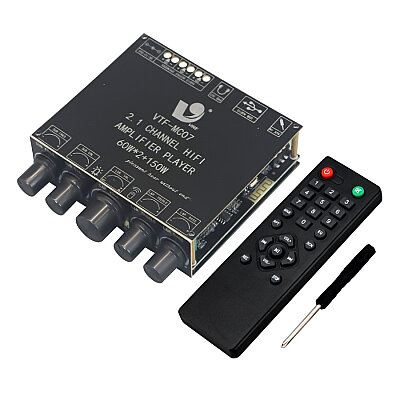

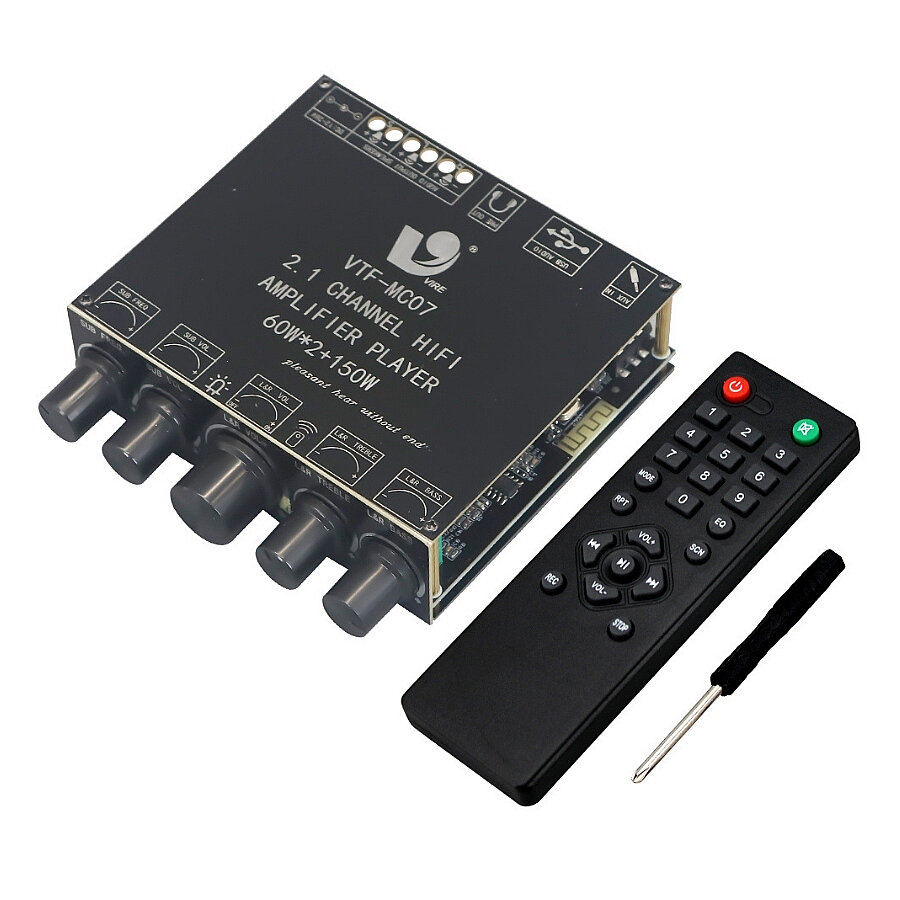

VTF-MC07 2x60W + 150W 2.1 Channel Bluetooth Amplifier Module

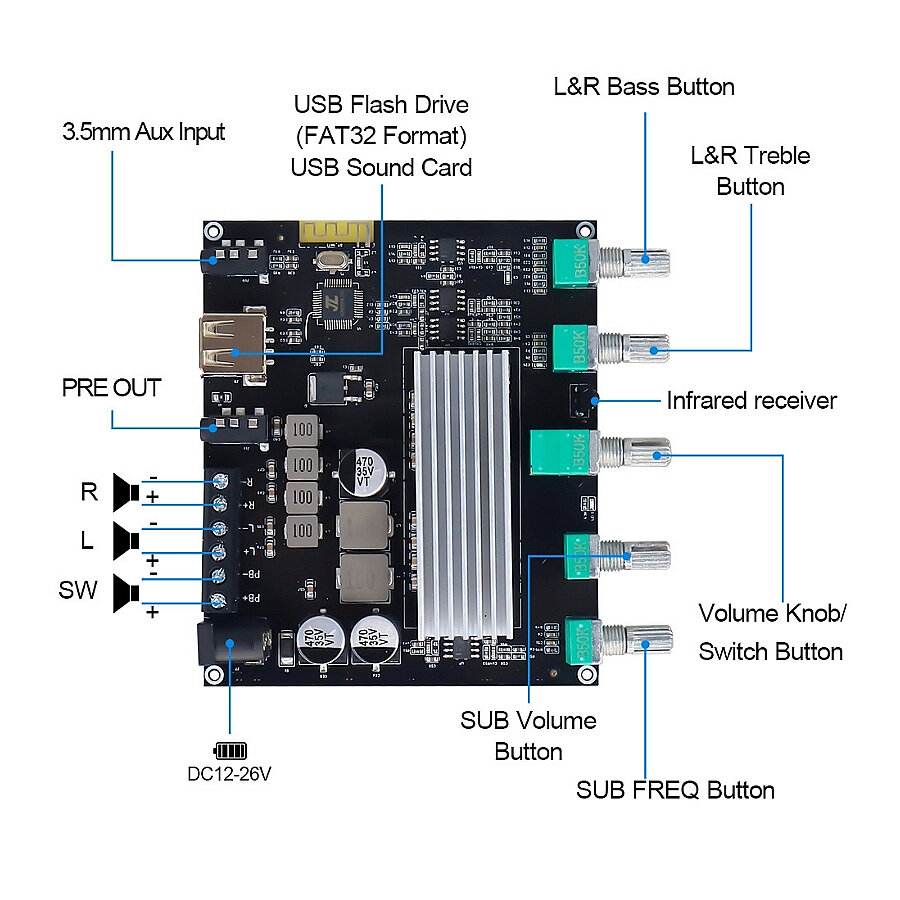

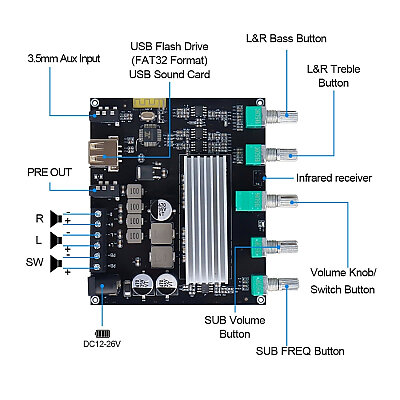

The VTF-MC07 2x60W + 150W 2.1 Channel Bluetooth Amplifier Module is a Class-D Bluetooth amplifier module designed to create a powerful 2.1 channel audio system using stereo speakers and a separate subwoofer. The board features two TPA3116 power amplifier ICs. In addition to separate outputs for the left and right stereo channels, it offers a dedicated low-frequency output for driving a passive subwoofer.
Features
- Operating Voltage: DC 12–24V
- Amplifier IC: 2 × TPA3116
- Channel Configuration: 2.1 channel
- Stereo Output Power: 2 × 60W @ 4Ω
- Subwoofer Output Power: 150W @ 3Ω
- Recommended Power Supply: 24V / 8–10A
- Bluetooth Version: Bluetooth 5.3
- Audio Inputs: Bluetooth / AUX / USB
- Stereo Speaker Impedance: 4–8Ω
- Recommended Stereo Speaker Power: 60–100W
- Subwoofer Impedance: 3–4Ω
- Recommended Subwoofer Power: 150–200W
- Frequency Range: 20Hz–30kHz
- Signal-to-Noise Ratio: Approx. 92dB
- Protection: Over-voltage, under-voltage, over-temperature, short-circuit, DC detection, and ESD protection
