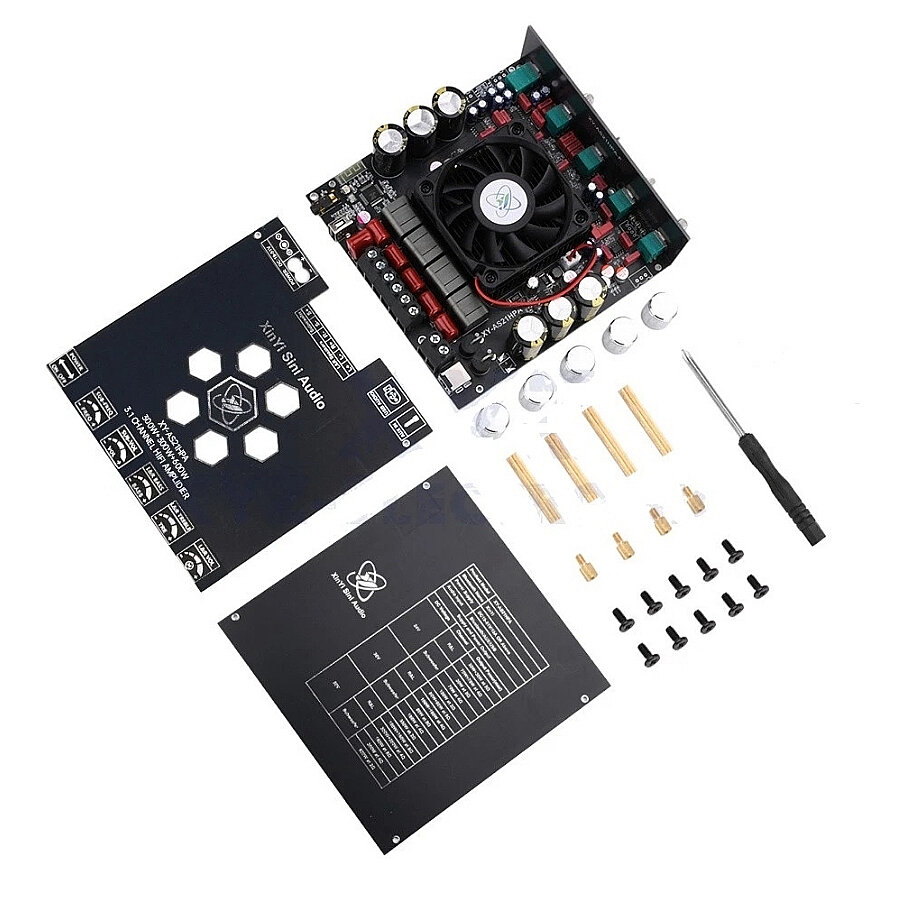

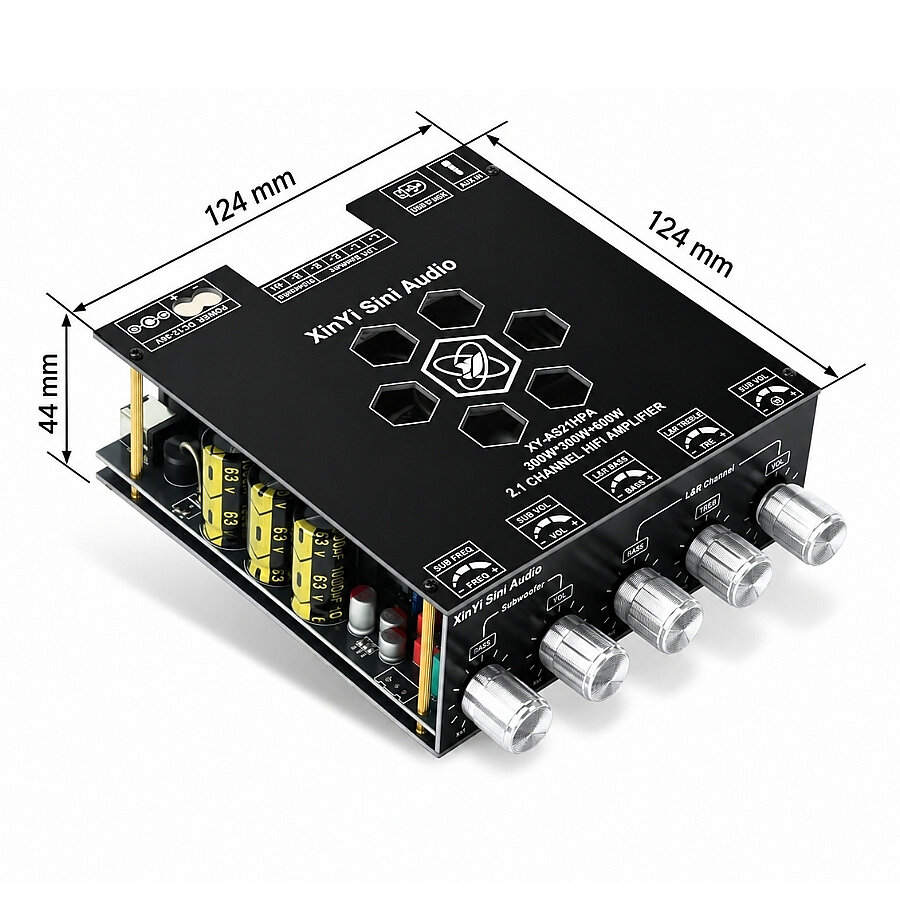

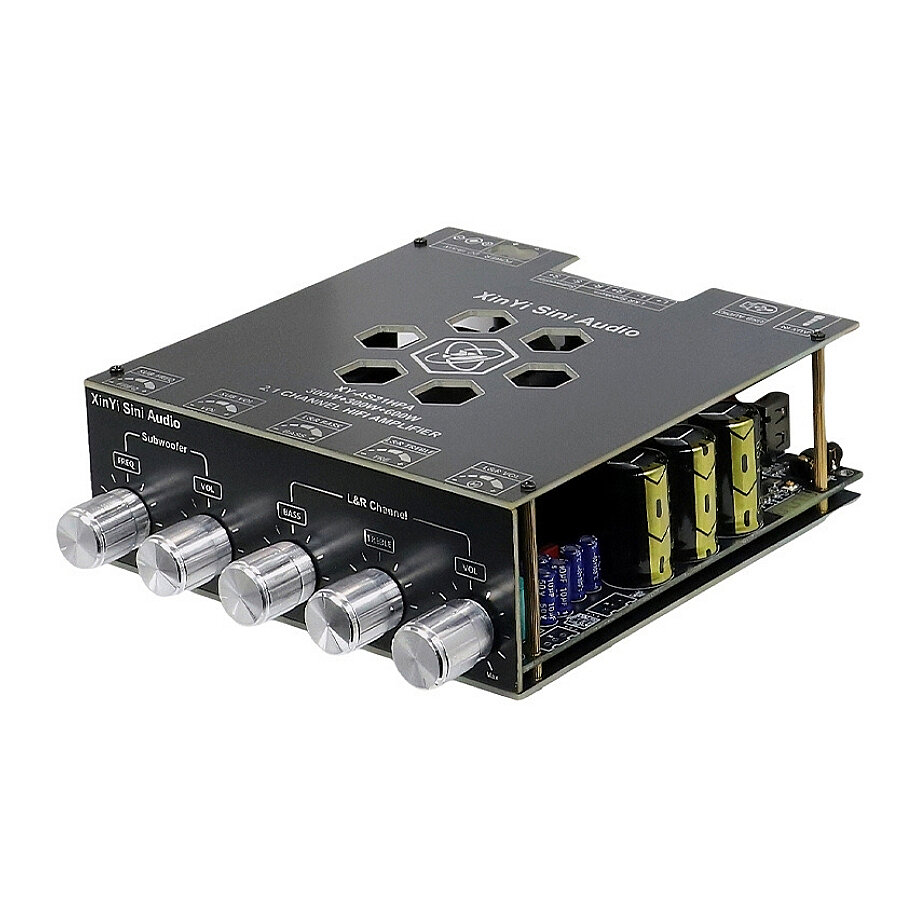

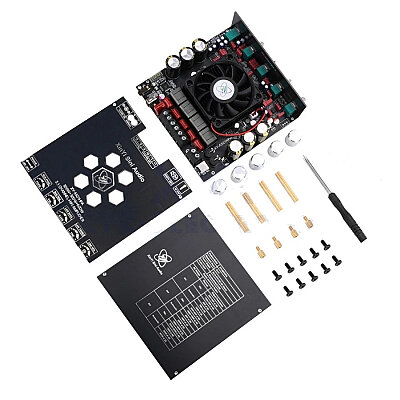

XY-AS21HPA 2x300W + 600W 2.1 Channel Bluetooth Amplifier Module

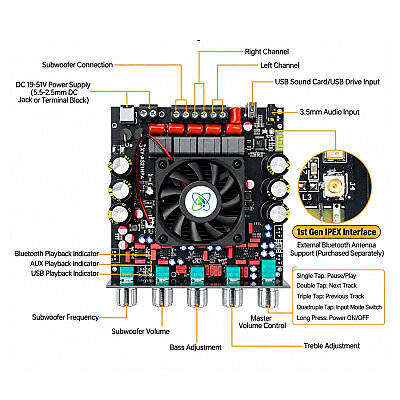

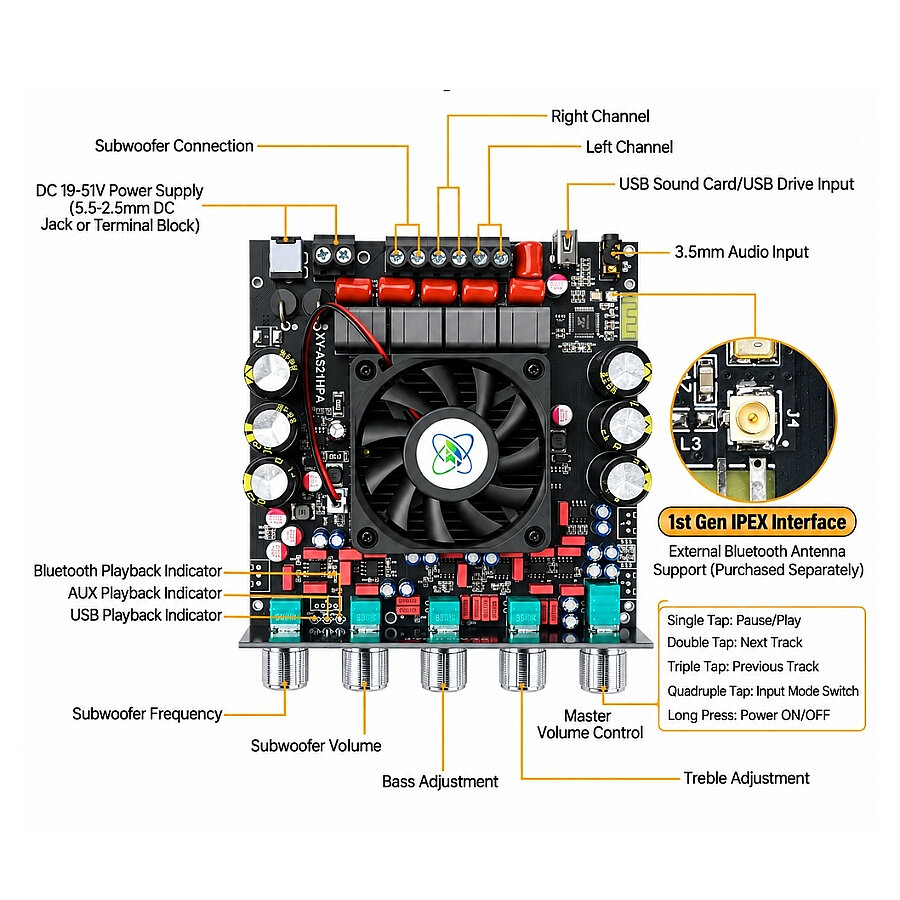

The XY-AS21HPA 2x300W + 600W 2.1 Channel Bluetooth Amplifier Module utilizes dual TPA3255 power amplifier ICs on the board. This configuration enables high-power driving of the left and right stereo channels alongside a dedicated subwoofer channel.
Bluetooth, 3.5mm AUX, and USB can be used as audio sources.
The USB connection can be used for both USB audio input and audio playback from a USB flash drive (on supported versions).
Specifications
- Supply Voltage: DC 19–51V
- Recommended Power Supply: Approx. 48V / 10A or higher
- Amplifier IC: 2 × TPA3255
- Channel Configuration: 2.1 channel
- Stereo Output: Left + Right
- Subwoofer Output: Yes
- Maximum Stereo Power: 300W + 300W
- Maximum Subwoofer Power: 600W
- Audio Inputs: Bluetooth / AUX / USB
- AUX Input: 3.5 mm
- Bluetooth Version: 5.2
Recommended Output Powers
Left and right channel output power
- 30W + 30W 8Ω/24VDC
- 70W + 70W 4Ω/24VDC
- 80W + 80W 8Ω/36VDC
- 160W + 160W 4 Ω/36VDC
- 160W + 160W 8 Ω/50VDC
- 300W + 300W 4 Ω/50VDC
Subwoofer output power
- 30W 8Ω/24VDC
- 70W 4Ω/24VDC
- 150W 2 Ω/24VDC
- 80W 8Ω/36VDC
- 160W 4 Ω/36VDC
- 350W 2Ω/36VDC
- 160W 8 Ω/50VDC
- 300W 4 Ω/50VDC
- 600W 2Ω/50VDC
