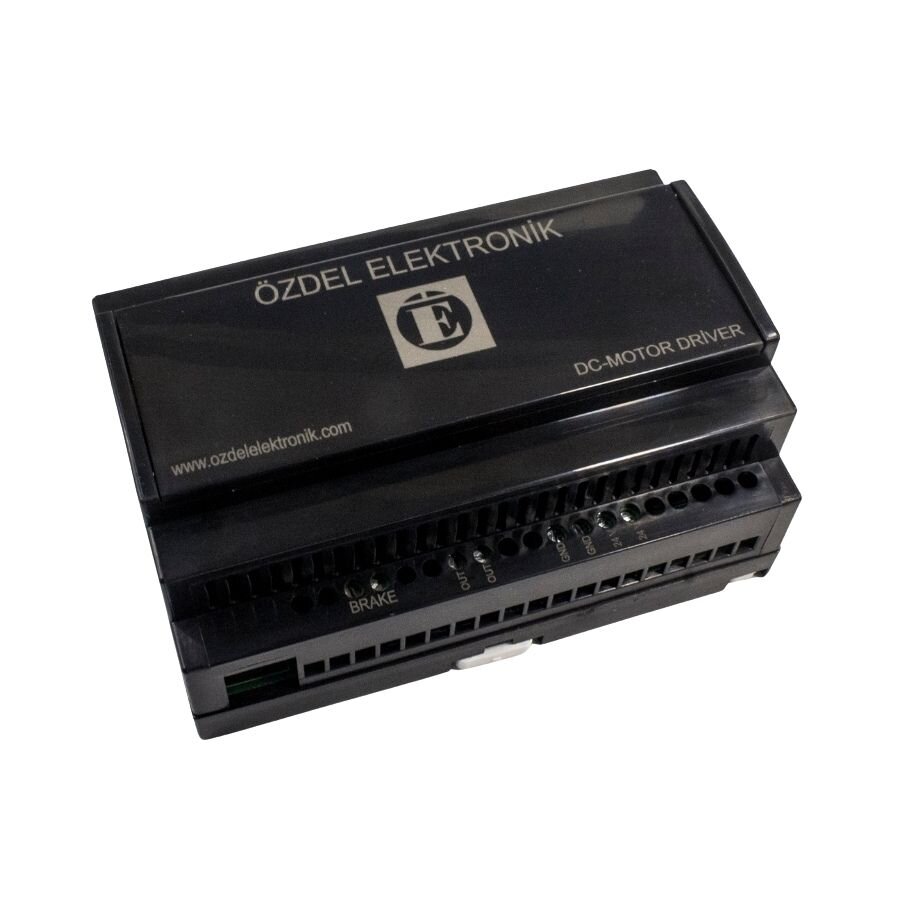

15-30V 500W Rail Type DC Motor Driver
The 15-30V 500W Rail Type DC Motor Driver is a microprocessor-based controller that allows precise speed control and external direction control for DC motors. It supports instant direction switching and can withstand a peak current of 110A for up to 4ms. The driver includes potentiometer and analog input options.
User Manual

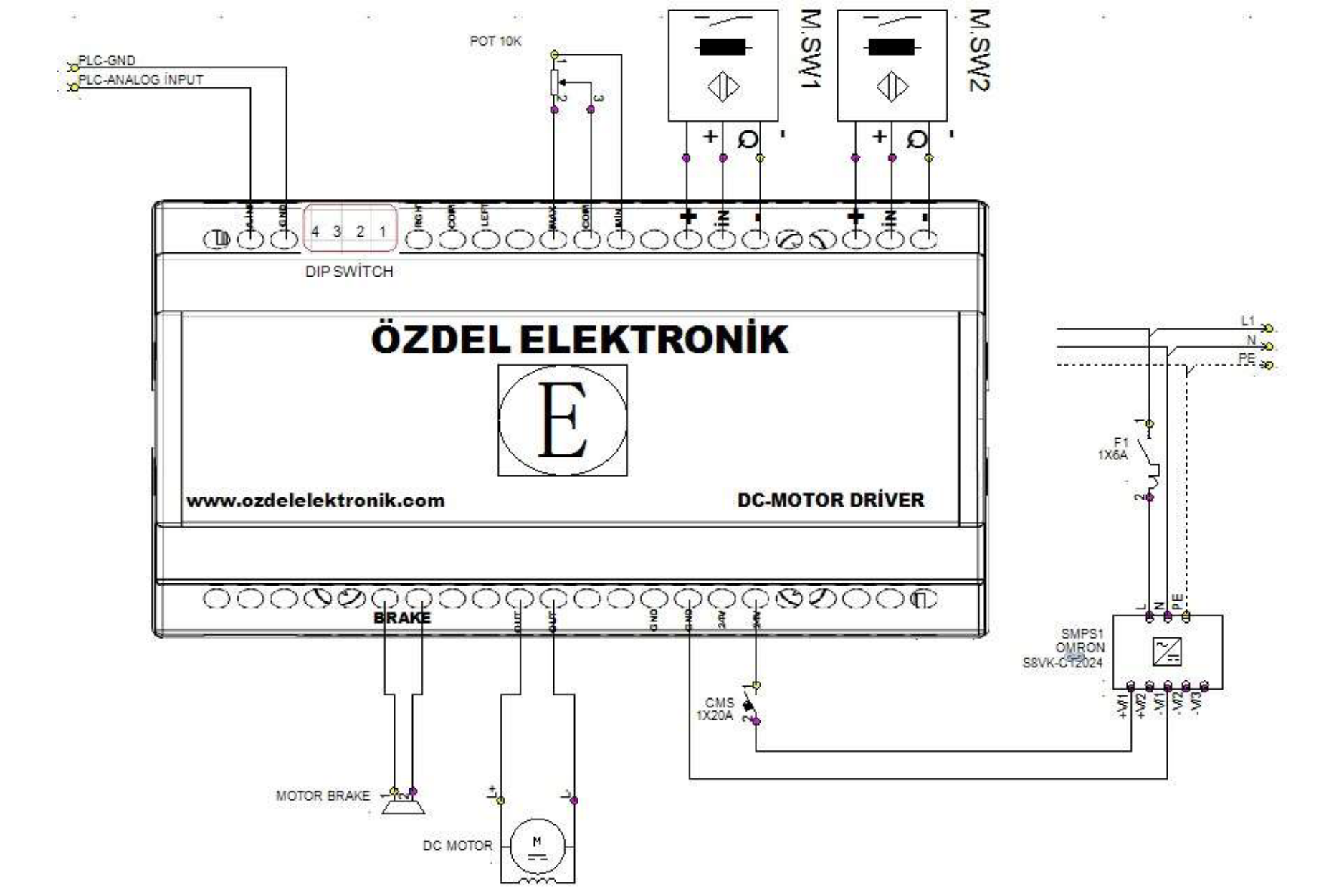

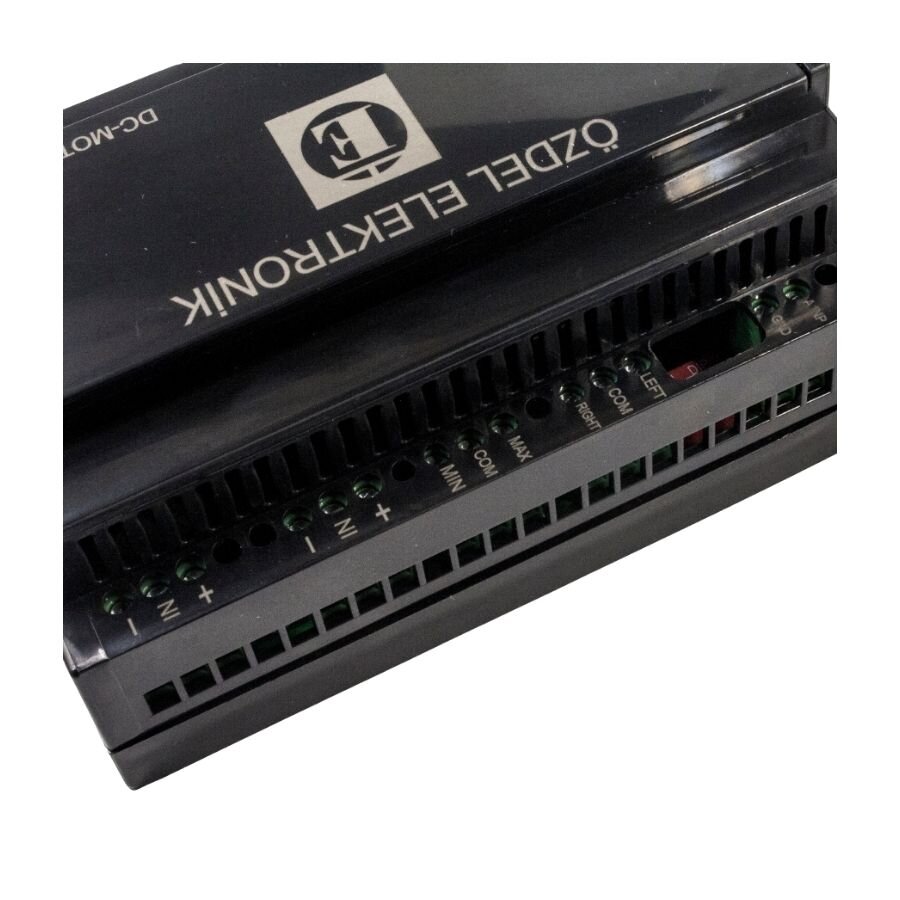

Inputs
- 0-10V Analog Input
- Direction Input
- Potentiometer Input
- Proximity Switch Input

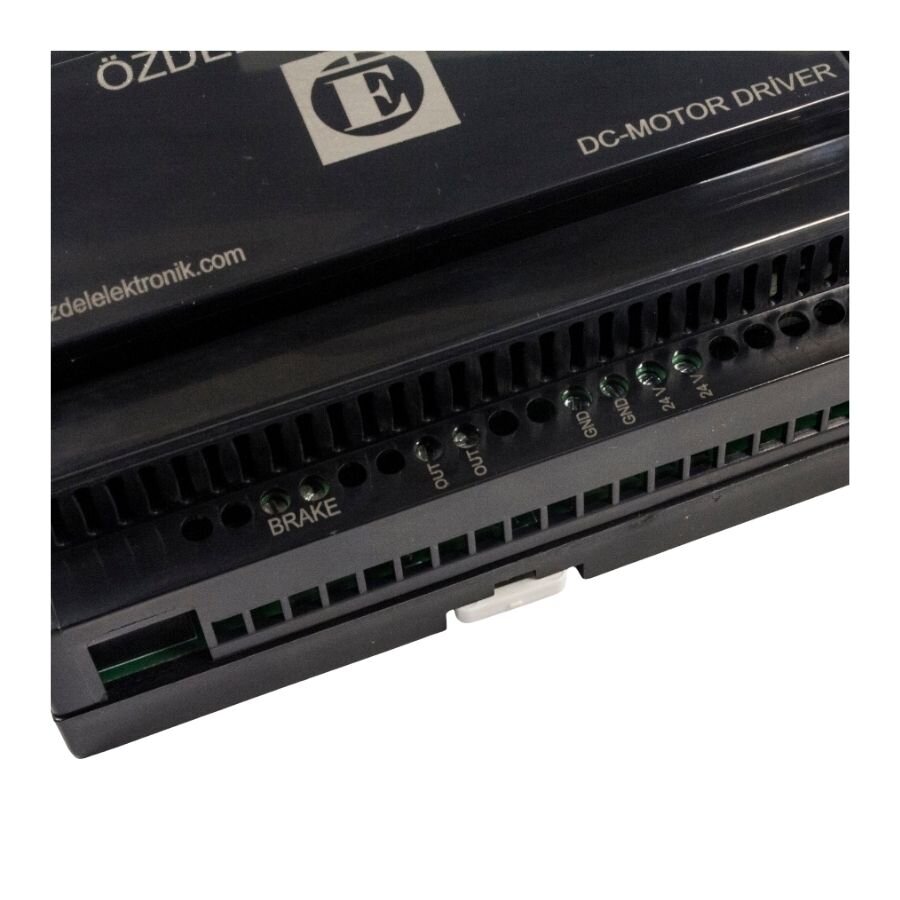

Outputs
- Motor Output
- Spring-Loaded Brake Output 3A
Specifications
- Input Voltage: 15-30VDC
- Continuous Output Current: 24V DC – 27A
- Operating Temperature: -40°C to +85°C
- Response Time: 1ms

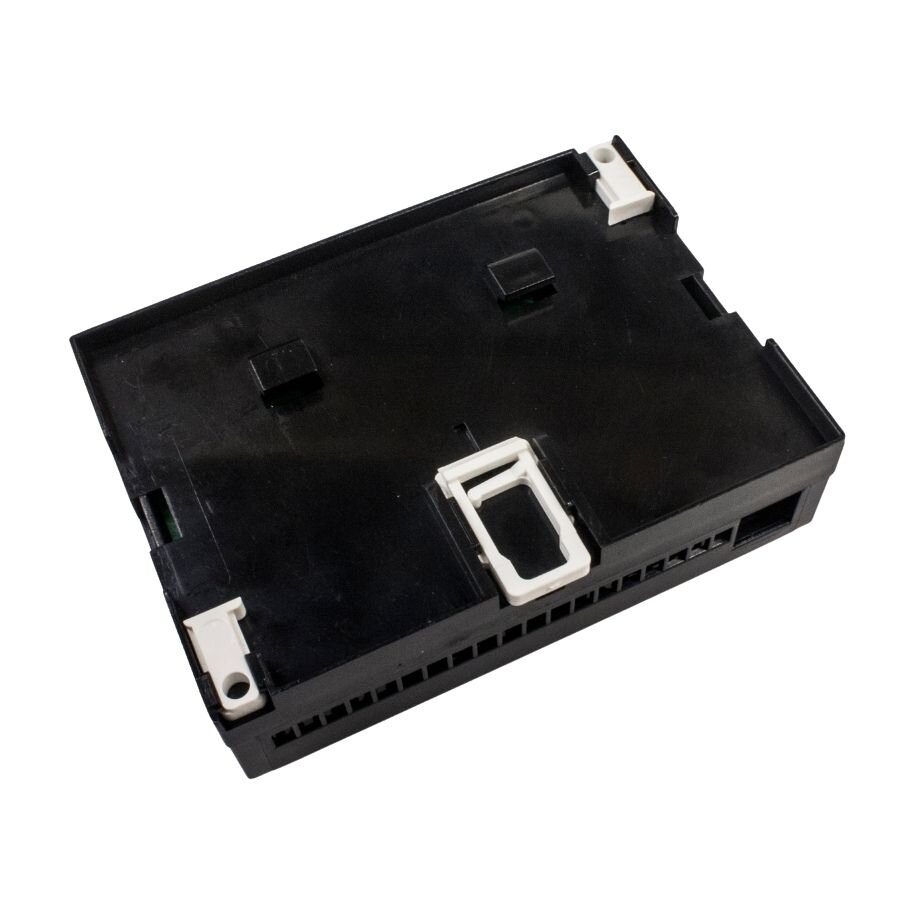

- Mounting Type: DIN Rail

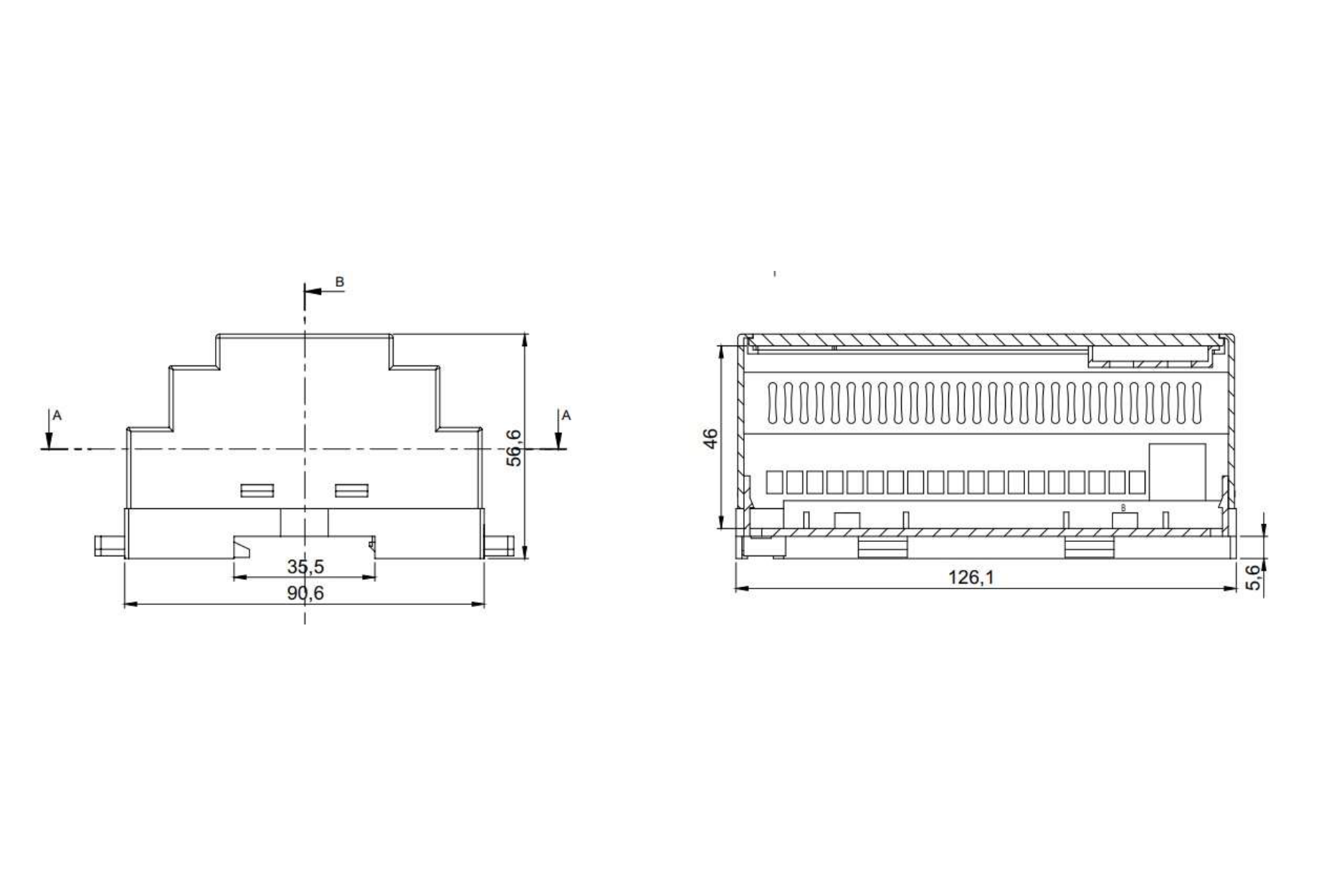

- Dimensions: 126x57x91mm
- Weight: 350 grams

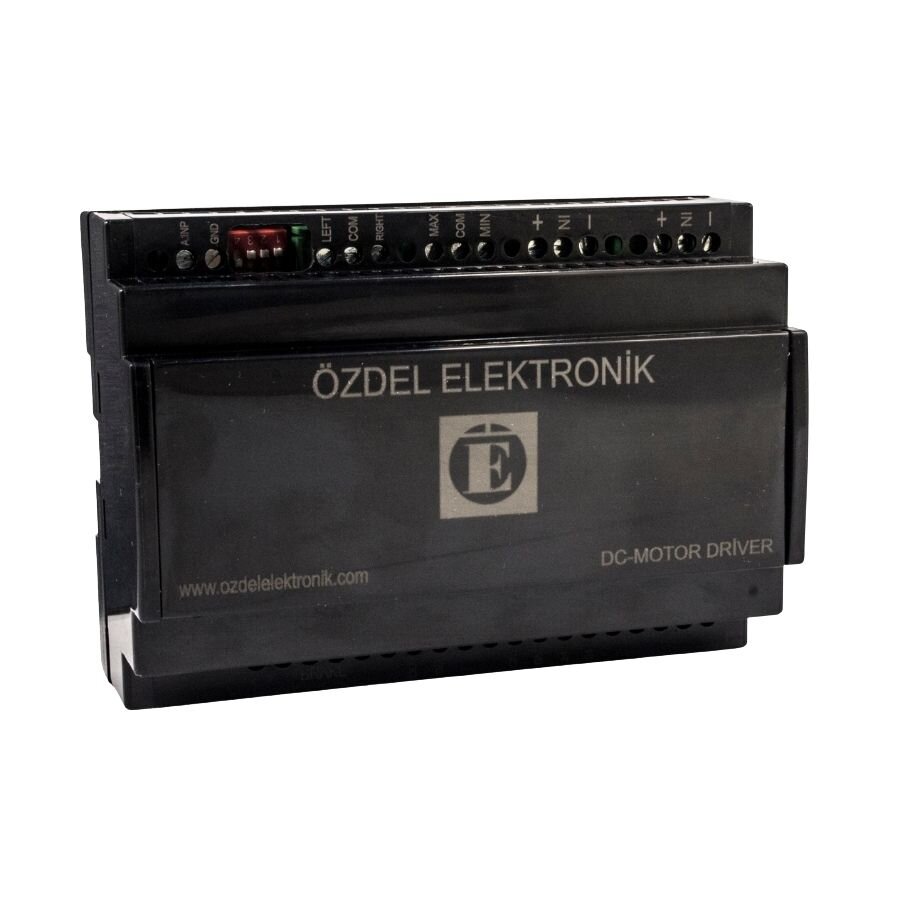

DIP Switch Features
- DIP SWITCH 1 MODE ON/OFF
Automatic operation via proximity switch and direction terminals. When the motor detects sensors, it continues to operate clockwise and counterclockwise without stopping. Direction terminals are included in this function.
- DIP SWITCH 2 MODE ON/OFF
Manual operation with proximity switch and direction terminals. If the DC motor is running in one direction when a sensor is triggered, it stops and does not continue in the same direction. It waits for a signal in the opposite direction. Once the sensor is cleared and a new signal is received, it resumes operation.
- DIP SWITCH 3 MODE ON/OFF
Single direction operation.
- DIP SWITCH 4 MODE ON/OFF
Operates upon signal input. When a signal is received on the "Left" direction terminal, the DC motor starts running and continues in the same direction until the signal is cut. The same applies to the "Right" direction terminal.
