DRV8833 2 Channel DC Motor Driver

DRV8833 2 Channel DC Motor Driver

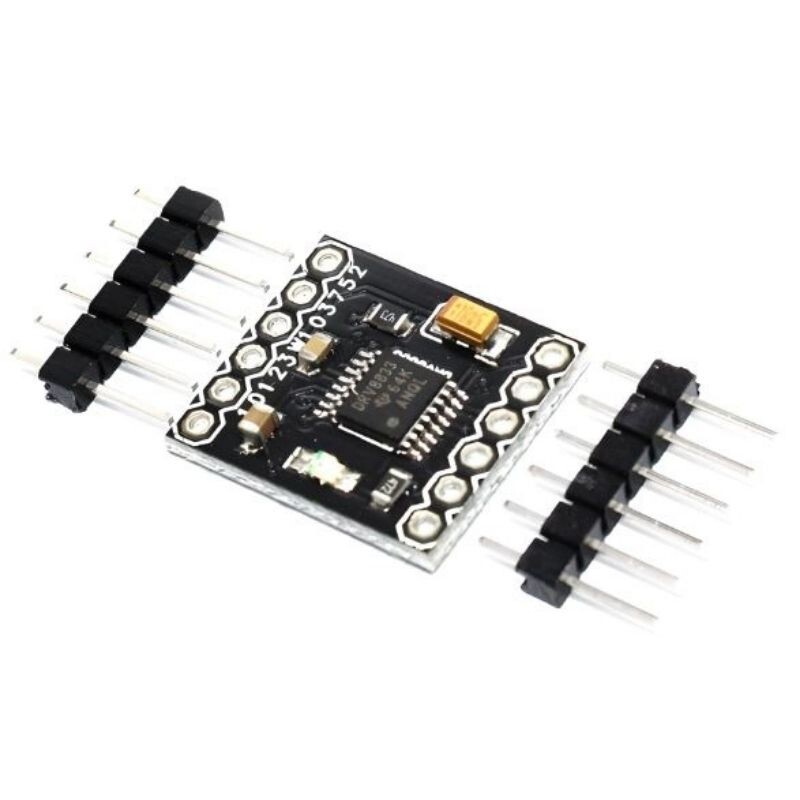

DRV8833 2 Channel DC Motor Driver is a two-channel H-bridge motor driver circuit board that can be used to drive two DC motors or one stepper motor. . There are a total of 12 pins, four output and four input. Each output can deliver up to 2A peak current with internal limiting along with overcurrent, overtemperature, short circuit and undervoltage protection

DRV8833 Datasheet

Features

• Supply Voltage: 3 - 10 VDC
• Rated Current: 2A
• Overcurrent, short circuit, low voltage, overheat protection
• Size: 18.5x16mm

Connection
