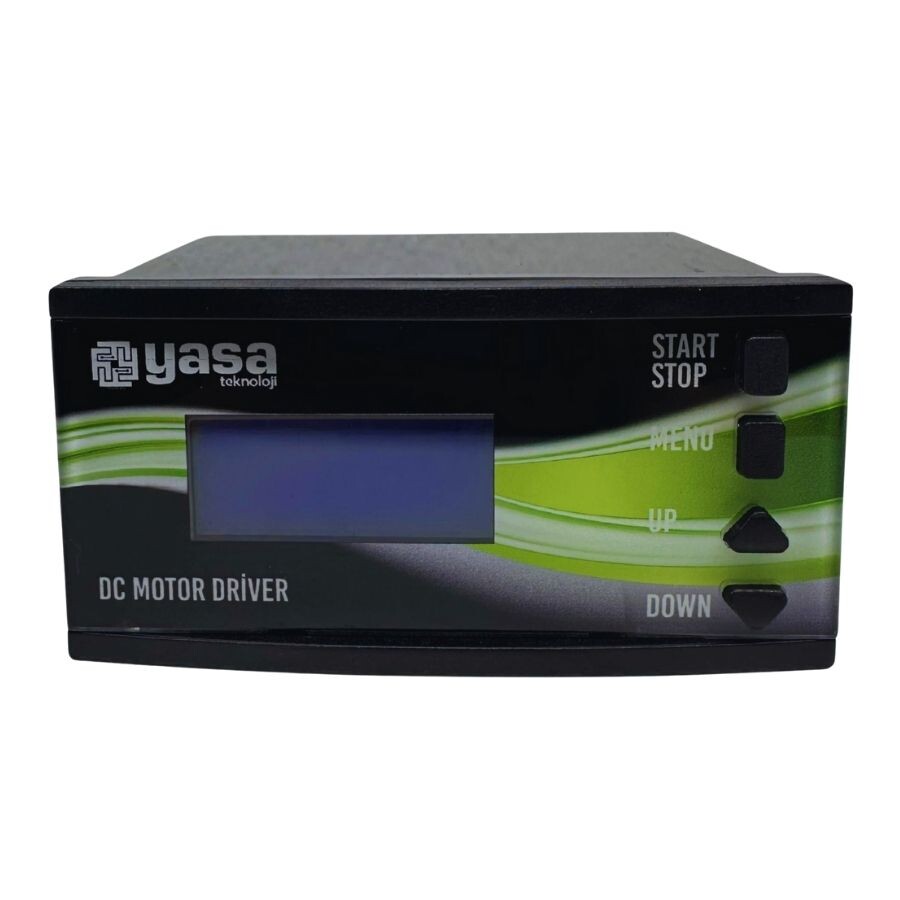

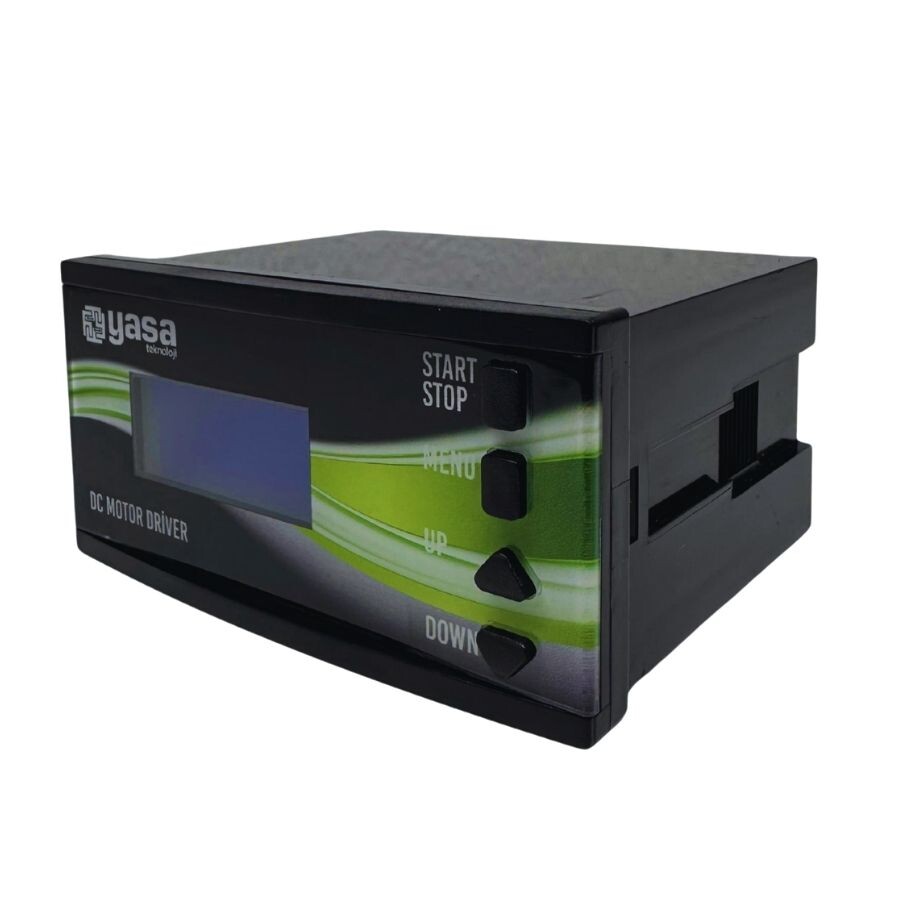

DC Tech Drive Ultra 150W DC Motor Driver

DC Tech Drive Ultra 150W DC Motor Driver

The DC Tech Drive Ultra 150W DC Motor Driver is suitable for all DC motors between 12V and 24V. It is a PLC-controlled, single-direction DC motor driver. It can handle output power up to 150W. Thanks to its LCD screen, it offers ease of use and readability.

Specifications

• Model: DC Tech Drive Ultra 150W DC Motor Driver
• Maximum Power: 150W
• Operating Modes: External speed control via mode selection on screen: 0-10V, 4-20mA, or POT
• Manual control option for speed adjustment via buttons on the screen
• Dimensions: 105x55x90mm (Width x Height x Depth)

Additional Features

• Resistant to instantaneous loads
• Suitable for speed control via PLC
• Easy installation on panel-din rails

Datasheet
