X0910 10A 9-60V PWM DC Motor Direction and Speed Control Module

X0910 10A 9-60V PWM DC Motor Direction and Speed ​​Control Module

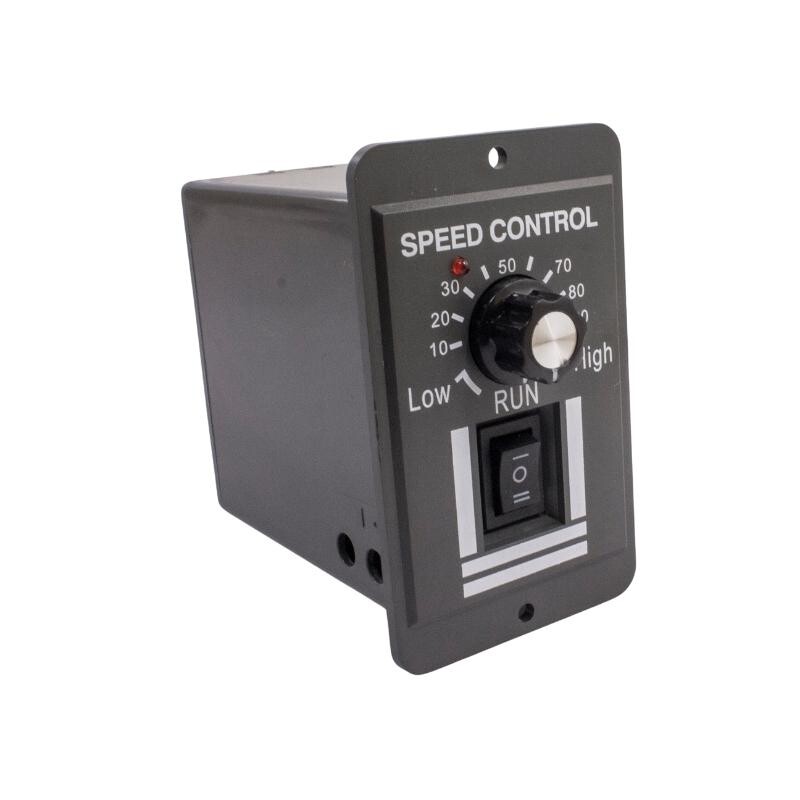

X0910 10A 9-60V PWM DC Motor Direction and Speed ​​Control Module, made of high quality material, durable It is a motor direction and speed control module with a long-lasting structure. It is a module that you can use on DC motors up to 9-60V 10 amps and adjust the speed and rotation direction. Thanks to the switch on it, you can adjust the direction of rotation of the motor or stop the motor.

The "I" position on the switch adjusts the forward rotation, the "O" position adjusts the motor to stop, and the "II" position adjusts the reverse rotation.

Specifications

• Model: X0910
• Supply Voltage: 9-60V DC
• Peak Current: 10A
• Continuous Current: 6A
• Dimension: 99x60x90mm

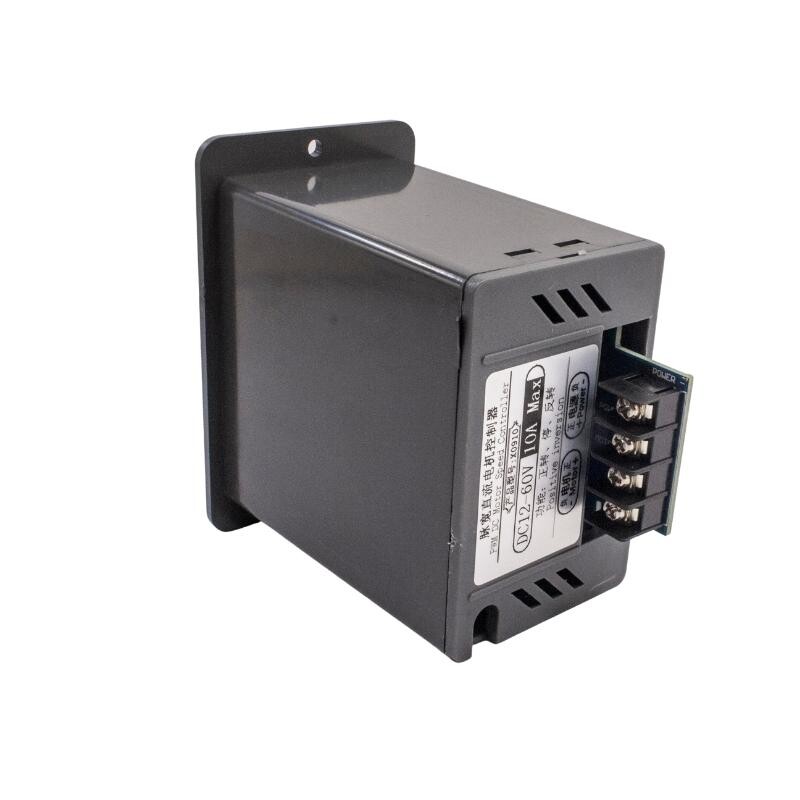

Pinout

Interface

Size
