1.5–6V 24 RPM 190 Smart Door Lock Motor

1.5–6V 24 RPM 190 Smart Door Lock Motor

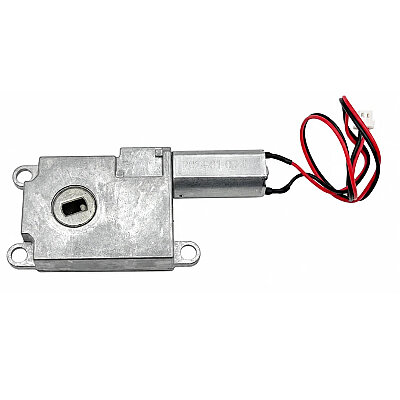

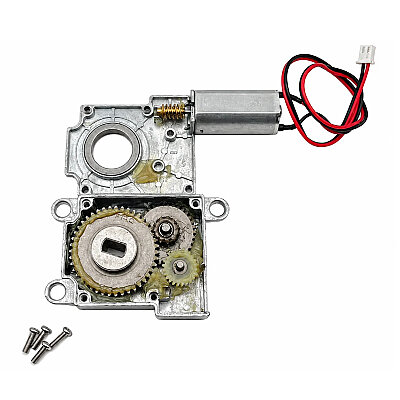

The 1.5–6V 24 RPM 190 Smart Door Lock Motor is a DC worm-gear reduction motor designed for mechanical applications that require high torque at low speeds. The high-speed rotational motion of the DC motor is converted into a lower output speed with higher torque via a worm-gear reduction system.

It is specifically intended for use in smart door locks and fingerprint-based locking mechanisms. The worm-gear design allows for high reduction ratios within a compact form factor, ensuring stable output for systems—such as locking mechanisms—that require controlled movement.

Specifications

• Supply Voltage: 1.5 – 6V DC
• No-Load Current: 0.09A @ 3V
• Load Current: 1.5A @ 3V
• Speed: 24 RPM @ 3V
• Base Motor: 190 Motor
