NTTT25RZA1 12V Toilet Seat Motor - Right

NTTT25RZA1 12V Toilet Seat Motor - Right

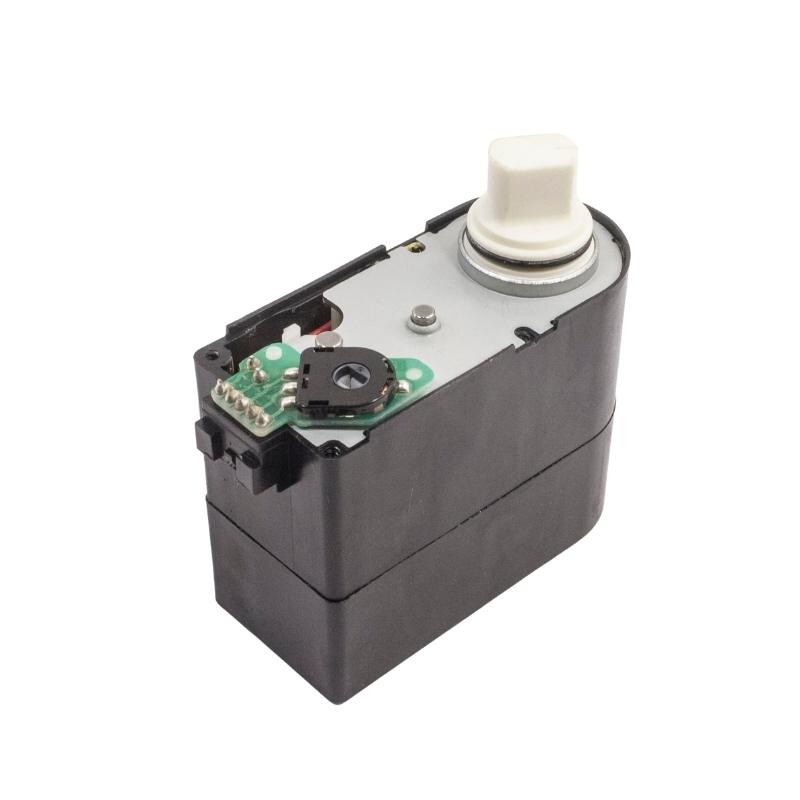

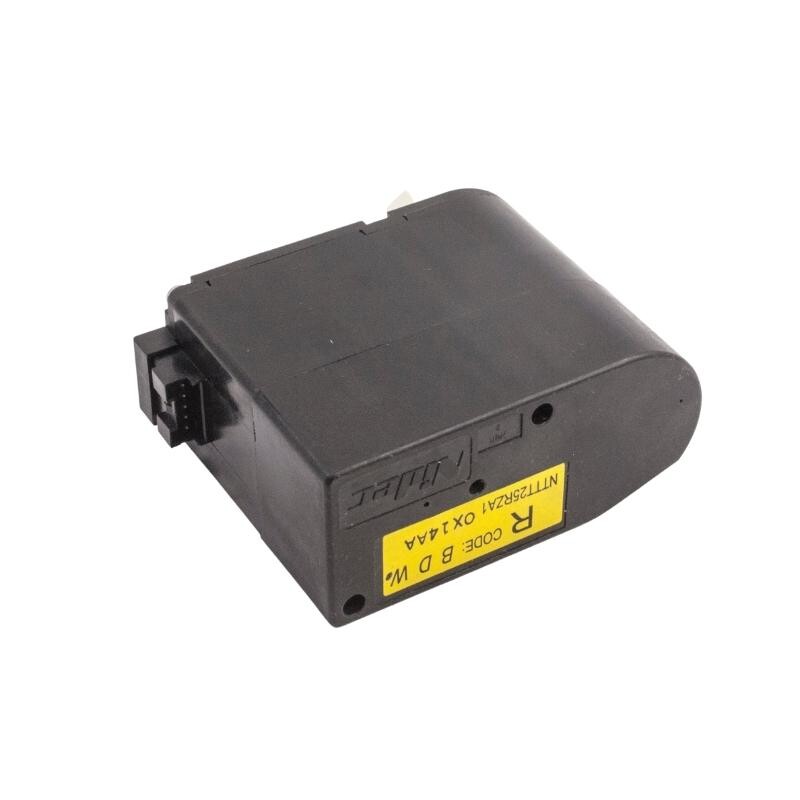

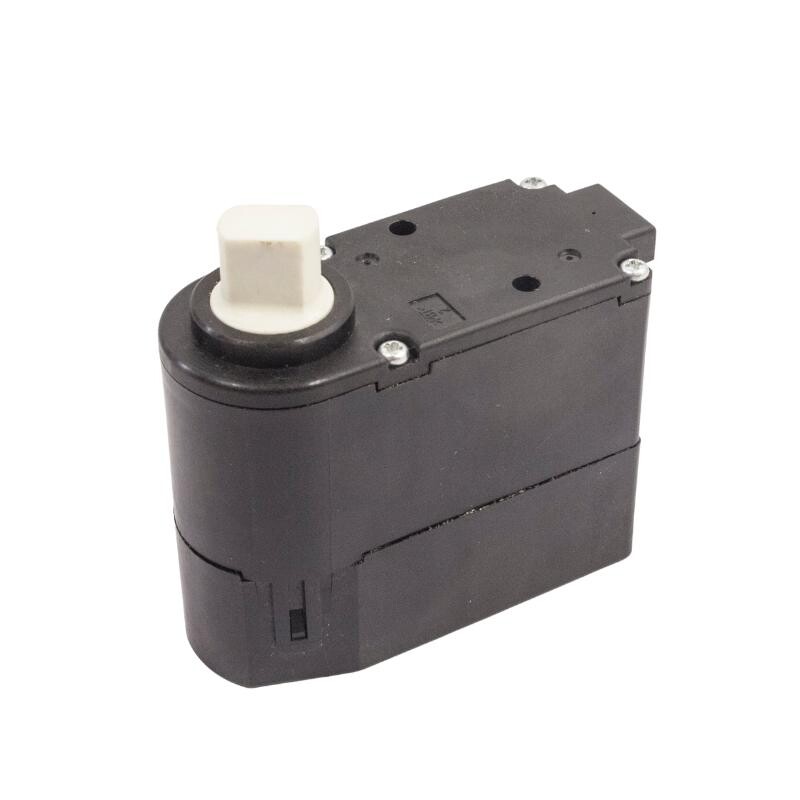

NTTT25RZA1 12V Toilet Seat Motor - Right is the 12V toilet seat motor used in smart toilets. It is used to open the toilet seat in smart toilets. It works with 12VDC. The turning angle is 200°. This angle can be adjusted with the potentiometer on it.

Pinout

• Motor (-)
• Motor (+)
• Potentiometer VCC 5VDC
• Potentiometer Output
• Potentiometer GND

Technical Specifications

• Supply Voltage: 12VDC
• Rotation Angle: 200°
• Rotation Direction: Right
• Shaft Size: 48.5x52.5mm
• Shaft Length: 51.5mm
