NTTT25LZA1 12V Toilet Seat Motor - Left

NTTT25LZA1 12V Toilet Seat Motor - Left

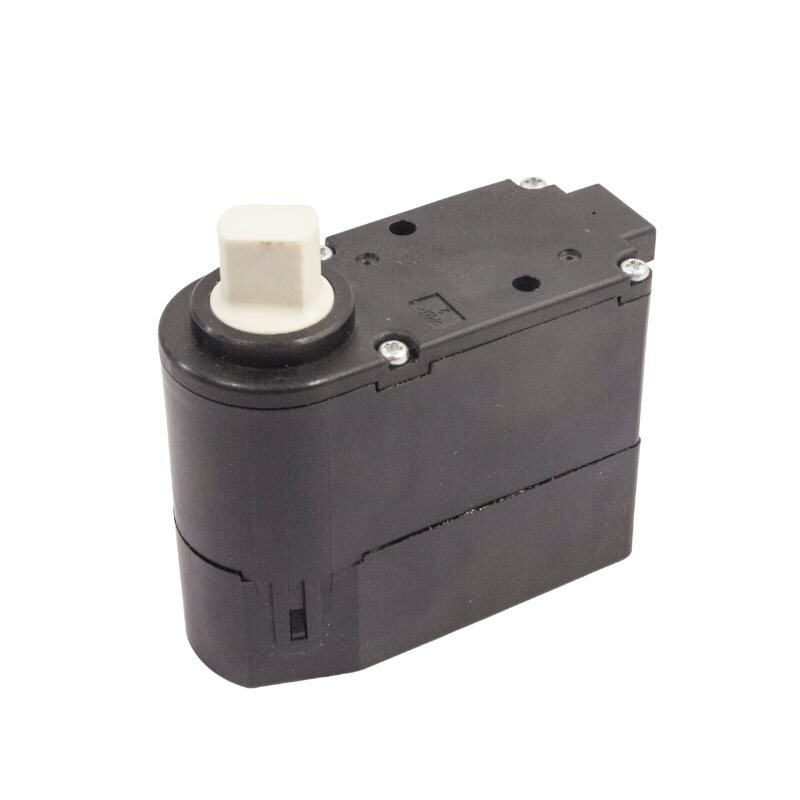

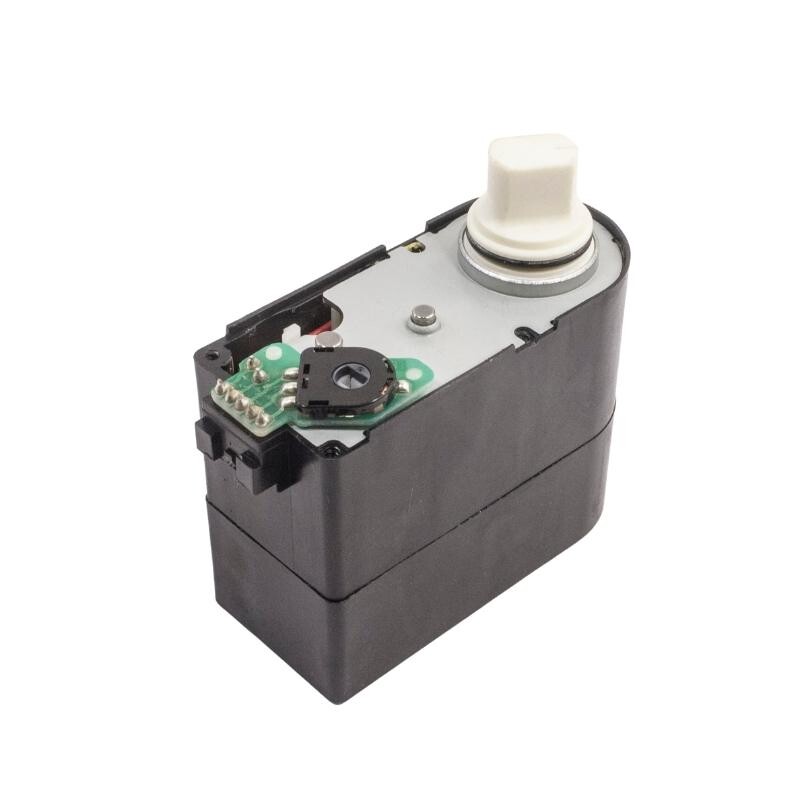

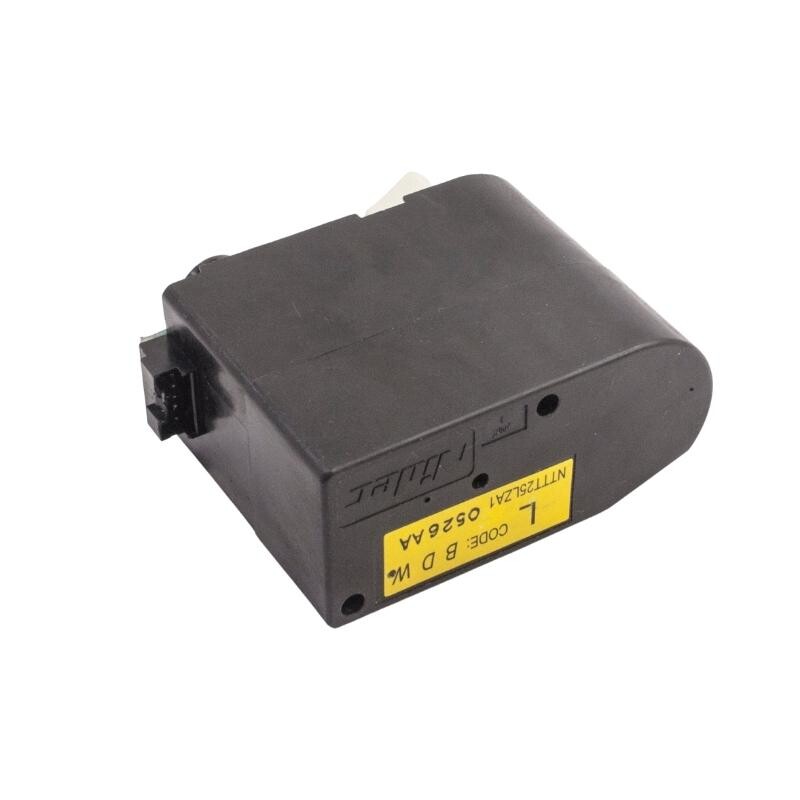

NTTT25LZA1 12V Toilet Seat Motor - Left is the 12V toilet seat motor used in smart toilets. It is used to close the toilet seat in smart toilets. It works with 12VDC. The turning angle is 200°. This angle can be adjusted with the potentiometer on it.

Pinout

• Motor (-)
• Motor (+)
• Potentiometer VCC 5VDC
• Potentiometer Output
• Potentiometer GND

Technical Specifications

• Supply Voltage: 12VDC
• Rotation Angle: 200°
• Rotation Direction: Left
• Shaft Size: 48.5x52.5mm
• Shaft Length: 51.5mm
