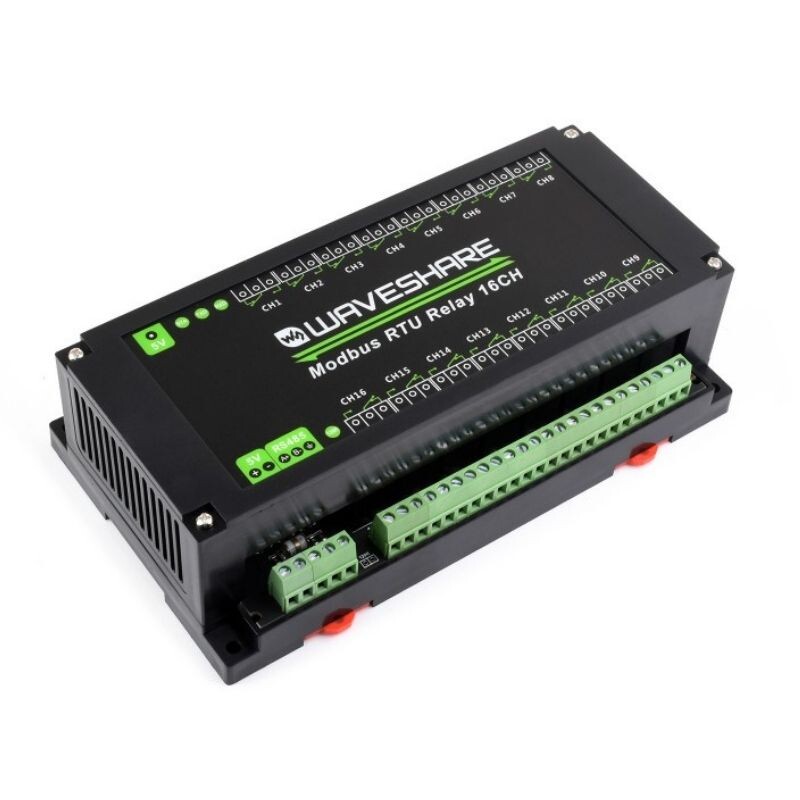

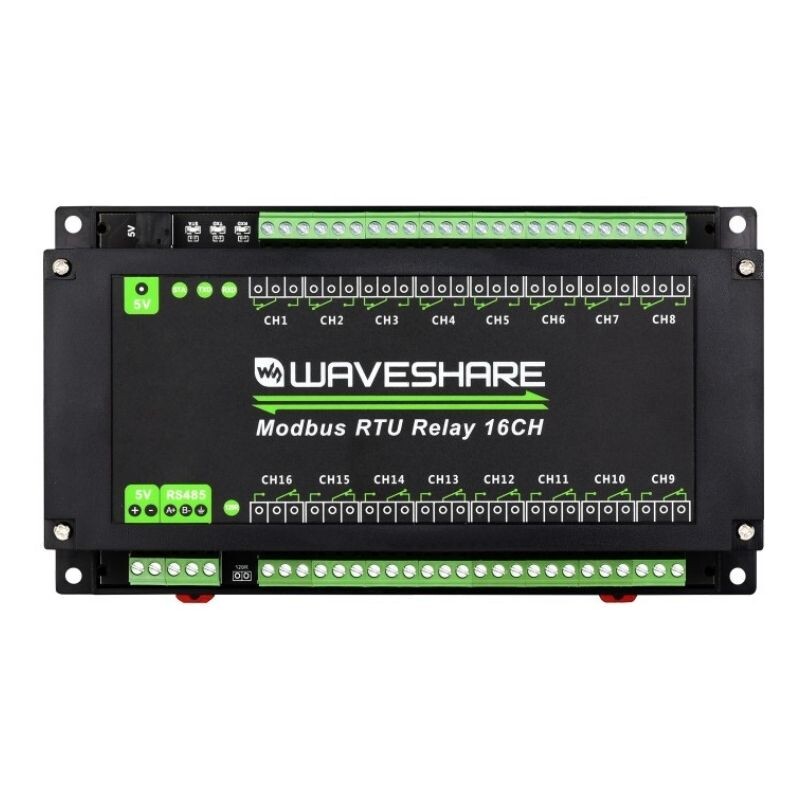

16 Channel Modbus RTU Ethernet Relay Module - RS485 Interface is an industrial grade RS485 interface controlled 8DI / 8DO digital isolated input-output module. It supports passive input/active input, uses Modbus RTU protocol, and includes internal protection circuits such as power isolation, optocoupler isolation, self-resetting fuses and TVS.

For detailed information, please visit  wiki page.

Features

• Configurable device address (1~255), multiple devices can be connected to RS485 bus
• SKU: 24921
• With flash-on, flash-off function has, it is possible to open the relay for a while by passing argument to the command and then close it automatically
• Built-in single-body power supply isolation, provides stable isolated voltage, does not need extra power supply for isolated terminal
• Built-in single-body magnetic isolation, enables signal isolation, high reliability, strong anti-interference, low power consumption
• Built-in resettable fuse and TVS (Transient Voltage Suppressor) effectively suppress the surge voltage and transient surge voltage in the circuit, provide over-current/over-voltage protection, lightning-proof and anti-electrostatic
• Built-in Optocoupler isolation, prevent the relay from being blocked by high voltage circuit
• Built-in special relay driver chip, with built-in freewheeling diode protection, driving ability is stronger and more stable
• Reverse protection circuit, prevents the circuit from being accidentally damaged by wrong connection
• High-quality relay, contact rating: ≤10A 250VAC/30VDC

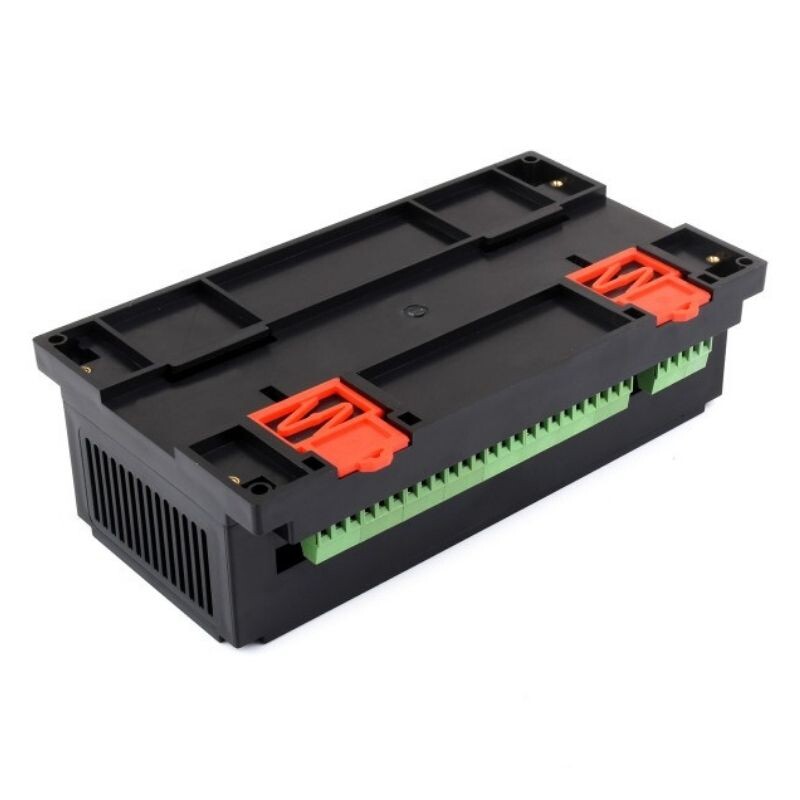

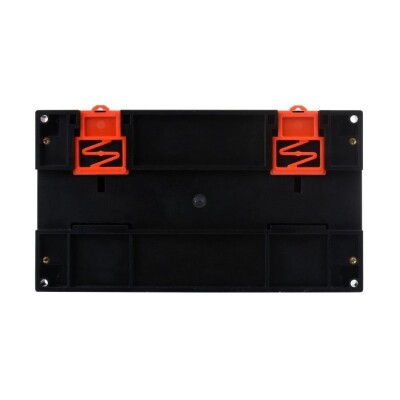

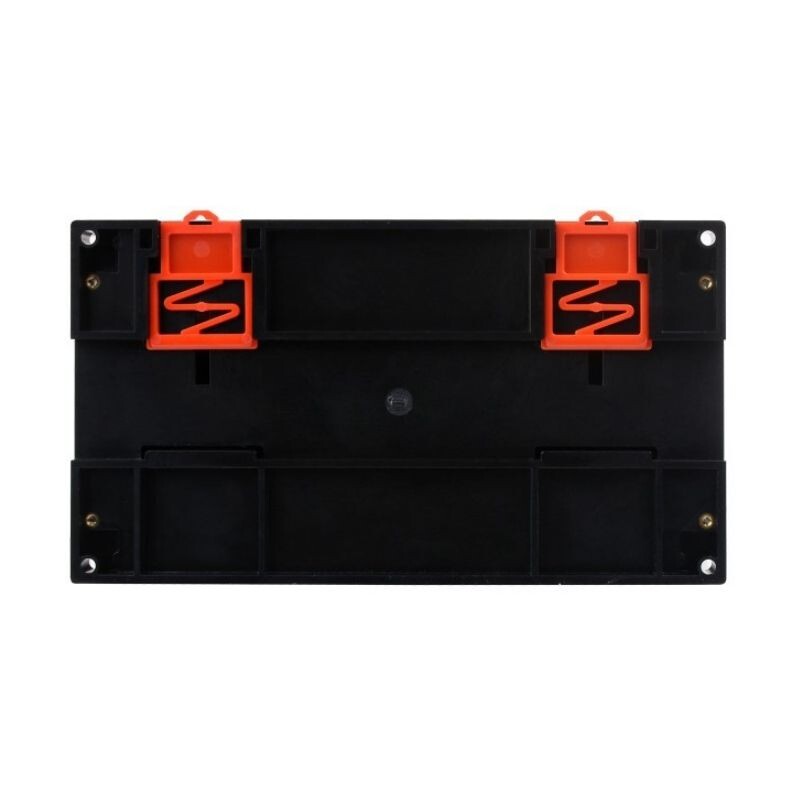

• ABS case with rail mounting, easy to install, safe to use
• 3 LEDs to indicate MCU status and signal transmission status
