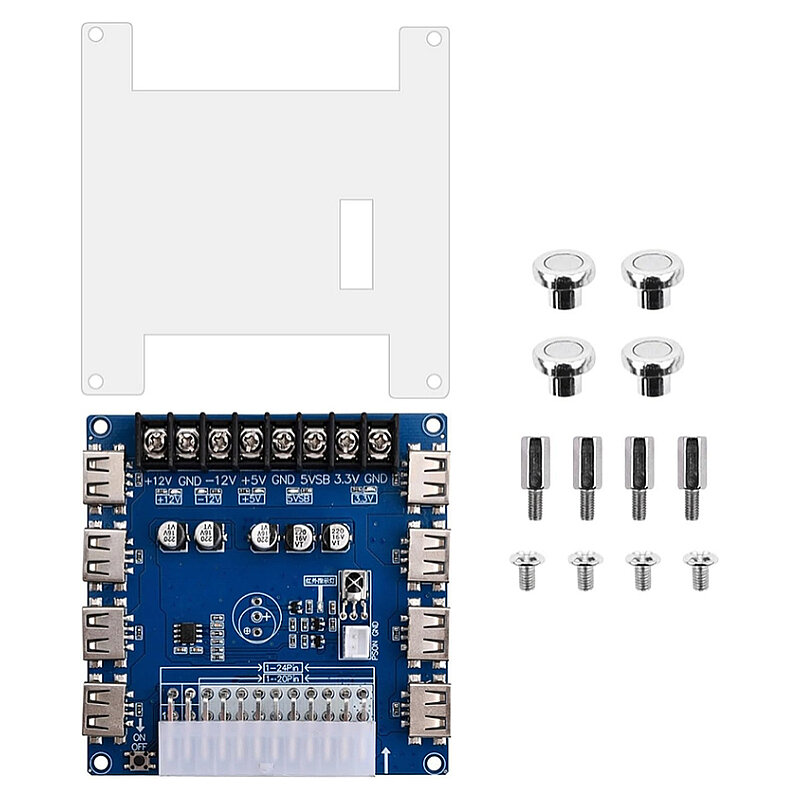

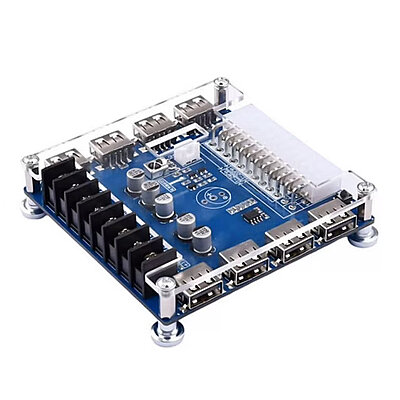

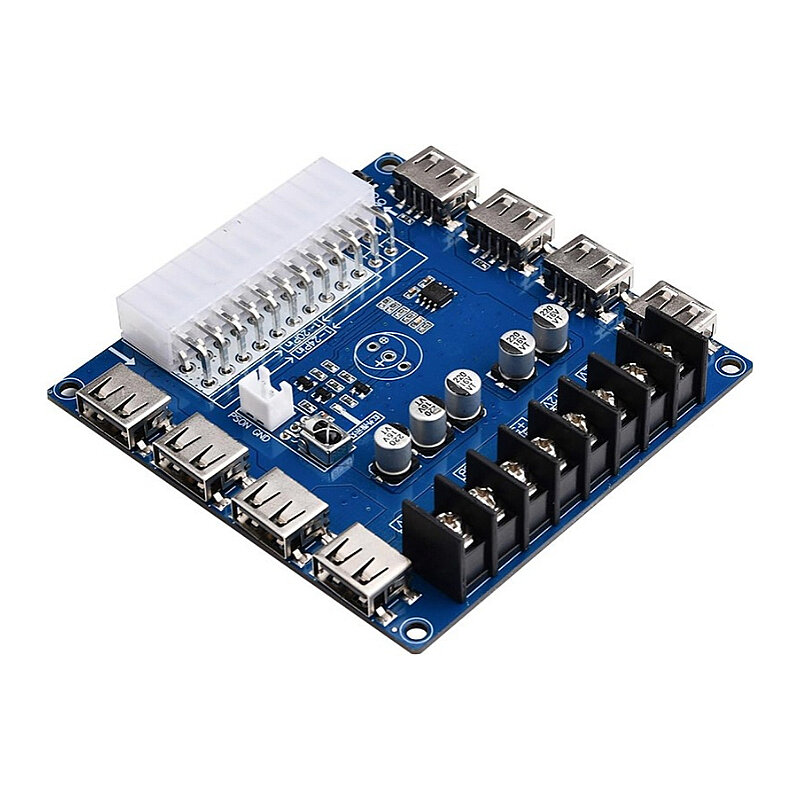

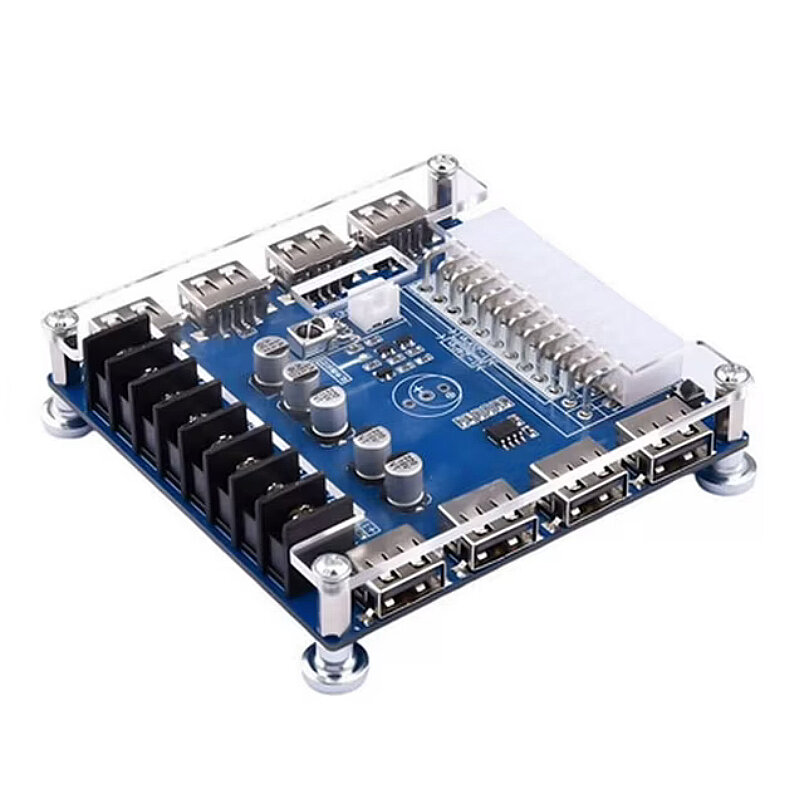

20-Pin/24-Pin ATX Power Supply Distribution Module

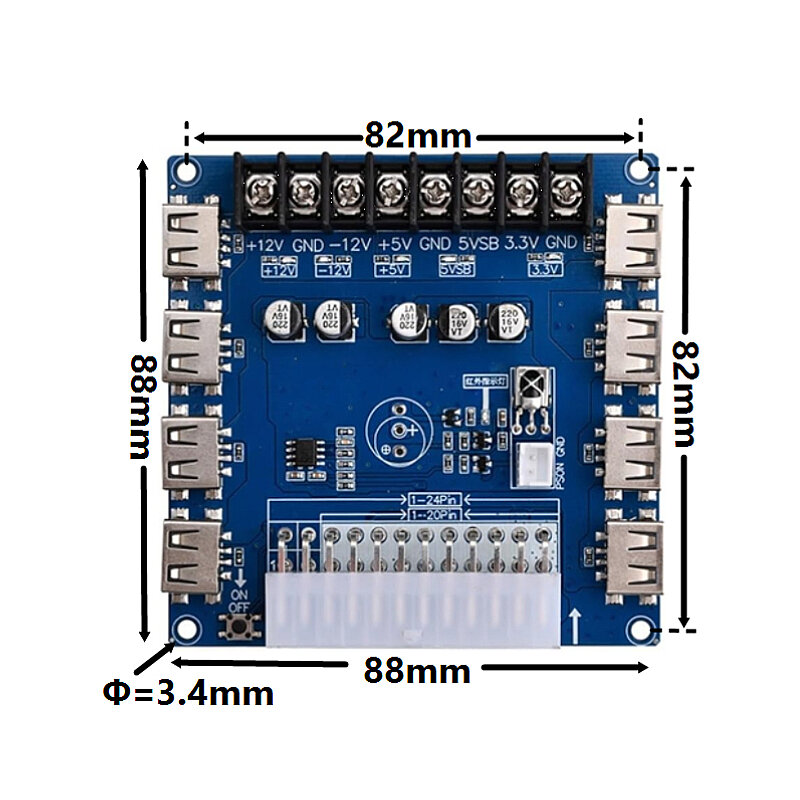

The 20-Pin/24-Pin ATX Power Supply Distribution Module is a power distribution unit that provides easy and organized access to various DC voltage rails by utilizing the 20-pin or 24-pin ATX connector found on standard desktop computer power supplies.

With this module, +12V, -12V, +5V, 5VSB, and +3.3V outputs can be accessed via dedicated connection terminals from an ATX PSU—such as one that is otherwise unused or one being repurposed as a desktop power supply.

Thus, multiple supply lines can be obtained from a single ATX power supply for applications such as electronic circuit testing, prototyping, motor and fan testing, LED systems, and various low-voltage electronic applications.

Features

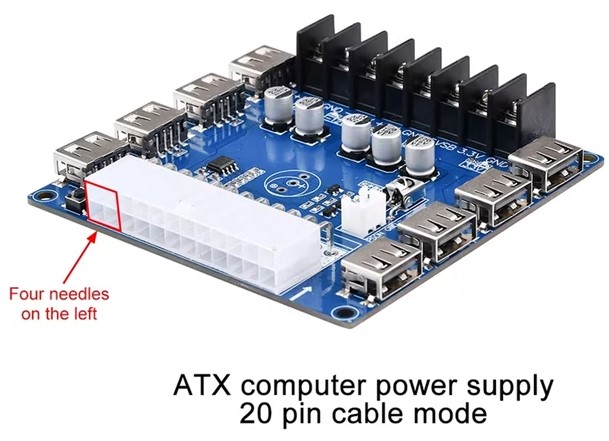

• ATX Input: 20-pin / 24-pin compatible

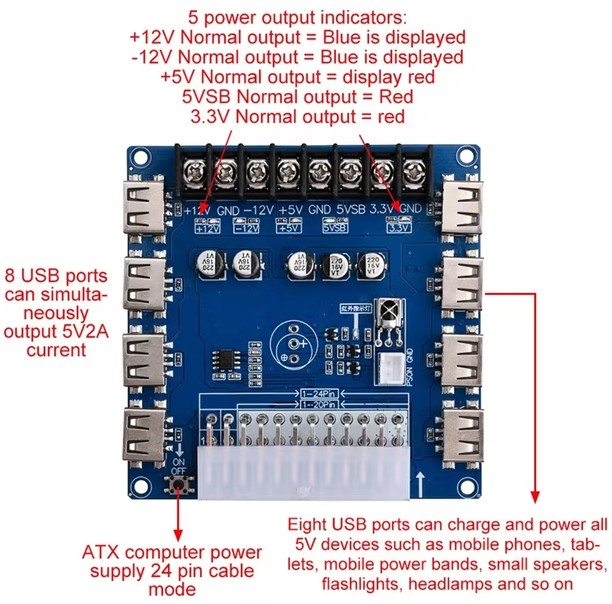

• Output Voltages: +12V, -12V, +5V, +5VSB, +3.3V
• USB Output: 8 x USB-A ports
• USB Voltage: 5V DC
• Max Current per USB Port: Up to 2.1A
• Main DC Output Connection: High-current terminal blocks
• Terminal Block Rating: 300V / 20A
• Actual Output Current: Depends on the capacity of the specific voltage rail of the ATX PSU used
• 5VSB Output: Included
• -12V Output: Included

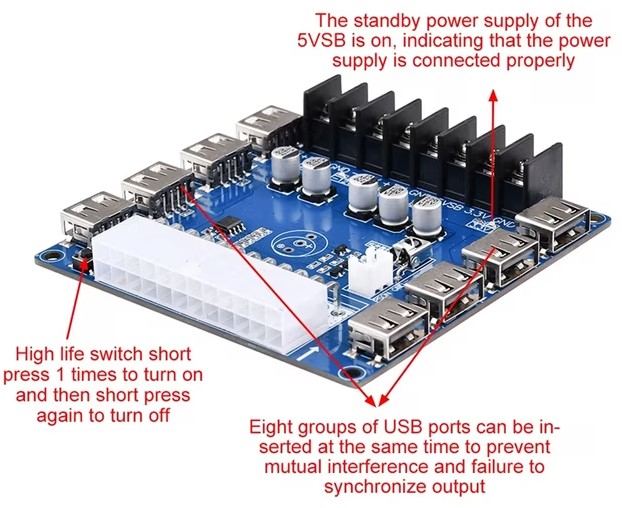

• Power On/Off Control: On-board
• External Power Control Input: XH2.54-2P
