APS3010H 30V 10A Programmable Adjustable DC Power Supply
APS3010H 30V 10A Programmable Adjustable DC Power Supply

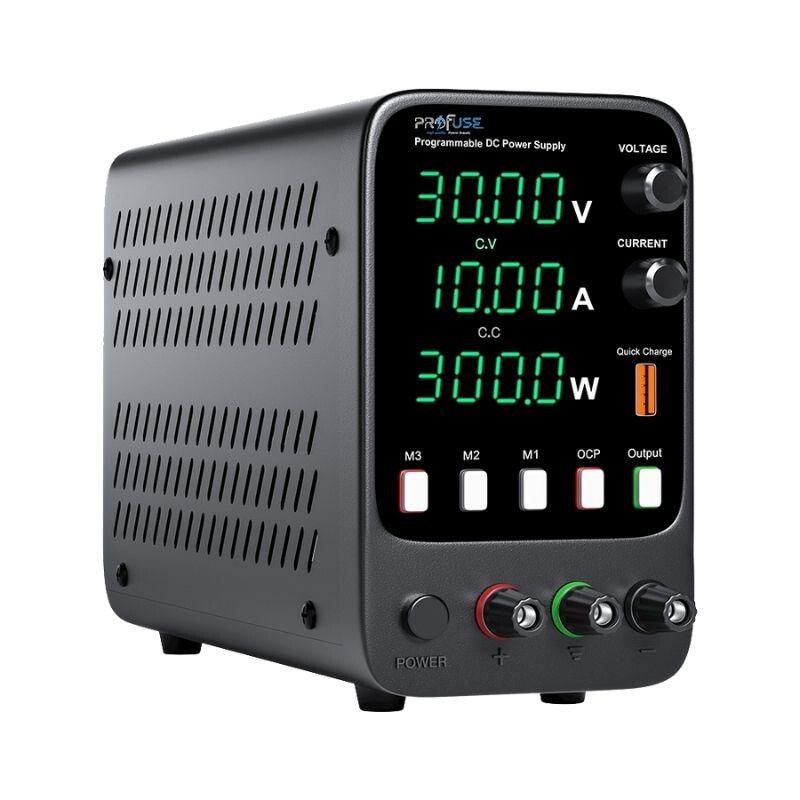

APS3010H is a high precision DC power supply that can output up to 10A between 0-30V. There is an adjustment encoder on the product that allows you to adjust voltage and current. There is a V/A button on the power supply. When you press these encoders, which allow adjustment, the adjustment sensitivity may change.
There is an OCP short circuit overcurrent protection button on the product. OCP is a function that protects against overcurrent situations in short circuit situations.
The product does not provide direct output. You can get output when you press the output button on it.
APS3010H model has a memory feature. You can save the voltage-ampere data you set with the M1, M2, M3 keys on the device, and then quickly access that setting with the registered key.
APS3010H, Thanks to its modern design and circuit structure, it is lighter than old type power supplies. It also has a USB output that allows charging phones and similar 5V devices.
Features:
- Model: APS3010H
- Input: 220V AC (outlet)
- Output Voltage: 0-30.00V
- Current: 0-10.00A
- Resolution: 0.01V / 0.001 A
- Accuracy: 0.5±20
- OVP: High Voltage Protection
- OCP: High Current Protection
- OPP: High Power Protection
- OTP: High Temperature Protection
- SCP: Short Circuit Protection
- Dimension: 190x90x145mm
- Weight: 1.5kg
Product Content:
- APS3010H Power Supply
- AC Power Cord
- English User Manual
- 2 Crocodile Probe Cables
