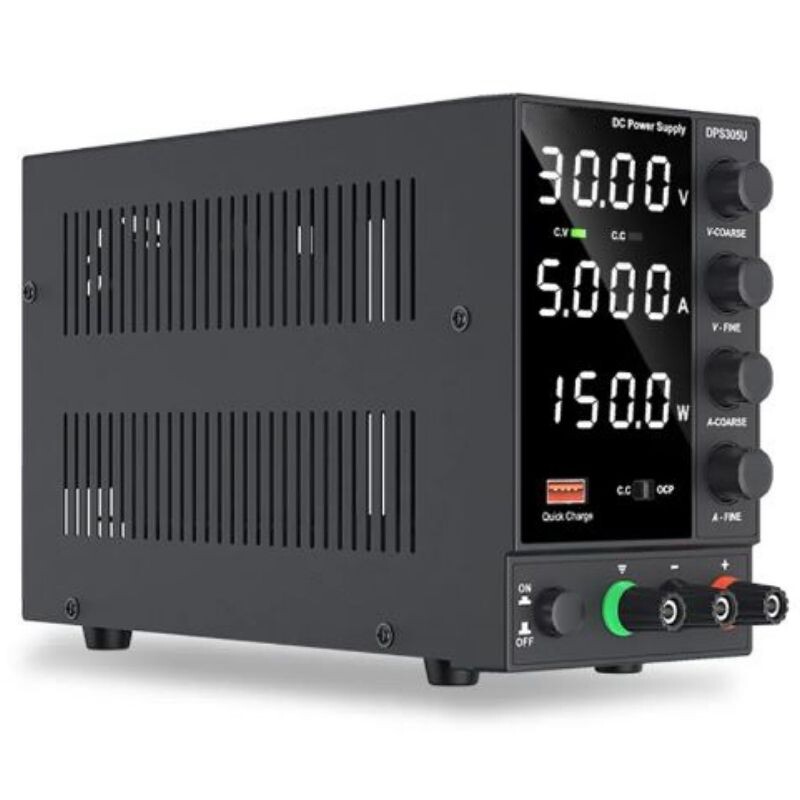

DPS305U 30V 5A Adjustable DC Power Supply

DPS305U 30V 5A Adjustable DC Power Supply

DPS305U is a high precision DC power supply that can output up to 5A between 0-30V. There are two adjustment encoders on the product that allow you to adjust voltage and current. There is a V/A button on the power supply. One of these adjustment encoders is for sensitive and the other is for making changes with lower sensitivity, which we can call quick adjustment.

There is an OCP short circuit overcurrent protection button on the product. OCP is a function that protects against overcurrent situations in short circuit situations.

DPS305U is lighter than old-style power supplies, thanks to its modern design and circuit structure. It also has a USB output that allows charging phones and similar 5V devices.

Features:

• Model: DPS305U
• Input: 220V AC (outlet)
• Output Voltage: 0-30.00V
• Current: 0-5.00A
• Resolution: 0.01V / 0.001 A
• Accuracy: 0.5±20
• OVP: High Voltage Protection
• OCP: High Current Protection
• OPP: High Power Protection
• OTP: High Temperature Protection
• SCP: Short Circuit Protection
• Dimension: 225x145x90mm
• Weight: 1.6kg

Product Content:

• DPS305U Power Supply
• AC Power Cord
• English User Manua
• 2 Pieces Crocodile Probe Cable

DPS305U Datasheet
