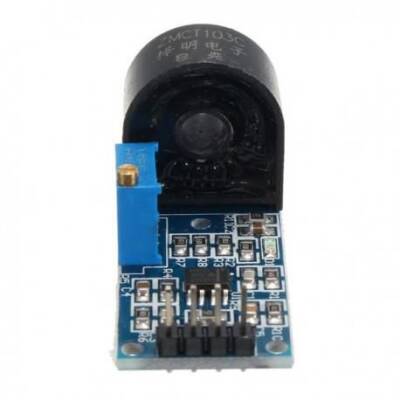

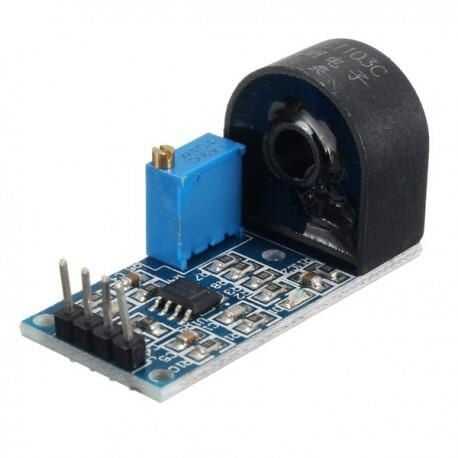

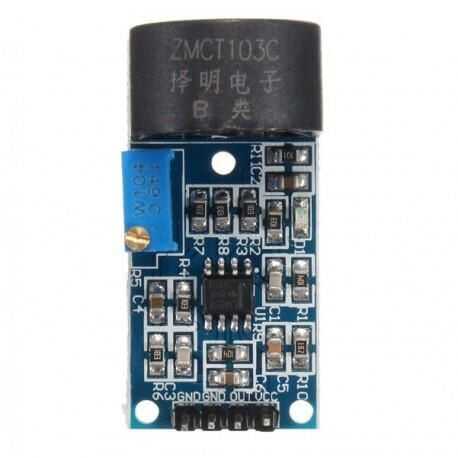

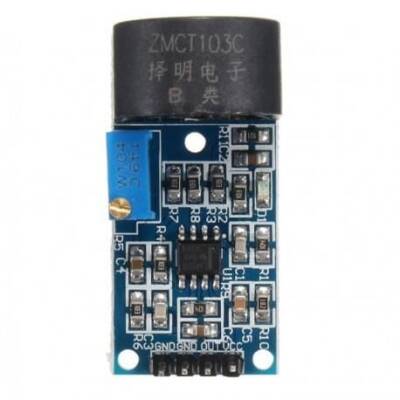

5A Single Phase Ac Current Module
With this module, the current value of AC voltage between 0-5A can be measured. It gives 1/2 VCC AC Voltage signal from the pin ends. The trimpot on it can be used to adjust the output voltage.
Technical Specifications:
- Rated input current: 5A
- Rated output current: 5mA
- Change: 1000: 1
- Phase difference (rated input): ≤20' (100Ω)
- Linearity range: 0 ~ 10A (100Ω)
- Linearity: 0.2%
- Precision rating: 0.2
- Uses insulation voltage: 3000V measurement
- Sealing material: epoxy resin
- Operating temperature: -40 ° C to +70 °
