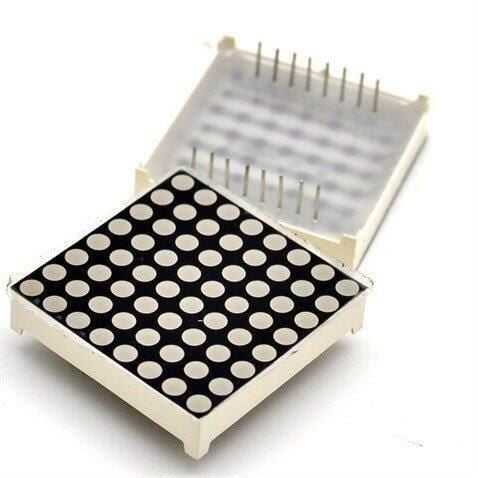

8x8 3mm Dot Matrix Display 1088BS
8x8 dot matrix is a display that you can use in Arduino projects, various electronic and hobby projects.
64 LEDs on the matrix. There are. LEDs are 3mm.
Technical Specifications
- Emitted Color: Red
- Type: Common cathode
- Led size: 3mm
- Peak Wavelength (nm): 625 ~ 630
- Forward Voltage (V): 2.1 ~ 2.5
- Reverse current (uA): <= 20
- Maximum Power Consumption (PM): 40mW
- Maximum Peak Forward Current (IFP): 100mA
- Maximum Continuous Forward Current (IFM): 20mA
- Operating Temperature Range: -30 ~ +70 Degrees
- Size: 32mm X 32mm X 8.0mm
Dot Matrix Arduino Connection
