Max7219 4-in-1 Dot Matrix Module - Blue

Max7219 4-in-1 Dot Matrix Module - Blue

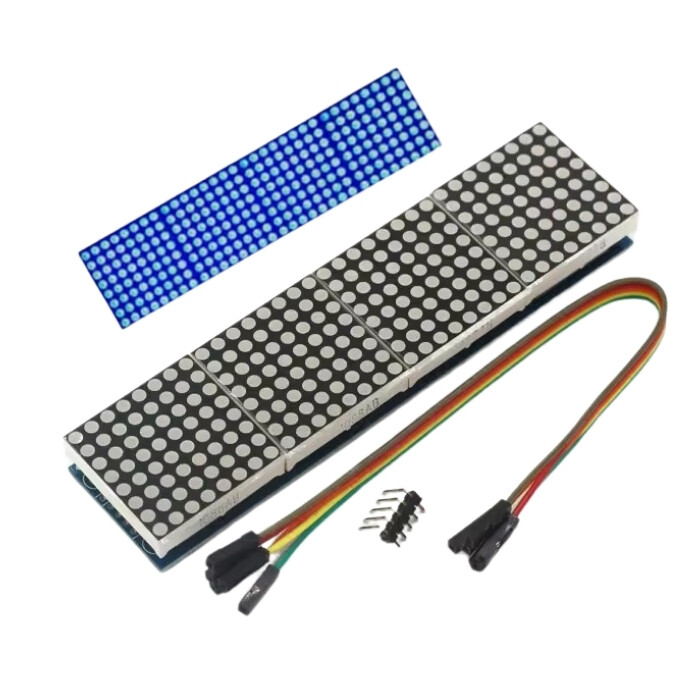

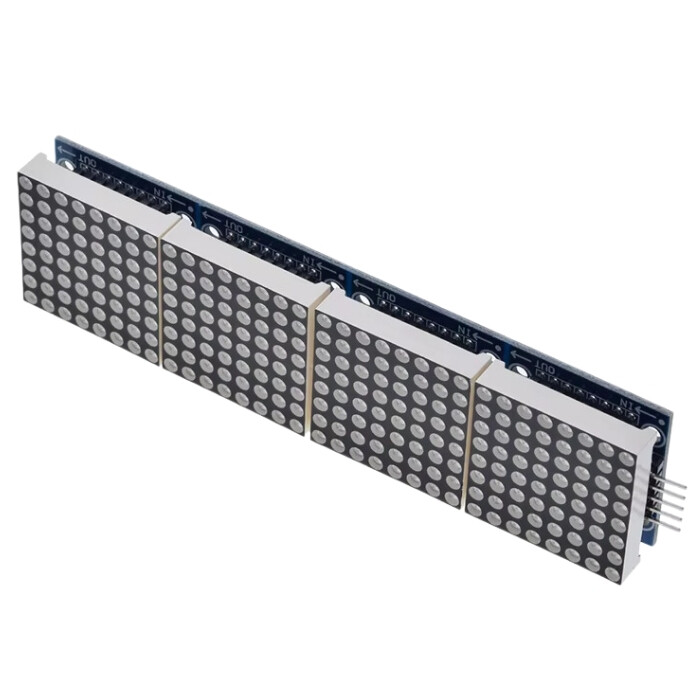

Max7219 4-in-1 Dot Matrix Module - Blue is a Max7219 integrated common cathode display driver. It can be controlled by a microprocessor. The modules contain 8x8 static RAM to store each data.

Features

• Operating Voltage: 5V
• Color: Blue
• 8x8 RAM
• Module Total Size: 12.8x3.2x1.3cm

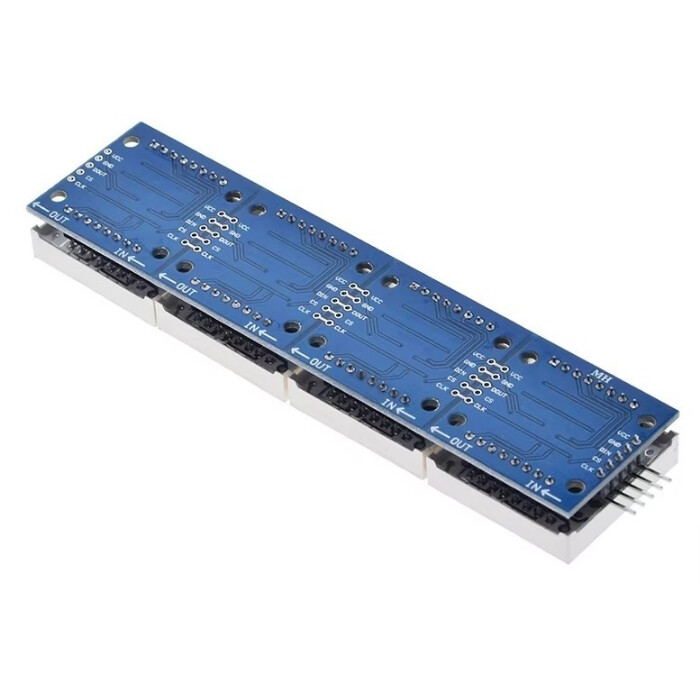

Connection

• VCC --> 5V
• GND --> GND
• DIN --> P2.2
• CS --> P2.1
• CLK --> P2.0
