AC/DC 0-20V 8A 4700UF/35V Rectifier Power Filter

AC/DC 0-20V 8A 4700UF/35V Rectifier Power Filter

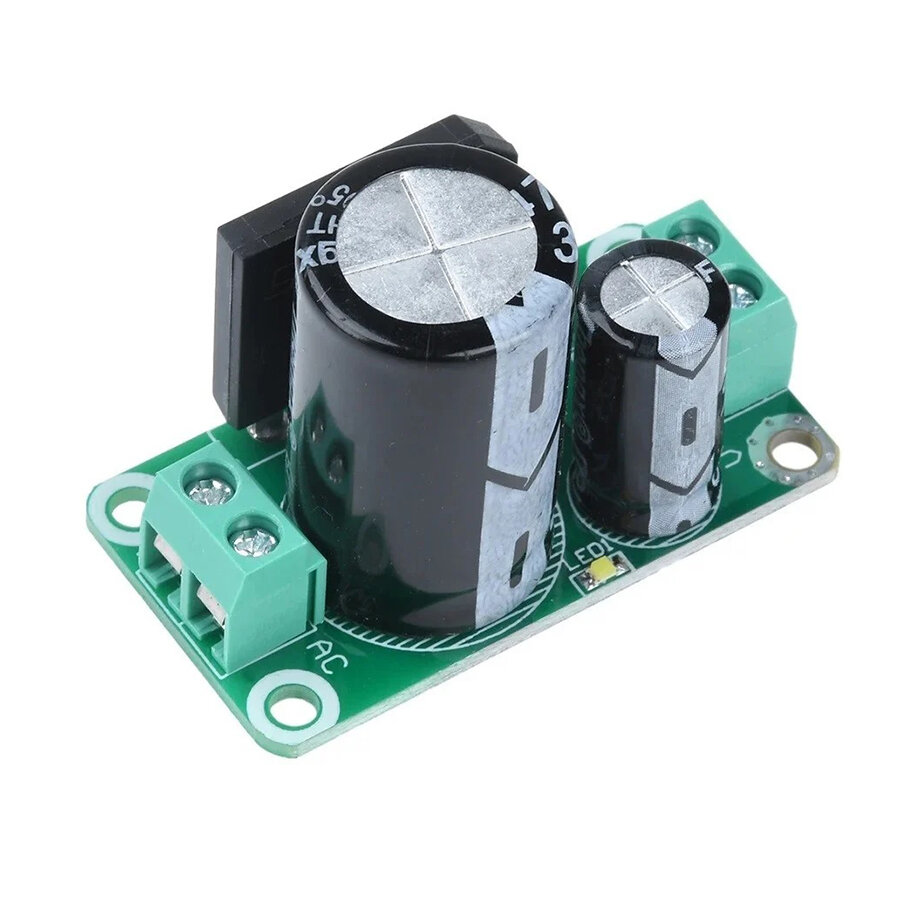

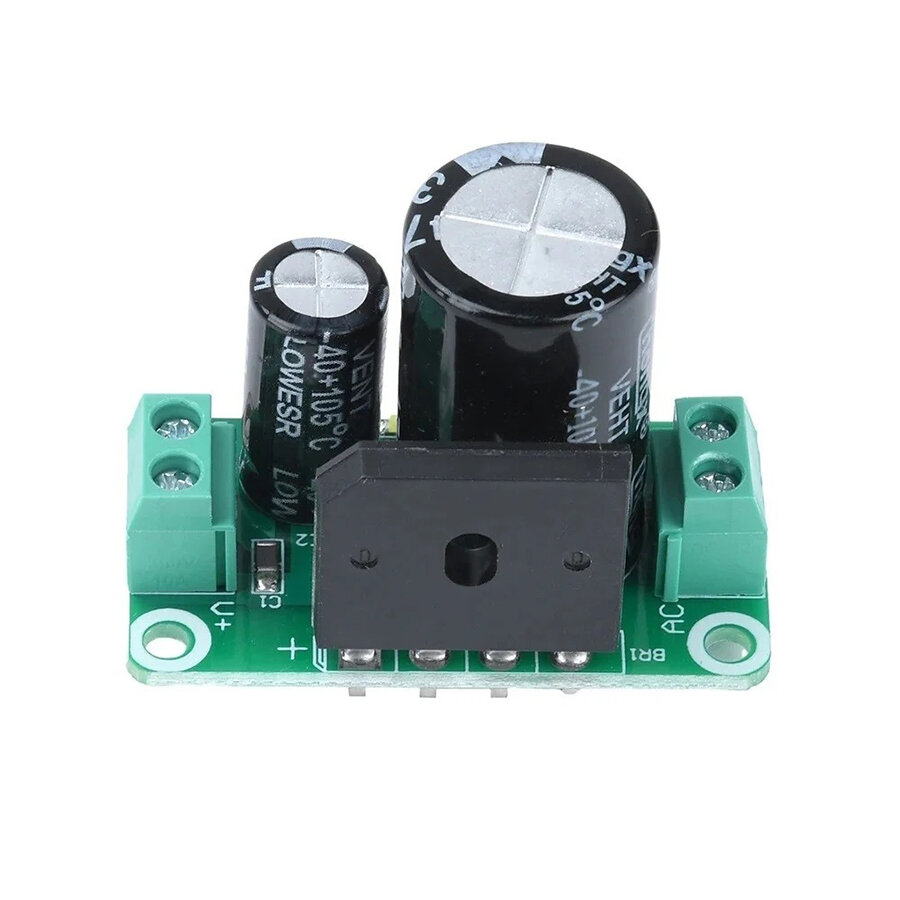

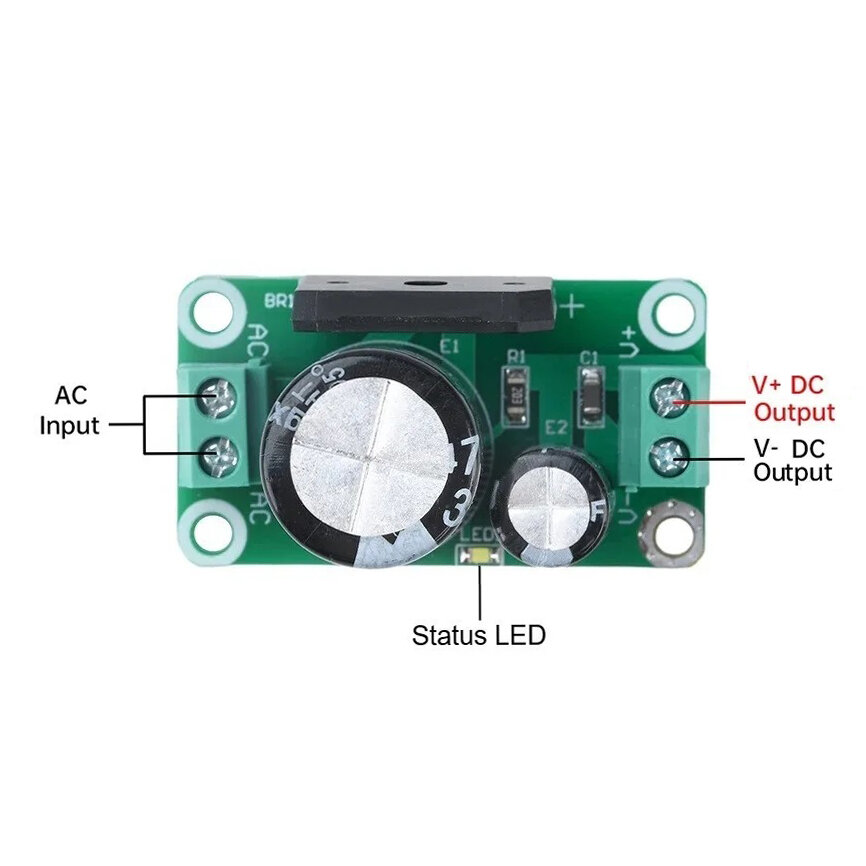

AC/DC 0-20V 8A 4700UF/35V Rectifier Power Filter. Using an 8A bridge rectifier, the device is designed with feedback. When the output current is high, a heatsink should be added. Two large filter electrolytic capacitors provide two-stage filtering. The main capacitor is 4700uf/35V, followed by corresponding smaller 470uF/50V electrolytic capacitors. It is suitable for devices, equipment, audio systems, etc. requiring a 20V power supply and provides a low internal resistance, low ripple power supply.

It is resistant to input voltages from AC/DC 0-20V. It can be used up to a maximum of 8 amps. A heatsink should be used at high currents.
