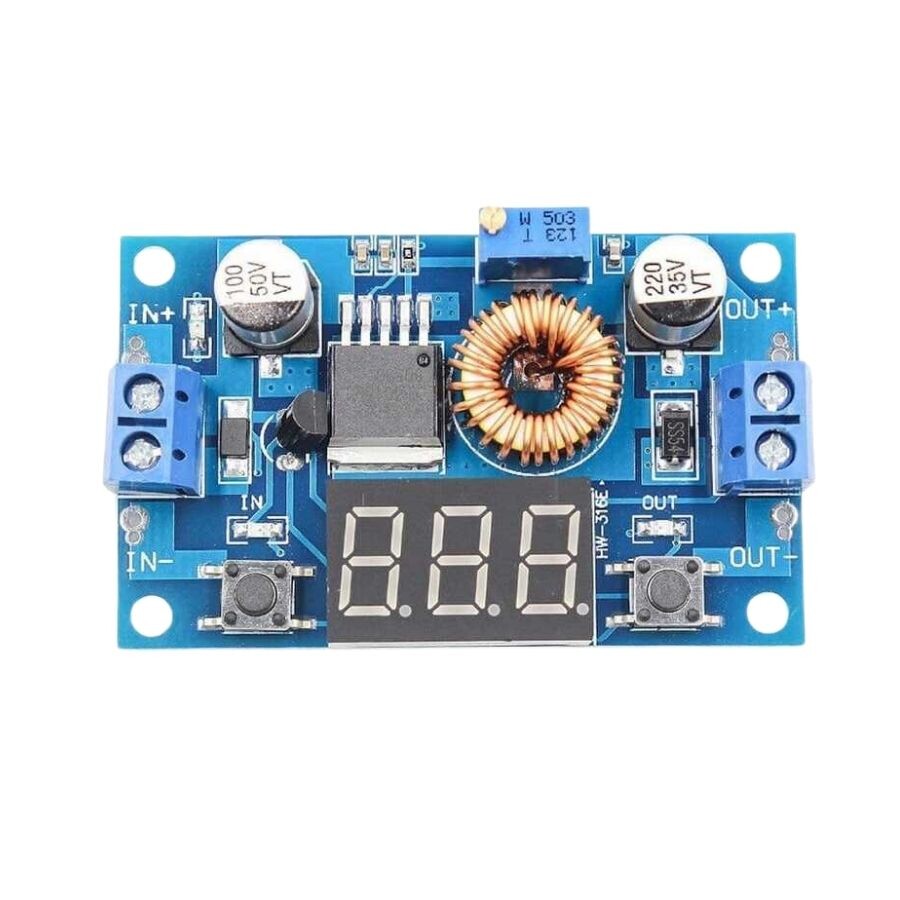

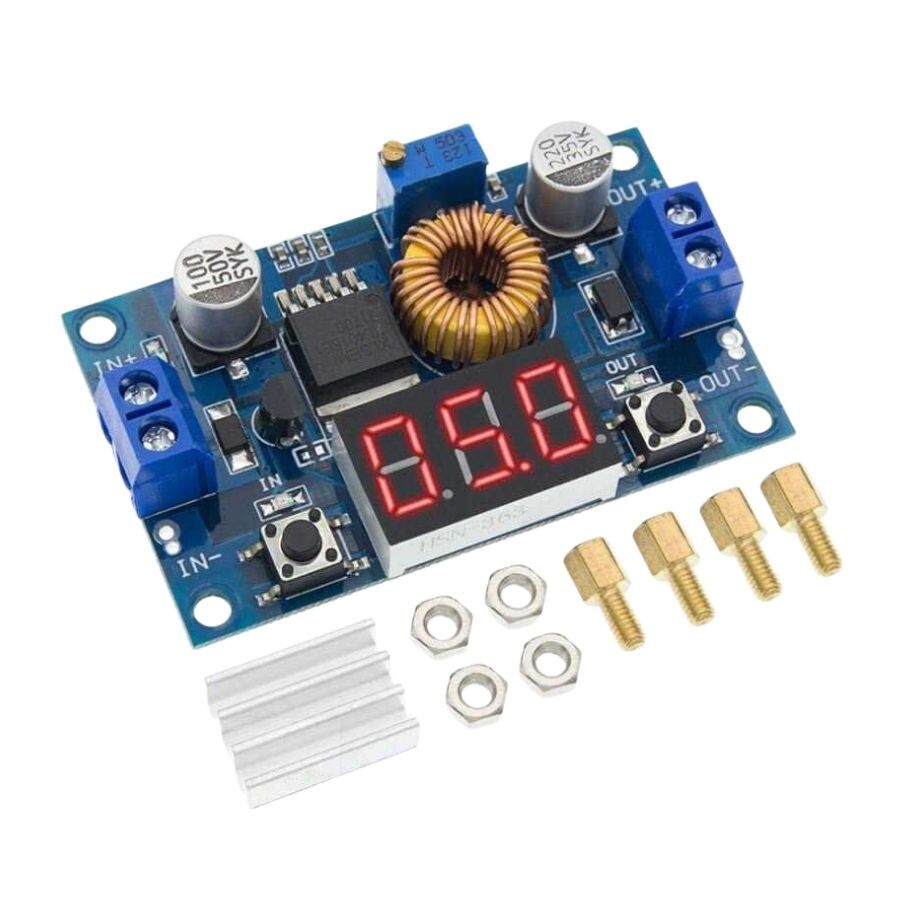

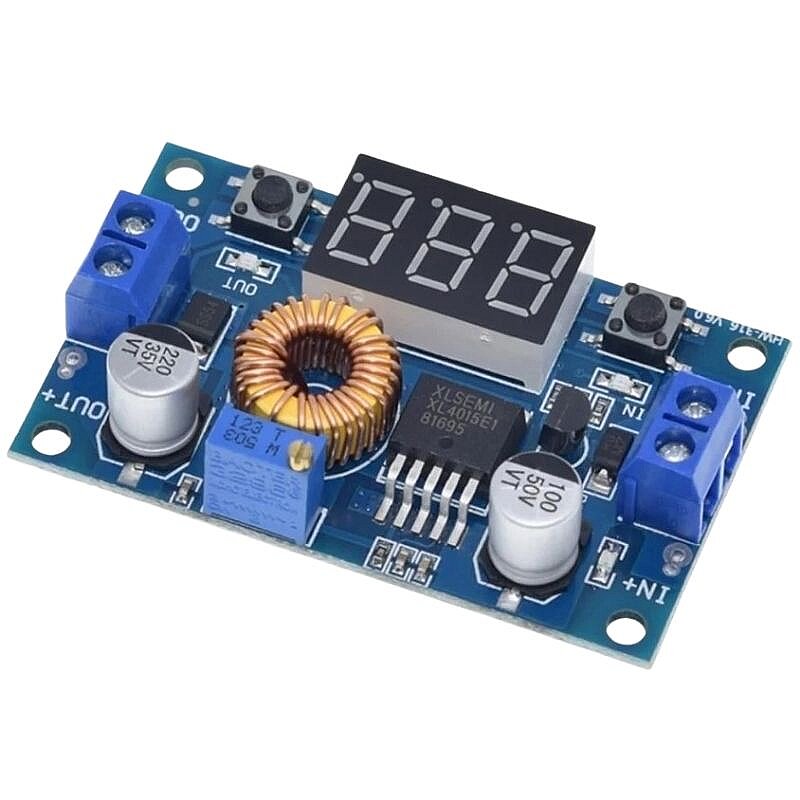

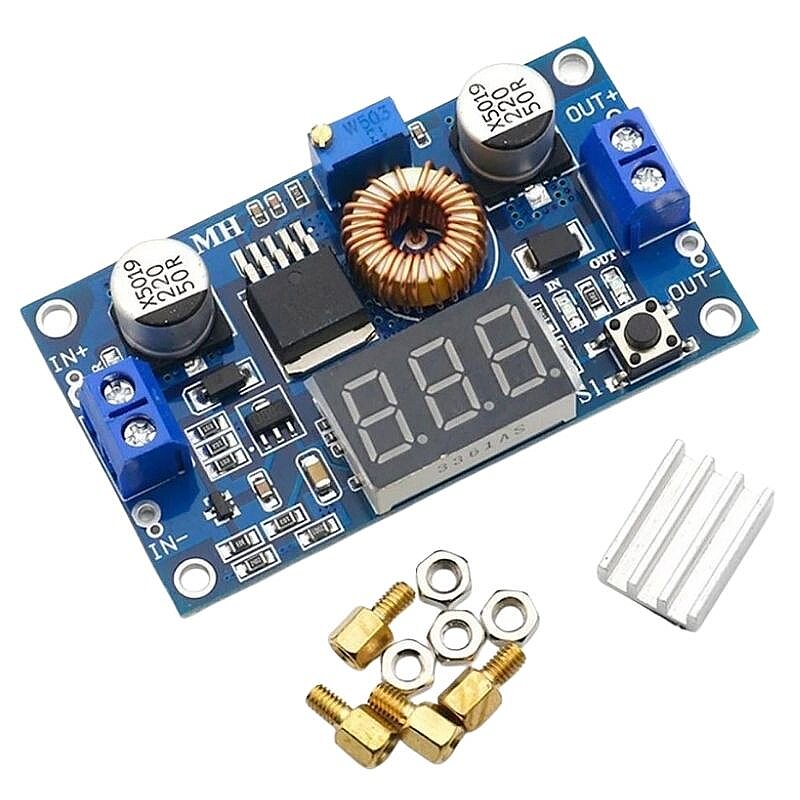

XL4015 5A Adjustable Voltage Reducer Module with Digital Display

XL4015 5A Adjustable Voltage Reducer Module with Digital Display

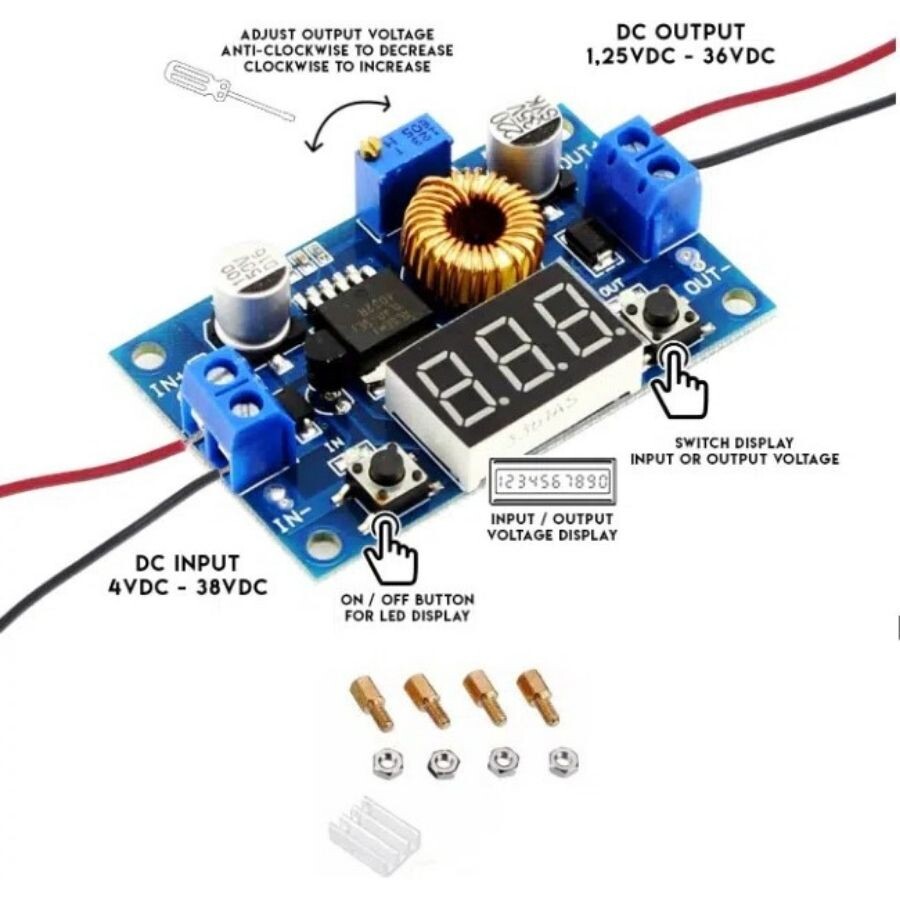

XL4015 5A Adjustable Voltage Reducer Module with Digital Display, XL4015 integrated voltage reducer regulator card. Output voltage and amperage can be adjusted by means of the trimpots on it. It is a module that can gradually adjust the input voltage and output voltage and display it on its digital display. The input voltage is 4-38V and the output voltage is reduced to 1.25V-36V by means of the trimpot on the card. This product also has overheat protection and short circuit protection.

Features

• Input voltage range: 4VDC – 38VDC
  (Note: Input voltage should not exceed 38V / Input voltage should be at least 1.5V higher than the desired output)
• Output voltage range: 1.25VDC – 36VDC adjustable
• Output current: 0 – 5A
  (4.5A or less is recommended for long-term stable use)
• Output power: 75W
• Voltmeter range: 4V to 40V, error ±0.1V
• Operating frequency: 180KHz
• Efficiency: High efficiency up to 96%
• Dimensions 66mm x 39mm x 18mm
