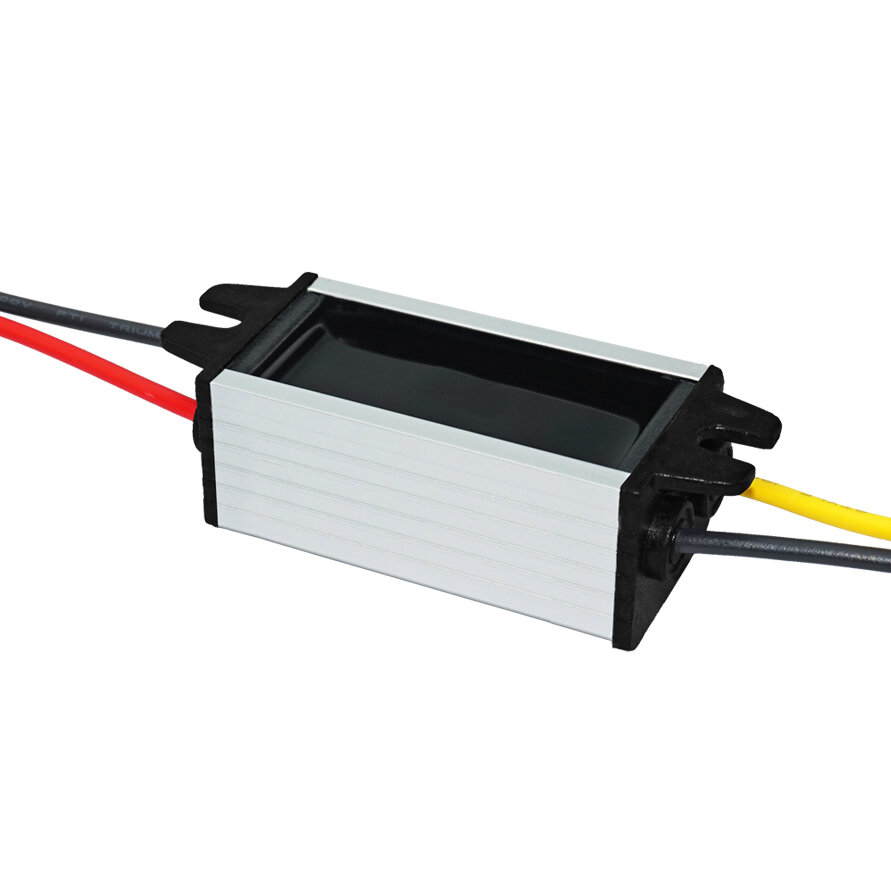

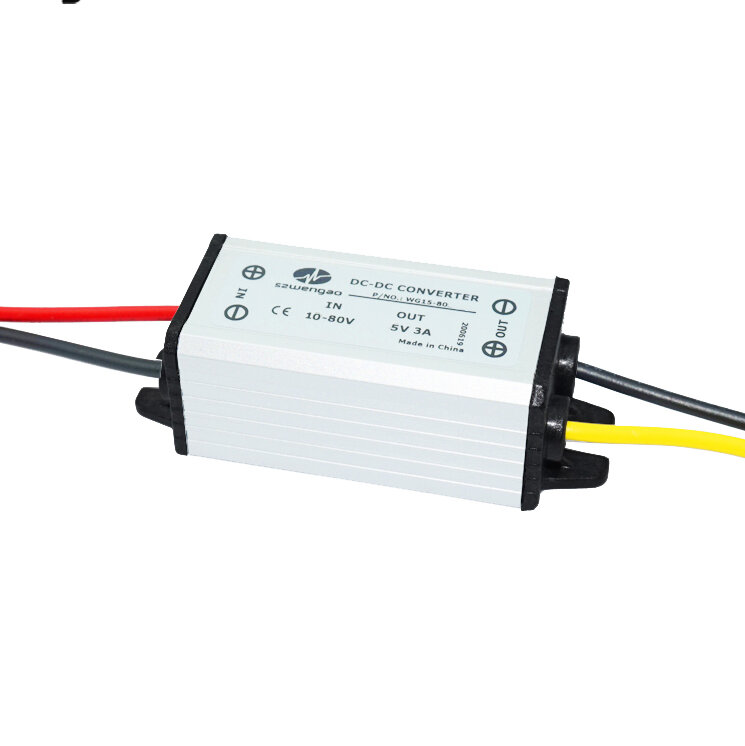

WG10-80S0503 DC-DC 10-80V to 5V 3A Voltage Reducer Module

WG10-80S0503 DC-DC 10-80V to 5V 3A Voltage Reducer Module

The WG10-80S0503 DC-DC 10-80V to 5V 3A Voltage Reducer Module is an industrial power converter designed to convert high DC input voltages to lower DC output voltages stably and safely.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Application Areas

• Vehicle electronics (cars, forklifts, golf carts)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunication equipment
• Marine applications (boat, yacht)
• LED and low-voltage electronic systems
• Medical and field devices

Features

• Model: WG10-80S0503
• Supply Voltage: 10-80V DC
• Conversion Efficiency: 91%
• Output Voltage: 5V DC
• Output Current: 3A maximum
• Output Power: 15W
• Error Margin: <1%
• IP Rating: IP68
• Short Circuit Protection
• Overcurrent Protection
• Cable Thickness: 22AWG
• Weight: approx. 50g
