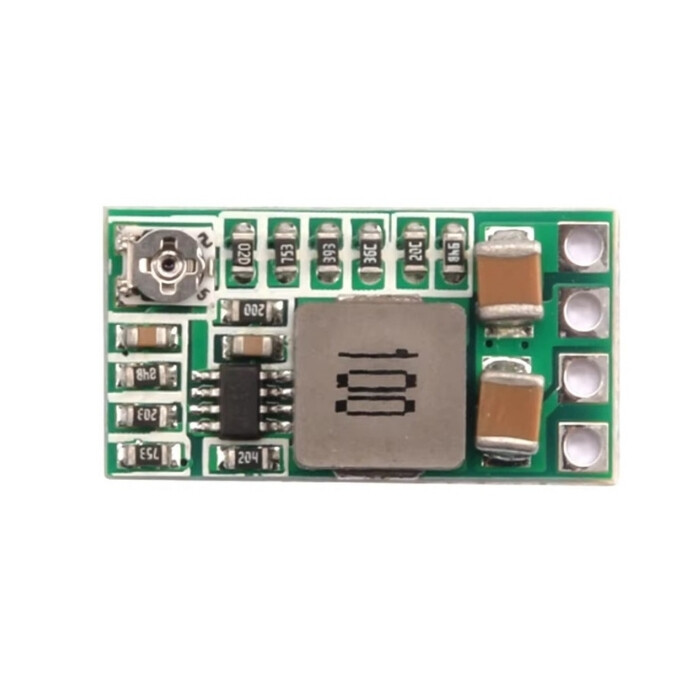

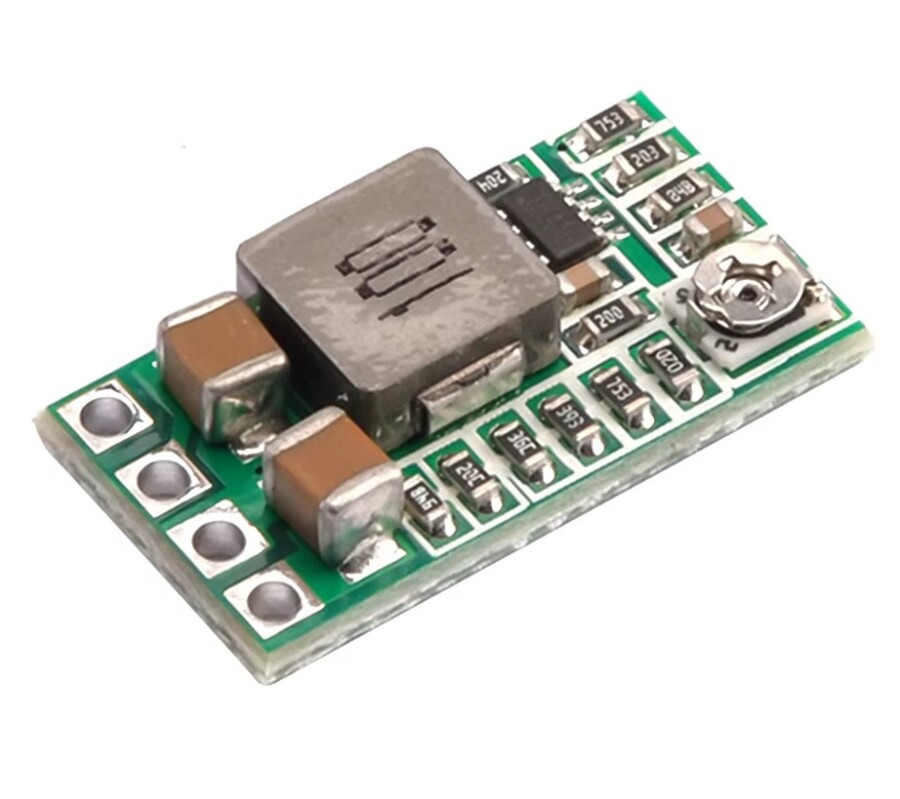

MP2315 1.5A Adjustable Voltage Reducer Module is a small-sized voltage reducer resistant to 1.5 amps. It can reduce the 4.5-24VDC input voltage to 0.8 - 22V values ​​​​adjustably. It gives a fixed output. The fixed output part adjusted afterward can be adjusted to a fixed voltage of 1.8, 2.5, 3.3, 5, 9 and 12V.

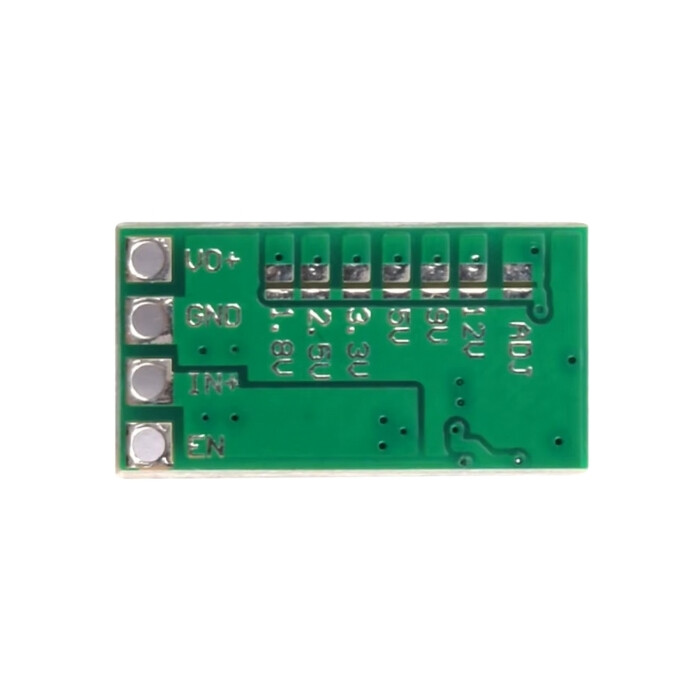

Important warning: If you are going to use fixed voltage, the pcb connection on the ADJ pad in the circuit

is cut. Afterwards, the pad for the desired fixed output can be used by short-circuiting.

Features

• Integrated: MP2315
• Input voltage: DC  4.5 / 24V
• Output voltage adjustable:   Dc 0.8 / 22V
• Output voltage constant:    1.8V 2.5V 3.3V 5V 9V 12V
• Output current: 1.5A  /  Short-time 2A
• Switching frequency: 500KHz
• Noise: 30mV
• Efficiency: 97% (Maximum)
• Short circuit protection
• Working temperature: -20C  +85C
• Dimensions: 20x11x5mm
