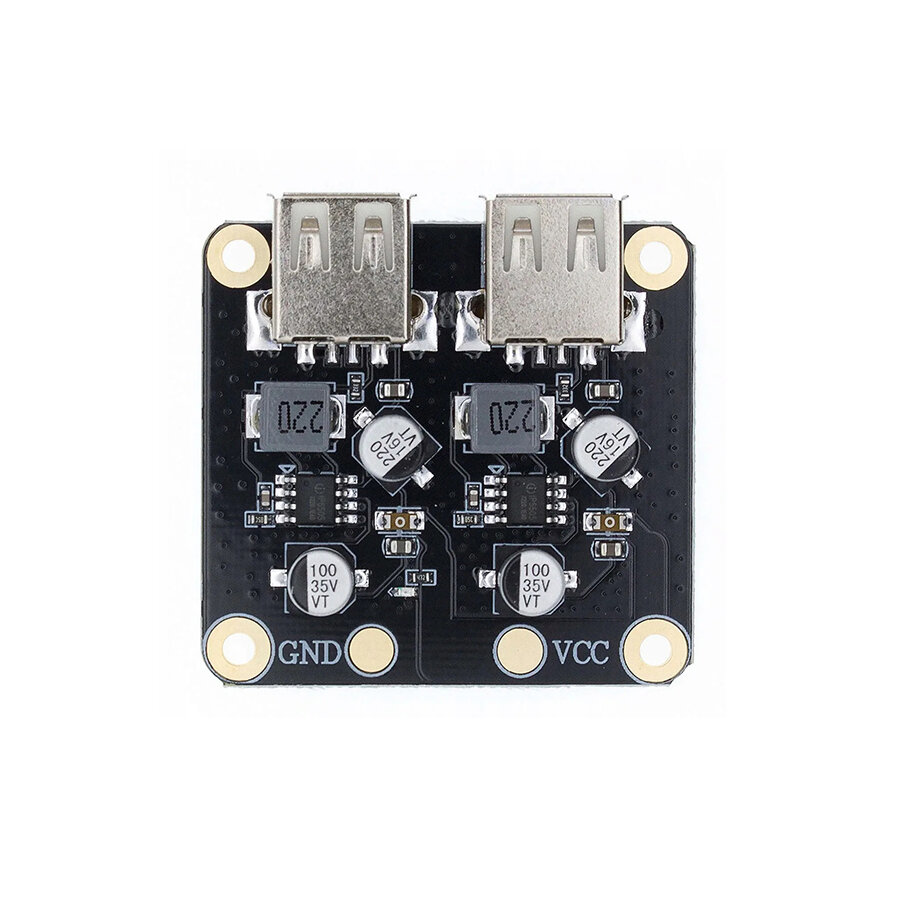

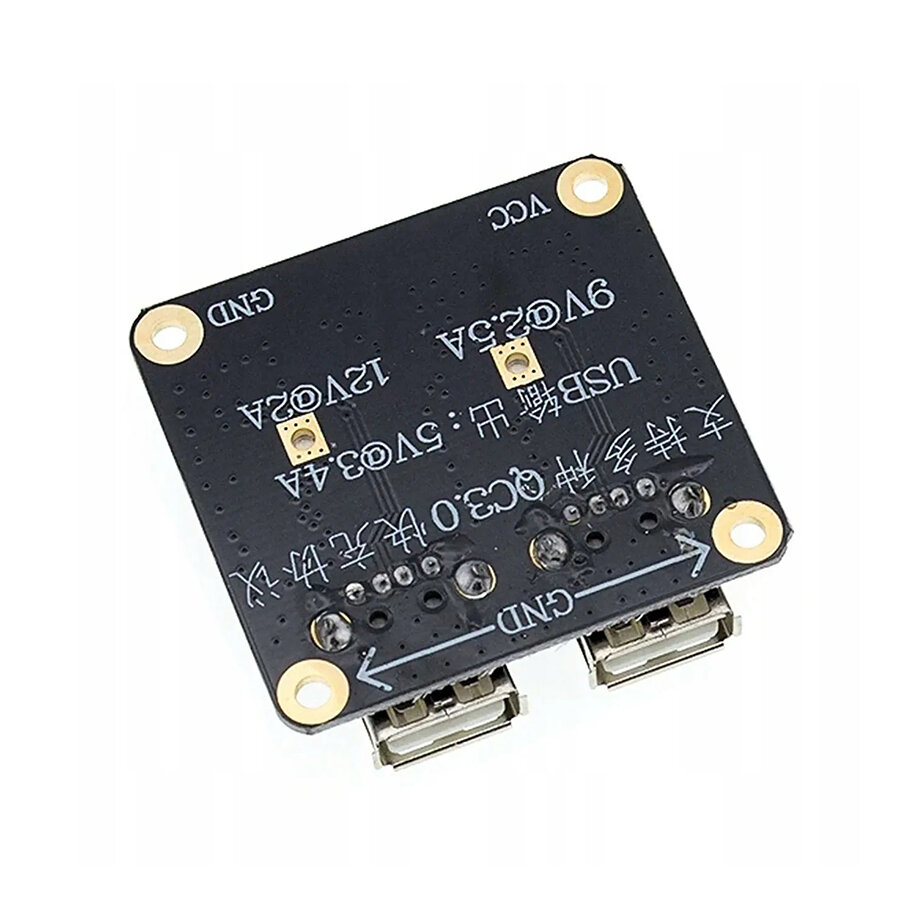

Qualcomm Q3.0 Type C 4.5-32V 2-Channel Fast Charging Circuit

Qualcomm Q3.0 Type C 4.5-32V 2-Channel Fast Charging Circuit

Qualcomm Q3.0 Type C 4.5-32V 2-Channel Fast Charging Circuit. This charging module, featuring two USB ports, supports QC 2.0 and QC 3.0 fast charging technologies, allowing devices to be charged between 5V and 12V. Ideal for use at home, in the office, or on the go.

Features

• Supply Voltage: 4.5-32VDC (Input voltage must always be higher than output voltage)
• Output Voltage: 3-12VDC (Automatically adjusted according to fast charging protocol)
• Output Power: 24W
  • 4V 3.6A
  • 5V 3.4A
  • 9V 2.5A
  • 12V 2A
• Supported Protocols;
  • Qualcomm QC2.0, QC3.0
  • MTK PE1.1/PE2.0
  • Huawei Fast Charge Protocol FCP
  • Samsung Fast Charge Protocol AFC
  • Spreadtrum Fast Charge Protocol SFCP
  • BC1.2
