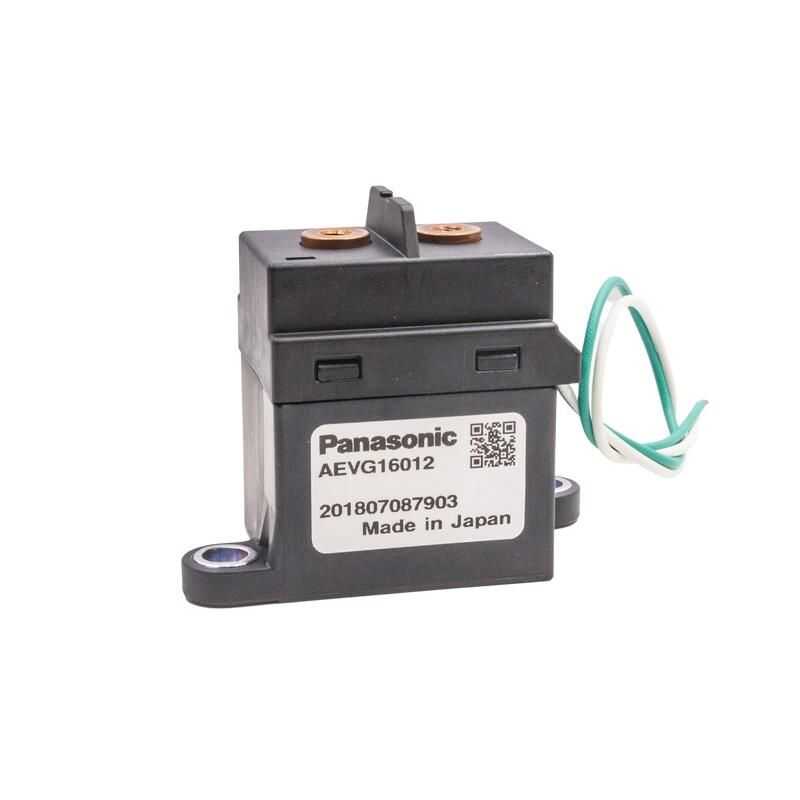

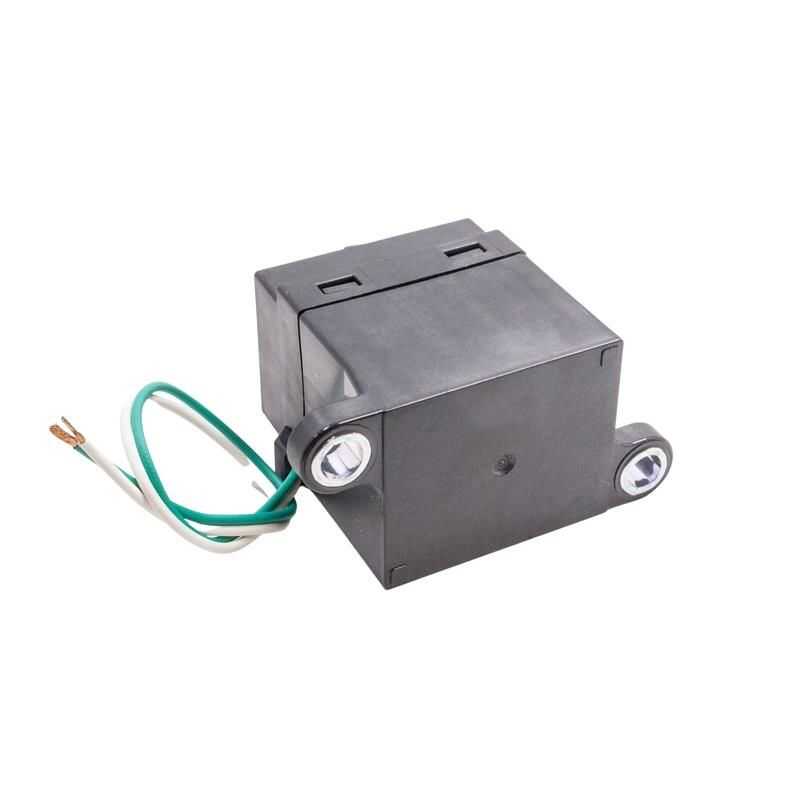

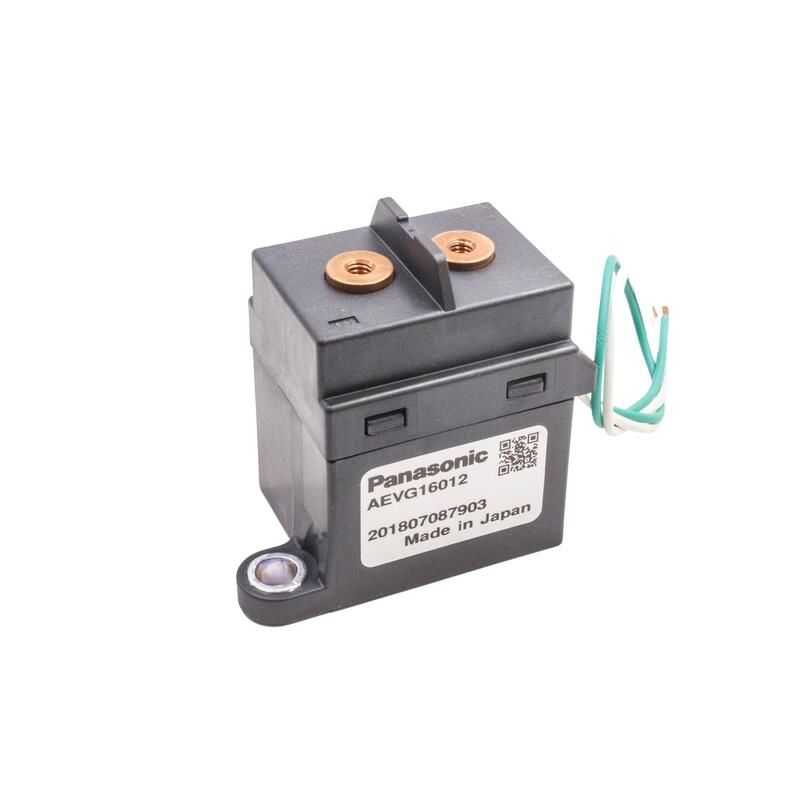

AEVG16012 DC 12V 60A Relay - Automotive Relay

AEVG16012 main contactors provide fast and reliable switching of high voltage battery to the vehicle system in hybrid and electric vehicles. High. Voltage contactors provide current switching capabilities in harsh environments without oxidation or contamination of contacts during extended periods of non-operation. The AEVG16012 contactor is designed with an optional built-in microcontroller or timer-based coil economizer.

Specifications:

Coil Magnetic System: Monostable, DC
Coil Resistance (Ω): 3.14
Contact Switching Voltage (Max) (VDC): 450
Rated Coil Voltage (VDC): 12
Rated Voltage (VDC): 450
Contact Limiting Breaking Current (A): 1560
Insulation Between Contacts and Coil Initial Dielectric (Vrms): 2500
Economy Coil Power Rating (Min) (mW): 1600
Insulation Initial Dielectric Between Open Contacts (Vrms): 2500
Insulation Between Coil and Contact Class Initial Dielectric Class (V): 2000

Areas of Use

DC high voltage - high current applications
For hybrid, fully battery electric vehicles and fuel cell cars main contactors
Battery charging system
MKBMS Battery Management System
Forklift

AEVG16012
