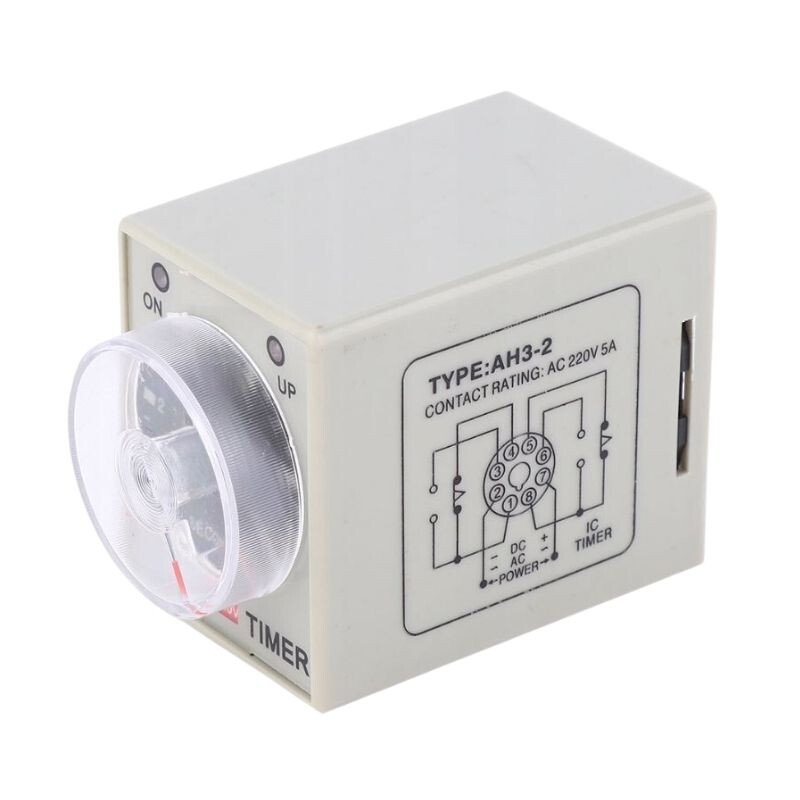

AH3-2 AC 220V Delayed DPDT Digital Time Relay - 30M

AH3-2 AC 220V Delayed DPDT Digital Time Relay - 30M. It is a delayed time relay that can be adjusted between 0 and 30 minutes. It is set to analog. You can make adjustments with the potency on it.

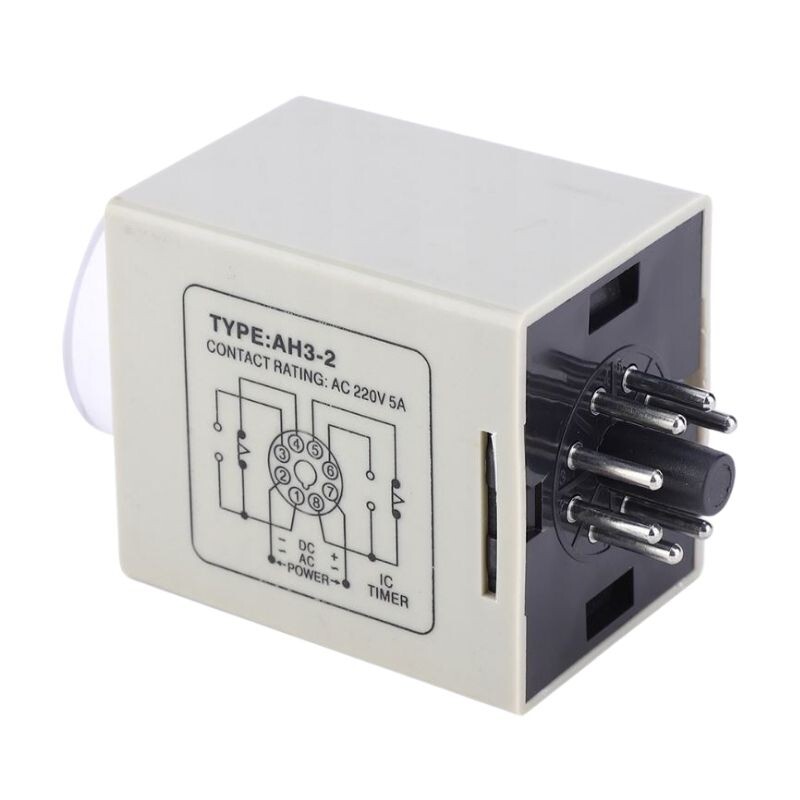

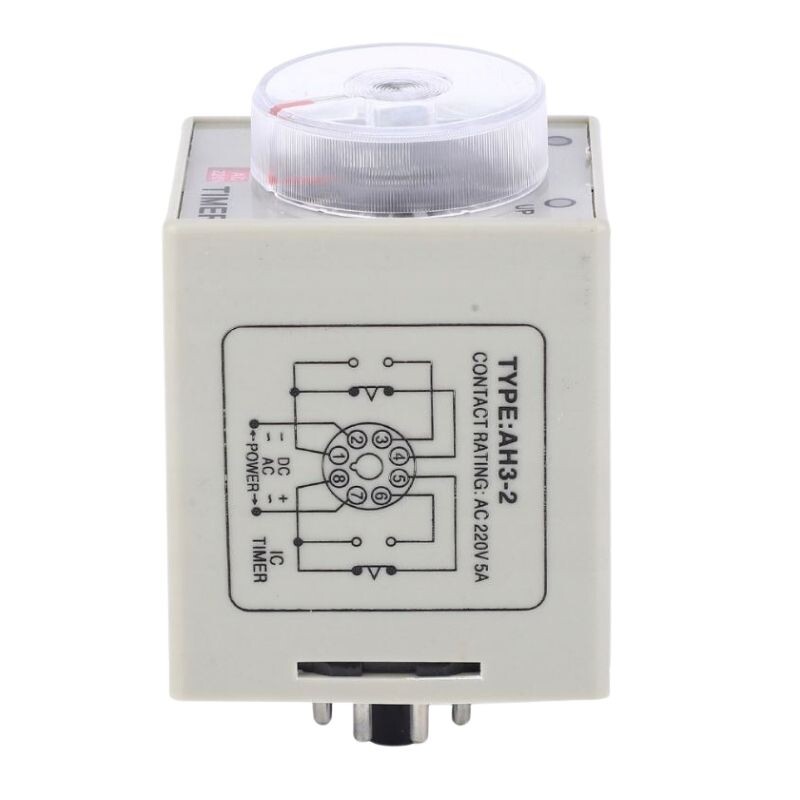

Adjustments such as delay or NO-NC contact are provided via connection. The product has 8 pins. Delay time or no-NC contact can be adjusted with different connections on 8 pins.

Visual Representation. The relay with time setting in the product title will be sent.

Datasheet

Technical Specifications

Model: AH3-2
Adjustable Time: 0-30M
Operating Voltage: 220V AC
Contact Type: DPDT
Operating Mode: On-Delay
Rated Current: 5A
Power: 2VA
Frequency: 50/60Hz
Size: 40x50x68mm
