AH3-3 AC 220V Delayed DPDT Digital Time Relay - 60S

AH3-3 AC 220V Delayed DPDT Digital Time Relay - 60S. It is a delayed time relay that can be adjusted between 0 and 60 seconds. It is analog adjustable. You can adjust it with the potentiometer on it.

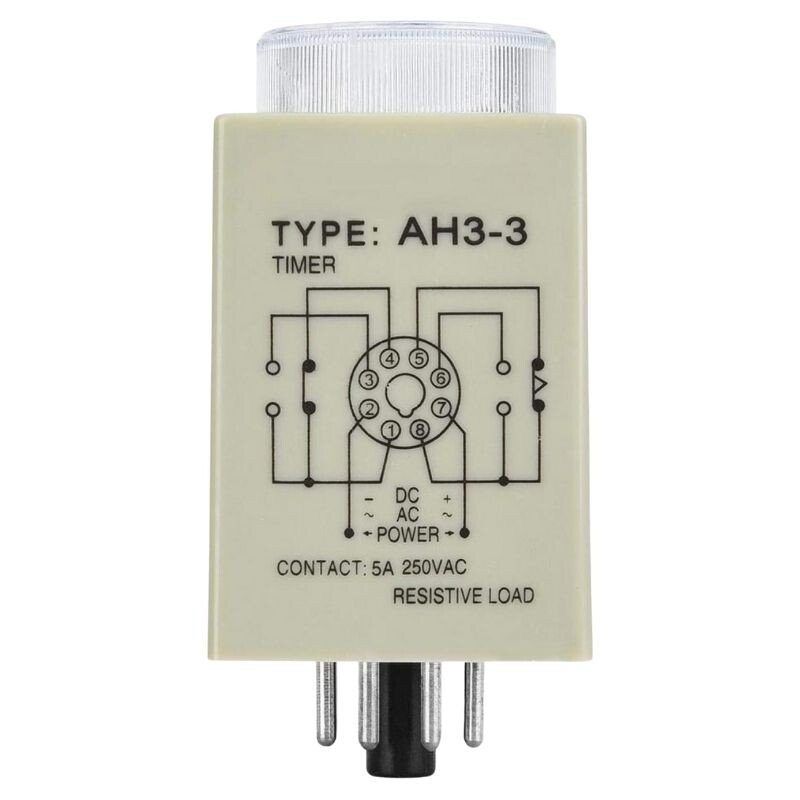

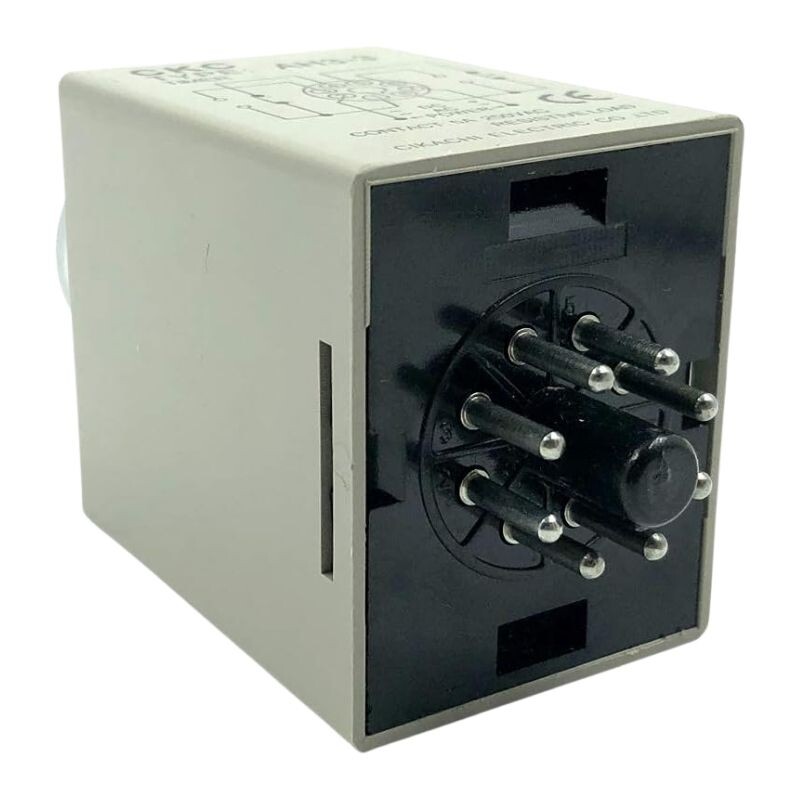

Adjustments such as delay or NO-NC contact are provided through the connection. The product has 8 pins. Delay time or no-nc contact can be adjusted with different connections on 8 pins.

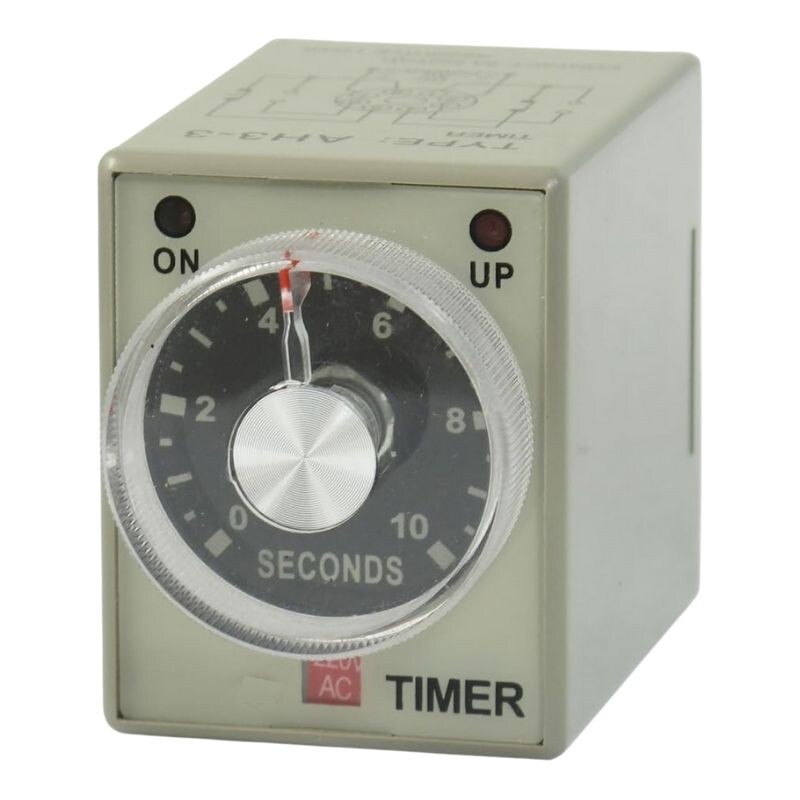

Visual Representation. The relay with the time setting in the product title will be sent.

Datasheet

Technical Specifications

Model: AH3-3
Adjustable Time: 0-60S
Working Voltage: 220V AC
Contact Type: DPDT
Working Mode: On-Delay
Nominal Current: 5A
Power: 2VA
Frequency: 50/60Hz
Size: 40x50x68mm
