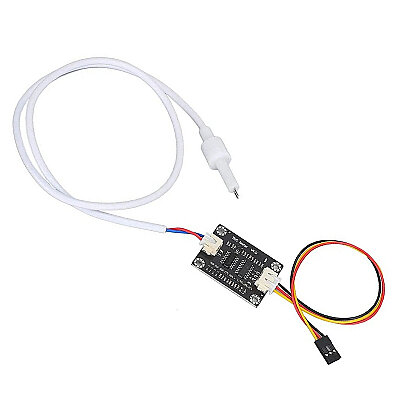

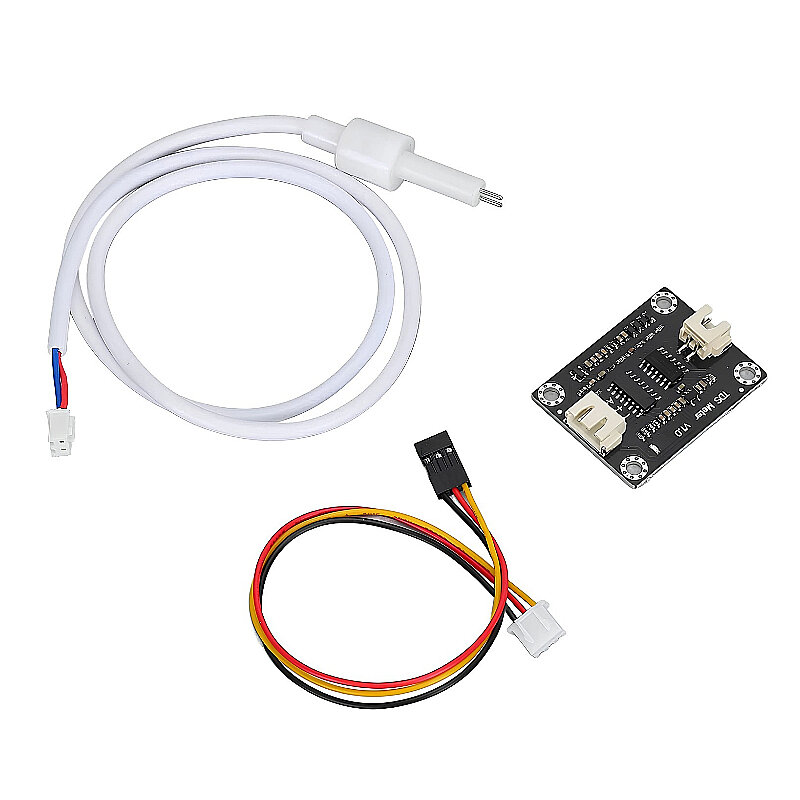

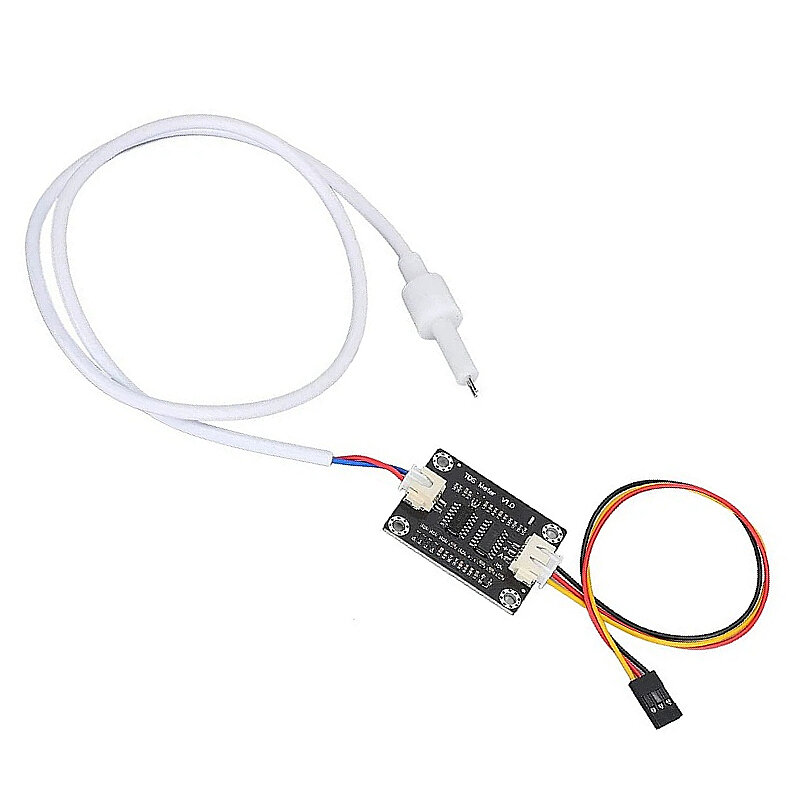

Analog TDS Meter V1.0 Water Quality Sensor
The Analog TDS Meter V1.0 is an analog output water quality sensor module designed to measure the total amount of dissolved solids in water. TDS (Total Dissolved Solids) represents the approximate quantity of minerals, salts, and similar substances dissolved in one liter of water, expressed in ppm (parts per million).
The module can measure TDS within the 0–1000 ppm range and produces an analog output voltage between 0V and 2.3V corresponding to the measurement result. This analog signal can be read by microcontrollers equipped with ADC inputs—such as Arduino, ESP32, STM32, and Raspberry Pi Pico—to calculate the TDS value.
Specifications
- Supply Voltage: 3.3–5.5V DC
- Operating Current: 3–6mA
- Measurement Unit: ppm
- TDS Measurement Range: 0–1000 ppm
- Analog Output Voltage: 0–2.3V DC
- Measurement Accuracy: ±10% F.S. @ 25°C
- Output Type: Analog
- Microcontroller Connection: Via ADC input

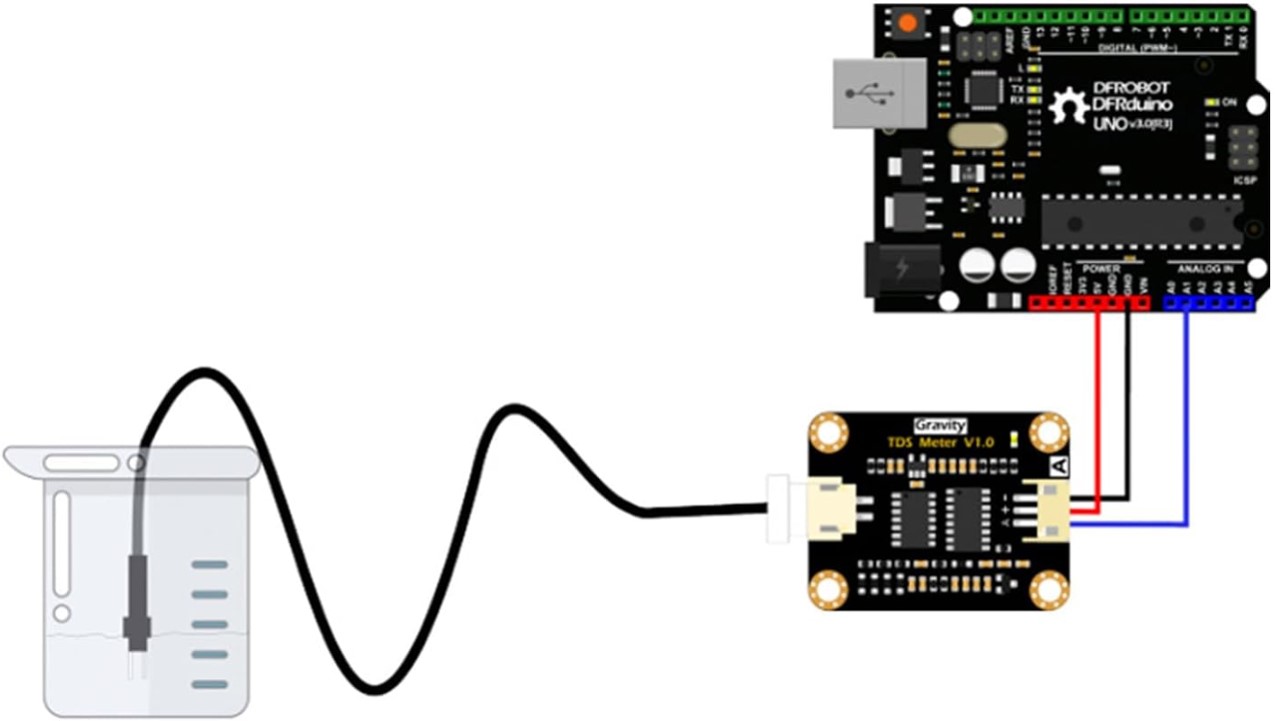

Connection Diagram
