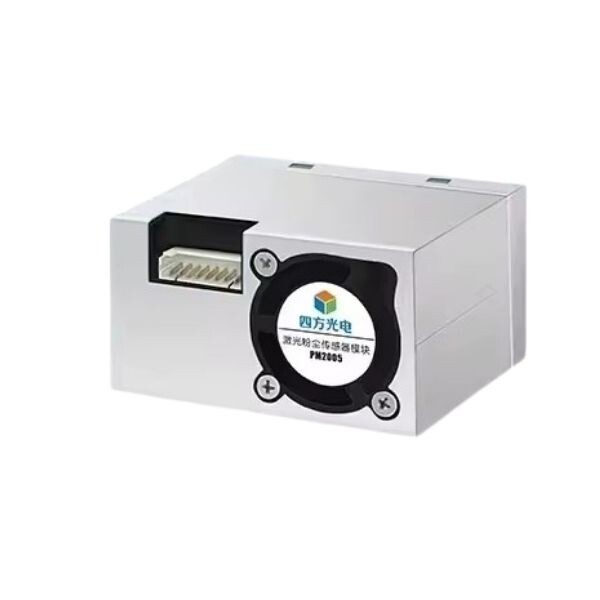

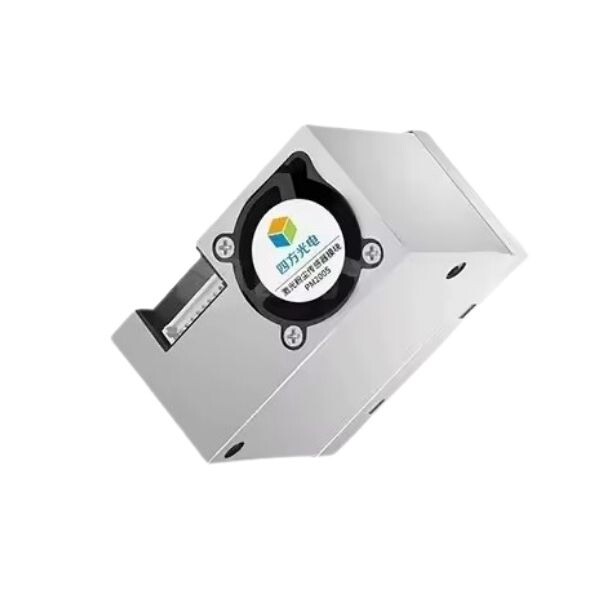

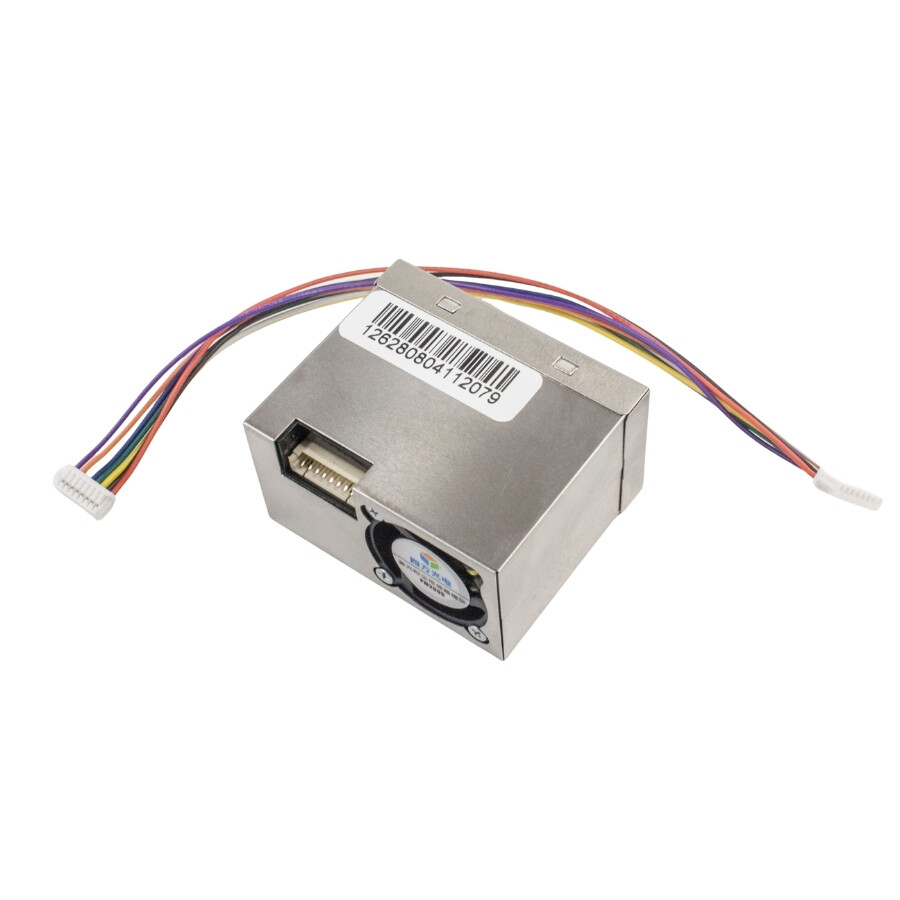

PM2005 Laser Dust Module PM2.5

PM2005 Laser Dust Module PM2.5

PM2005 Laser Dust Module PM2.5 is a common type, small-sized sensor with good selectivity and stability, using the laser scattering principle to detect dust particles in the air. Easy to use with serial port output and PWM output.

Application

Widely used in air purifiers, ventilation systems, portable devices, air quality monitoring equipment, air conditioners and smart home equipment.

Features

• Model: PM2005
• Valid range: 0~1000μg/m3
• Detection interval: 1sec
• Output: UART (3.3V)
  • I2C (3.3V - 5V)
  • PWM
• Working Voltage: 5VDC
• Working Current: <160mA
• Sleep current: <30mA
• Dimensions: 43.4x35.8x24mm
