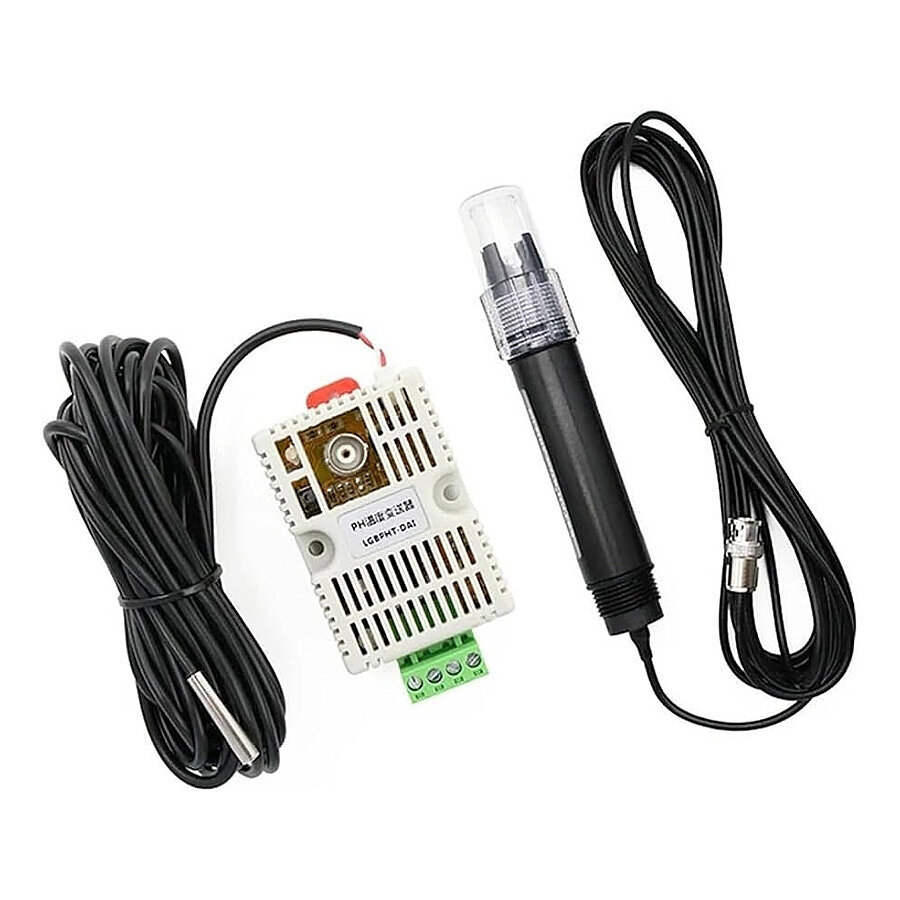

pH and Temperature Sensing RS485 Transmitter Module - Includes pH Sensor + Temperature Sensor

pH and Temperature Sensing RS485 Transmitter Module - Includes pH Sensor + Temperature Sensor

The pH and Temperature Sensing RS485 Transmitter Module—which includes both pH and temperature sensors—is a transmitter module featuring an RS485 Modbus RTU output, designed for the simultaneous measurement of pH and temperature levels in liquids.

Thanks to its RS485 output, pH and temperature data can be digitally transmitted to devices such as PLCs, HMIs, industrial controllers, data logging systems, or microcontrollers that support RS485 communication.

 RS485 output for Modbus RTU communication.

Specifications

• Supply Voltage: 12–24V DC
• Power Consumption: <1W
• Output Type: RS485
• Communication Protocol: Modbus RTU
• pH Measurement Range: 0.00–14.00 pH
• pH System Measurement Accuracy: ±0.01 pH
• Temperature Measurement Range: -20°C ~ +80°C
• Temperature Measurement Accuracy: ±0.5°C
• pH Electrode Input: BNC
• Electrode Connection Alert: Yes
• Electrode Status Check During Calibration: Yes
• Settings Memory During Power Outage: Yes
• Overcurrent Protection: Yes
• Overvoltage Protection: Yes
• Operating Environment: -20°C ~ +80°C
• pH Electrode Length: Approx. 160 mm
• pH Electrode Diameter: Approx. 25–28 mm
• Temperature Probe Cable Length: Approx. 5 m
