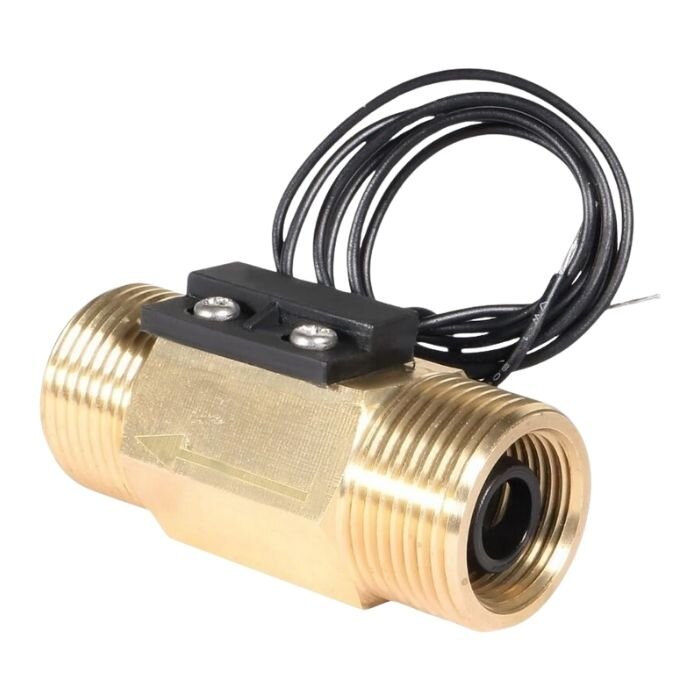

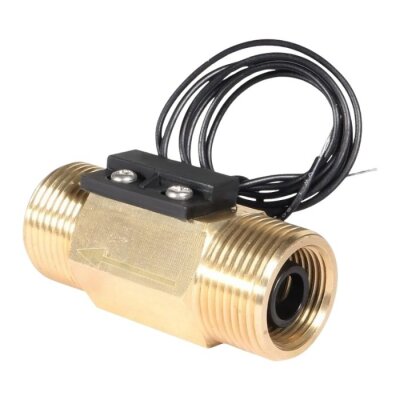

DN20 G3/4" DC 24V 10W Water Flow Sensor

DN20 G3/4" DC 24V 10W Water Flow Sensor

This DN20 G3/4" DC 24V 10W Water Flow Sensor, made of brass, is durable and long-lasting. It has a flow range of 2.5/30L. It can be used in projects such as water heaters, water dispensers, water purifiers, water vending machines, coffee machines, flow meters, water control machines, etc. It is used as a controller in water flow. Its temperature resistance is 150 degrees. It can withstand a maximum pressure of 1.7MPa.

Features

• Supply Voltage: 24VDC
• Power: 10W
• Operating Type: NO (Normally Open)
• Pressure Resistance: 1.7MPa
• Flow Range: 2.5 - 30L/min
• Usage: Water
• Temperature Resistance: 150°C
• Material: Brass
• Thread Diameter: G3/4"
• Length: 62mm
• Cable Length: 40cm
