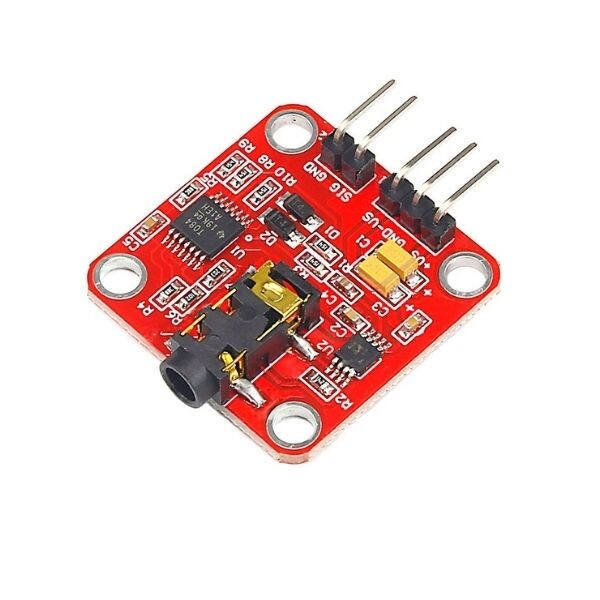

Arduino AD8232 ECG Sensor Kit

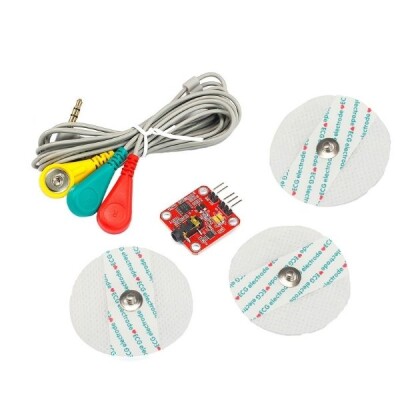

By using the AD8232 sensor with Arduino or other microcontrollers, you can measure heart rate, turn the analog data you receive into a graph, and thus obtain ECG data. There is an LED on the sensor that flashes depending on the heart rate. You can easily use it by connecting the measurement cable to the jack input on the sensor.

Note: This product is not for medical purposes, it is project based. It is not for the diagnosis or treatment of any disease.





• Operating voltage: 3.3V  ;

• Analog signal output

• Detection of disconnected cable connection

• Power off pin

• LED that lights up depending on heartbeat
