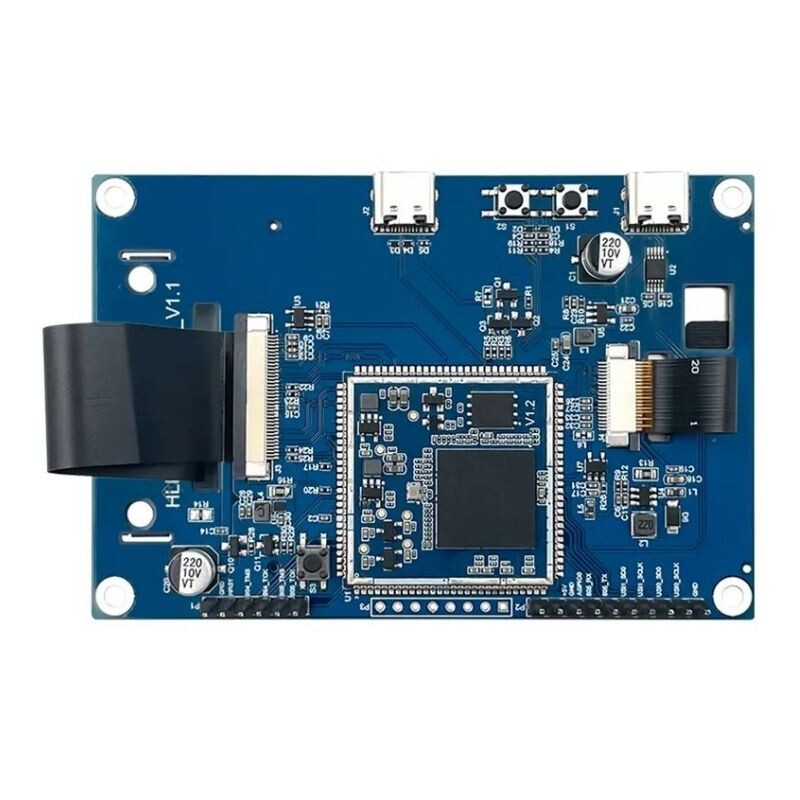

HLK-TX510 3D Face Recognition Module

HLK-TX510 3D Face Recognition Module is developed based on theartificial intelligence chip TX510, It is a module with 1.2T@8bit / 9.6T@binary AI computing power, supports mixed sensitivity, can quickly detect faces, supports 3D live detection, 3D face recognition, infrared live detection. It is a facial recognition module that has a high recognition success rate and can be widely used in sectors such as smart door locks.

Features

Supply Voltage: 5V DC
Current: 1A
Main frequency up to 400Mhz
Quick launch and comparison
Identifiable Face Capacity: 1000 Faces
Face Comparison Time: <1s
Processor: TX510
Ram: 64Mb
Flash: 16Mb
Interface: UART, USB, MIPI, I2C
Serial Port Frequency: 115200
Operating System: RTOS

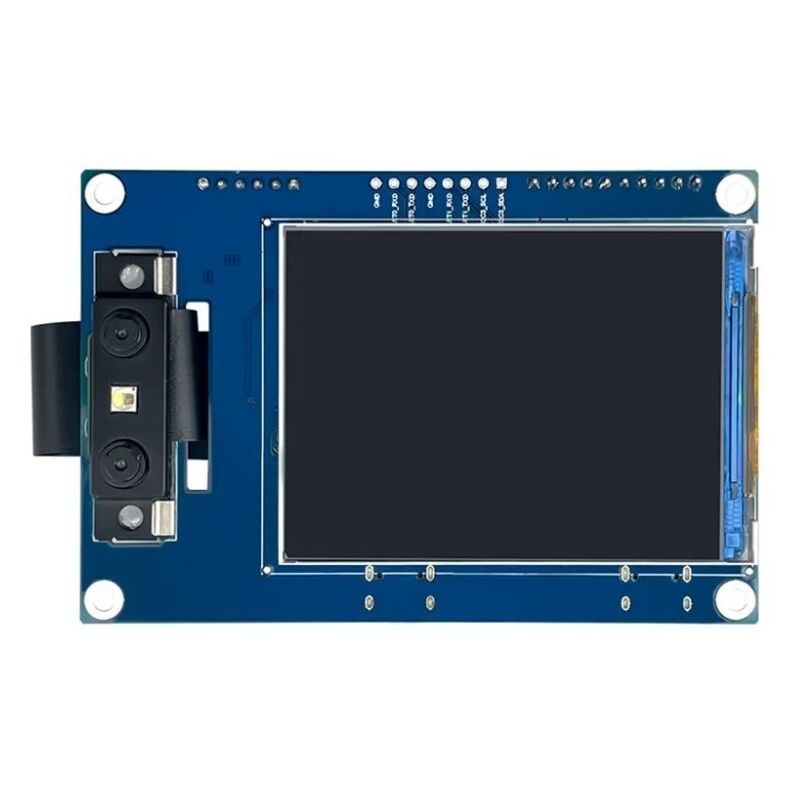

Screen and Camera Dimensions

face-recognition-camera
face-recognition-screen
