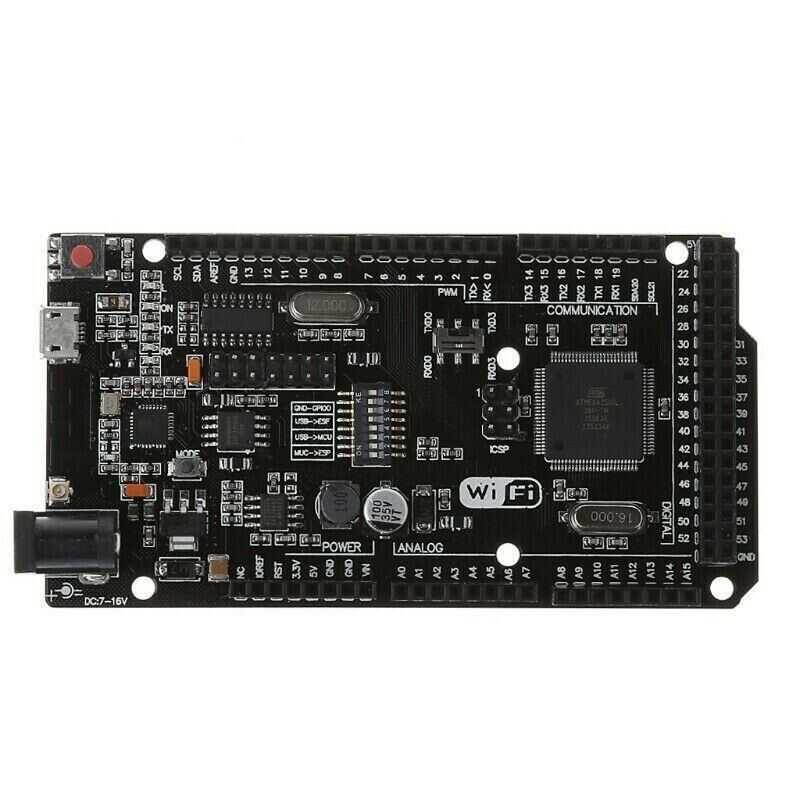

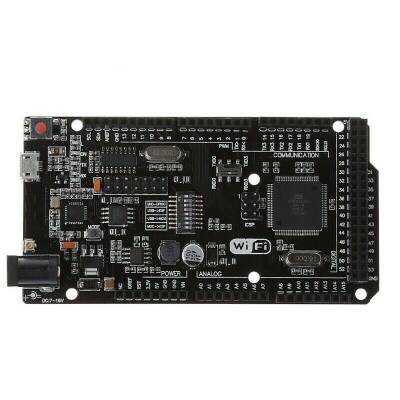

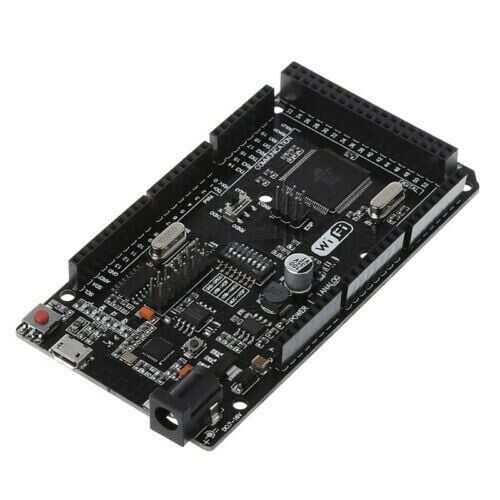

Arduino MEGA + WiFi R3 ATmega2560+ESP8266

With this Arduino Mega, which includes the ESP8266 wifi module, you will not need to buy an external wifi module. Moreover, it is the same size as the normal Arduino Mega. There is a ch340 usb converter on the card, which has an ATmega2560 integrated.

It is possible to use it in different modes with the 8-way dip switch on the card

< TR>< TD>

ON

< TD>

OFF

	1	< P>2	3	4	5	5	6	7
CH340 connected to ESP8266 (code upload)	OFF	OFF	OFF	OFF	ON	ON	Not Used
CH340 connected to ESP8266 (link)	OFF	OFF	OFF	OFF	ON	ON	OFF	Not Used
CH340 connected to ATmega2560 (code loading)	OFF	OFF	ON< /P>	ON	OFF	OFF	OFF	Not Used
CH340 connects to Mega2560 and COM3 Connected to ESP8266	ON	ON	ON	ON	OFF	OFF	OFF	Not Used
Mega2560+ESP8266	ON	ON	OFF	OFF	OFF	OFF	OFF	Not used
All modules are independent	OFF	OFF	OFF	OFF	OFF	OFF	Not used

Installation and use You can benefit from the video below.
